031-204

Active

AMPHENOL RF

CONN BNC PLUG R/A 50 OHM SOLDER

Search across all available documentation for this part.

Active

AMPHENOL RF

CONN BNC PLUG R/A 50 OHM SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	031-204	031-20 Series

Adapter Series	-	BNC to BNC, Dual
Adapter Type	-	Plug to Jack
Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	223, 141A, 55A, 142B, 58A, 55B, 142, 58, 58C, 141, 400, 142A, 58B, RG-55	223, 141A, 55A, 142B, 58A, 55B, 142, 58, 58C, 141, 400, 142A, 58B, RG-55
Center Contact Material	Brass, Beryllium Copper	Brass, Beryllium Copper
Center Contact Plating	Silver	Silver, Gold
Connector Style	BNC	BNC
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Solder	Solder
Conversion Type	-	Same Series
Convert From (Adapter End)	-	BNC Plug, Male Pin
Convert To (Adapter End)	-	BNC Jack, Female Socket (2)
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	4 GHz	4 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Includes	1 Clamp, 1 Gasket, 1 Connector, 1 Contact, 1 Braid Clamp	1 Clamp, 1 Gasket, 1 Connector, 1 Contact, 1 Braid Clamp
Ingress Protection	Weatherproof	Weatherproof
Insertion Loss	0.2 dB	0.2 dB
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Clamp	Clamp
Style	-	T-Shape
Voltage Rating	500 V	500 V

CONN BNC PLUG R/A 50 OHM SOLDER

Part	Number of Ports	Center Contact Material	Ingress Protection	Frequency - Max [Max]	Includes	Fastening Type	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Termination	Housing Color	Connector Type	Mating Cycles	Voltage Rating	Cable Group	Connector Style	Body Finish	Dielectric Material	Center Contact Plating	Impedance	Insertion Loss	Body Material	Convert From (Adapter End)	Adapter Type	Conversion Type	Style	Convert To (Adapter End)	Adapter Series
AMPHENOL RF 031-204	1	Beryllium Copper, Brass	Weatherproof	4 GHz	1 Braid Clamp, 1 Clamp, 1 Connector, 1 Contact, 1 Gasket	Bayonet Lock	Clamp	-65 ░C	165 °C	Free Hanging (In-Line), Right Angle	Solder	Silver	Male Pin, Plug	500	500 V	141, 141A, 142, 142A, 142B, 223, 400, 55A, 55B, 58, 58A, 58B, 58C, RG-55	BNC	Nickel	Polytetrafluoroethylene (PTFE)	Silver	50 Ohms	0.2 dB	Brass
AMPHENOL RF 031-208-1051		Beryllium Copper, Brass		4 GHz		Bayonet Lock		-65 ░C	165 °C	Free Hanging (In-Line)				500				Nickel	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms		Brass	BNC Plug, Male Pin	Plug to Jack	Same Series	T-Shape	BNC Jack, Female Socket (2)	BNC to BNC, Dual

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

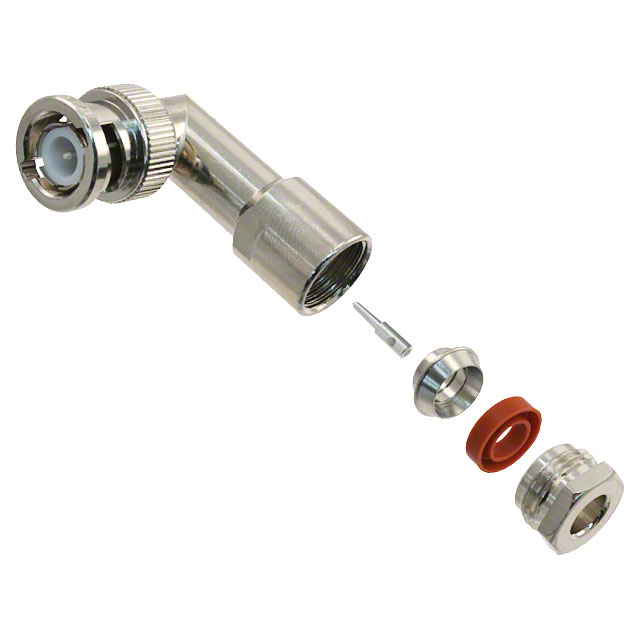

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
