J205G-10S-VCR-C12TB-DIS

Active

Whitman Controls, LLC

PRESSURE SWITCH 4-100 PSIG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

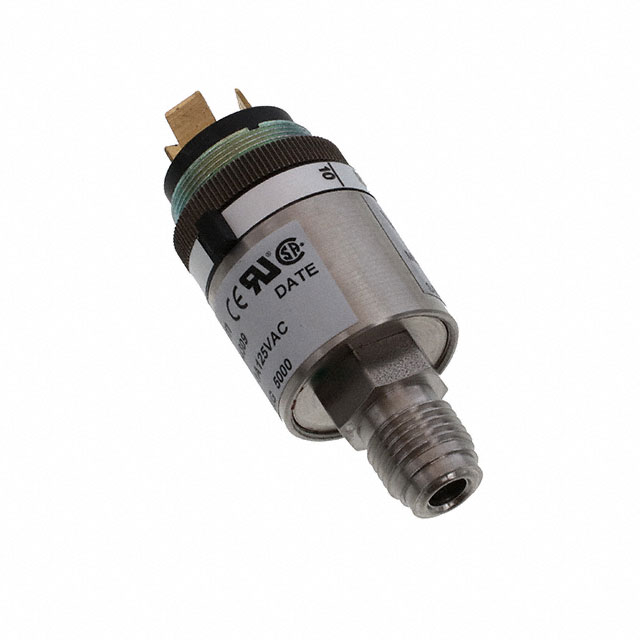

J205G-10S-VCR-C12TB-DIS

Active

Whitman Controls, LLC

PRESSURE SWITCH 4-100 PSIG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	J205G-10S-VCR-C12TB-DIS	J205G Series

Accuracy	4 PSI	0.8 - 40 PSI
Accuracy	27.58 kPa	5.52 - 275.79 kPa
Accuracy	-	68.95 kPa
Maximum Pressure [Max]	5000 PSI	5000 PSI
Maximum Pressure [Max]	34473.79 kPa	34473.79 kPa
Operating Pressure	-	137.9 kPa
Operating Pressure	-	689.48 kPa
Operating Pressure	-	5515.81 kPa
Operating Pressure	-	800 PSI
Operating Pressure	-	100 PSI
Operating Pressure [Max]	100 PSI	20 - 500 PSI
Operating Pressure [Max]	689.48 kPa	344.74 - 3447.38 kPa
Operating Pressure [Min]	4 PSI	1.2 - 20 PSI
Operating Pressure [Min]	27.58 kPa	8.27 - 137.9 kPa
Operating Temperature [Max]	107 °C	107 °C
Operating Temperature [Min]	-54 °C	-54 °C
Output Type	SPDT	SPDT
Package / Case	Cylinder, Threaded	Cylinder, Threaded
Port Size	0.25 "	0.125 - 0.25 "
Port Size	VCR®, Male	Male, VCR®
Port Size	6.35 mm	3.18 - 6.35 mm
Port Style	Threaded	Threaded
Pressure Type	Switch	Switch
Termination Style	Quick Connect - 0.250" (6.3mm)	Screw Terminal, Wire Leads, Quick Connect - 0.250" (6.3mm)

J205G Series

PRESSURE SWITCH 1.2-20 PSIG

Part	Output Type	Accuracy	Accuracy	Termination Style	Pressure Type	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Max]	Port Size	Port Size	Port Size	Maximum Pressure [Max]	Maximum Pressure [Max]	Package / Case	Port Style	Operating Temperature [Min]	Operating Temperature [Max]	Operating Pressure [Max]	Accuracy	Operating Pressure [Min] [x]	Operating Pressure [Max] [x]	Operating Pressure [Max] [x]	Operating Pressure [Min] [x]
Whitman Controls, LLC J205G-2S-C52TS-DIS	SPDT	0.8 PSI	5.52 kPa	Screw Terminal	Switch	1.2 PSI	137.9 kPa	8.27 kPa	20 PSI	0.125 "	3.18 mm	Male	5000 PSI	34473.79 kPa	Cylinder, Threaded	Threaded	-54 °C	107 °C
Whitman Controls, LLC J205G-5S-C12TS-DIS	SPDT	2 PSI	13.79 kPa	Screw Terminal	Switch	2 PSI		13.79 kPa	50 PSI	0.125 "	3.18 mm	Male	5000 PSI	34473.79 kPa	Cylinder, Threaded	Threaded	-54 °C	107 °C	344.74 kPa
Whitman Controls, LLC J205G-50S-C52L-DIS	SPDT	20 PSI	137.9 kPa	Wire Leads	Switch	20 PSI		137.9 kPa	500 PSI	0.125 "	3.18 mm	Male	5000 PSI	34473.79 kPa	Cylinder, Threaded	Threaded	-54 °C	107 °C	3447.38 kPa
Whitman Controls, LLC J205G-10S-VCR-C52TS-DIS	SPDT	4 PSI	27.58 kPa	Screw Terminal	Switch	4 PSI		27.58 kPa	100 PSI	0.25 "	6.35 mm	Male, VCR®	5000 PSI	34473.79 kPa	Cylinder, Threaded	Threaded	-54 °C	107 °C	689.48 kPa
Whitman Controls, LLC J205G-25S-VCR-C52TB-DIS	SPDT		10 PSI	Quick Connect - 0.250" (6.3mm)	Switch	10 PSI		68.95 kPa	250 PSI	0.25 "	6.35 mm	Male, VCR®	5000 PSI	34473.79 kPa	Cylinder, Threaded	Threaded	-54 °C	107 °C	1723.69 kPa	68.95 kPa
Whitman Controls, LLC J205G-10S-VCR-C12TB-DIS	SPDT	4 PSI	27.58 kPa	Quick Connect - 0.250" (6.3mm)	Switch	4 PSI		27.58 kPa	100 PSI	0.25 "	6.35 mm	Male, VCR®	5000 PSI	34473.79 kPa	Cylinder, Threaded	Threaded	-54 °C	107 °C	689.48 kPa
Whitman Controls, LLC J205G-10S-VCR-C52L-DIS	SPDT	4 PSI	27.58 kPa	Wire Leads	Switch	4 PSI		27.58 kPa	100 PSI	0.25 "	6.35 mm	Male, VCR®	5000 PSI	34473.79 kPa	Cylinder, Threaded	Threaded	-54 °C	107 °C	689.48 kPa
Whitman Controls, LLC J205G-80S-VCR-C12TS-DIS	SPDT	40 PSI	275.79 kPa	Screw Terminal	Switch					0.25 "	6.35 mm	Male, VCR®	5000 PSI	34473.79 kPa	Cylinder, Threaded	Threaded	-54 °C	107 °C			689.48 kPa	5515.81 kPa	800 PSI	100 PSI
Whitman Controls, LLC J205G-2S-VCR-C12TS-DIS	SPDT	0.8 PSI	5.52 kPa	Screw Terminal	Switch	1.2 PSI	137.9 kPa	8.27 kPa	20 PSI	0.25 "	6.35 mm	Male, VCR®	5000 PSI	34473.79 kPa	Cylinder, Threaded	Threaded	-54 °C	107 °C
Whitman Controls, LLC J205G-5S-VCR-C12L-DIS	SPDT	2 PSI	13.79 kPa	Wire Leads	Switch	2 PSI		13.79 kPa	50 PSI	0.25 "	6.35 mm	Male, VCR®	5000 PSI	34473.79 kPa	Cylinder, Threaded	Threaded	-54 °C	107 °C	344.74 kPa
