J205G-2S-C52TS-DIS

Active

Whitman Controls, LLC

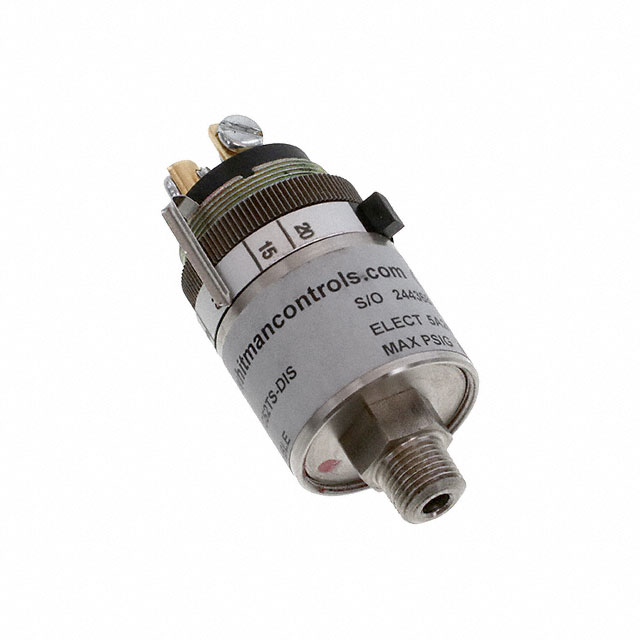

PRESSURE SWITCH 1.2-20 PSIG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

J205G-2S-C52TS-DIS

Active

Whitman Controls, LLC

PRESSURE SWITCH 1.2-20 PSIG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 175.22

Description

General part information

J205G Series

PRESSURE SWITCH 1.2-20 PSIG

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	J205G-2S-C52TS-DIS	J205G Series

Accuracy	0.8 PSI	0.8 - 40 PSI
Accuracy	5.52 kPa	5.52 - 275.79 kPa
Accuracy	-	68.95 kPa
Maximum Pressure [Max]	5000 PSI	5000 PSI
Maximum Pressure [Max]	34473.79 kPa	34473.79 kPa
Operating Pressure	-	344.74 - 3447.38 kPa
Operating Pressure	-	689.48 kPa
Operating Pressure	-	5515.81 kPa
Operating Pressure	-	800 PSI
Operating Pressure	-	100 PSI
Operating Pressure [Max]	137.9 kPa	137.9 kPa
Operating Pressure [Max]	20 PSI	20 - 500 PSI
Operating Pressure [Min]	1.2 PSI	1.2 - 20 PSI
Operating Pressure [Min]	8.27 kPa	8.27 - 137.9 kPa
Operating Temperature [Max]	107 °C	107 °C
Operating Temperature [Min]	-54 °C	-54 °C
Output Type	SPDT	SPDT
Package / Case	Cylinder, Threaded	Cylinder, Threaded
Port Size	0.125 "	0.125 - 0.25 "
Port Size	3.18 mm	3.18 - 6.35 mm
Port Size	Male	Male, VCR®
Port Style	Threaded	Threaded
Pressure Type	Switch	Switch
Termination Style	Screw Terminal	Screw Terminal, Wire Leads, Quick Connect - 0.250" (6.3mm)

J205G Series

PRESSURE SWITCH 1.2-20 PSIG

Part	Output Type	Accuracy	Accuracy	Termination Style	Pressure Type	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Max]	Port Size	Port Size	Port Size	Maximum Pressure [Max]	Maximum Pressure [Max]	Package / Case	Port Style	Operating Temperature [Min]	Operating Temperature [Max]	Operating Pressure [Max]	Accuracy	Operating Pressure [Min] [x]	Operating Pressure [Max] [x]	Operating Pressure [Max] [x]	Operating Pressure [Min] [x]
Whitman Controls, LLC J205G-2S-C52TS-DIS	SPDT	0.8 PSI	5.52 kPa	Screw Terminal	Switch	1.2 PSI	137.9 kPa	8.27 kPa	20 PSI	0.125 "	3.18 mm	Male	5000 PSI	34473.79 kPa	Cylinder, Threaded	Threaded	-54 °C	107 °C
Whitman Controls, LLC J205G-5S-C12TS-DIS	SPDT	2 PSI	13.79 kPa	Screw Terminal	Switch	2 PSI		13.79 kPa	50 PSI	0.125 "	3.18 mm	Male	5000 PSI	34473.79 kPa	Cylinder, Threaded	Threaded	-54 °C	107 °C	344.74 kPa
Whitman Controls, LLC J205G-50S-C52L-DIS	SPDT	20 PSI	137.9 kPa	Wire Leads	Switch	20 PSI		137.9 kPa	500 PSI	0.125 "	3.18 mm	Male	5000 PSI	34473.79 kPa	Cylinder, Threaded	Threaded	-54 °C	107 °C	3447.38 kPa
Whitman Controls, LLC J205G-10S-VCR-C52TS-DIS	SPDT	4 PSI	27.58 kPa	Screw Terminal	Switch	4 PSI		27.58 kPa	100 PSI	0.25 "	6.35 mm	Male, VCR®	5000 PSI	34473.79 kPa	Cylinder, Threaded	Threaded	-54 °C	107 °C	689.48 kPa
Whitman Controls, LLC J205G-25S-VCR-C52TB-DIS	SPDT		10 PSI	Quick Connect - 0.250" (6.3mm)	Switch	10 PSI		68.95 kPa	250 PSI	0.25 "	6.35 mm	Male, VCR®	5000 PSI	34473.79 kPa	Cylinder, Threaded	Threaded	-54 °C	107 °C	1723.69 kPa	68.95 kPa
Whitman Controls, LLC J205G-10S-VCR-C12TB-DIS	SPDT	4 PSI	27.58 kPa	Quick Connect - 0.250" (6.3mm)	Switch	4 PSI		27.58 kPa	100 PSI	0.25 "	6.35 mm	Male, VCR®	5000 PSI	34473.79 kPa	Cylinder, Threaded	Threaded	-54 °C	107 °C	689.48 kPa
Whitman Controls, LLC J205G-10S-VCR-C52L-DIS	SPDT	4 PSI	27.58 kPa	Wire Leads	Switch	4 PSI		27.58 kPa	100 PSI	0.25 "	6.35 mm	Male, VCR®	5000 PSI	34473.79 kPa	Cylinder, Threaded	Threaded	-54 °C	107 °C	689.48 kPa
Whitman Controls, LLC J205G-80S-VCR-C12TS-DIS	SPDT	40 PSI	275.79 kPa	Screw Terminal	Switch					0.25 "	6.35 mm	Male, VCR®	5000 PSI	34473.79 kPa	Cylinder, Threaded	Threaded	-54 °C	107 °C			689.48 kPa	5515.81 kPa	800 PSI	100 PSI
Whitman Controls, LLC J205G-2S-VCR-C12TS-DIS	SPDT	0.8 PSI	5.52 kPa	Screw Terminal	Switch	1.2 PSI	137.9 kPa	8.27 kPa	20 PSI	0.25 "	6.35 mm	Male, VCR®	5000 PSI	34473.79 kPa	Cylinder, Threaded	Threaded	-54 °C	107 °C
Whitman Controls, LLC J205G-5S-VCR-C12L-DIS	SPDT	2 PSI	13.79 kPa	Wire Leads	Switch	2 PSI		13.79 kPa	50 PSI	0.25 "	6.35 mm	Male, VCR®	5000 PSI	34473.79 kPa	Cylinder, Threaded	Threaded	-54 °C	107 °C	344.74 kPa
