14-823-90

Active

Aries Electronics

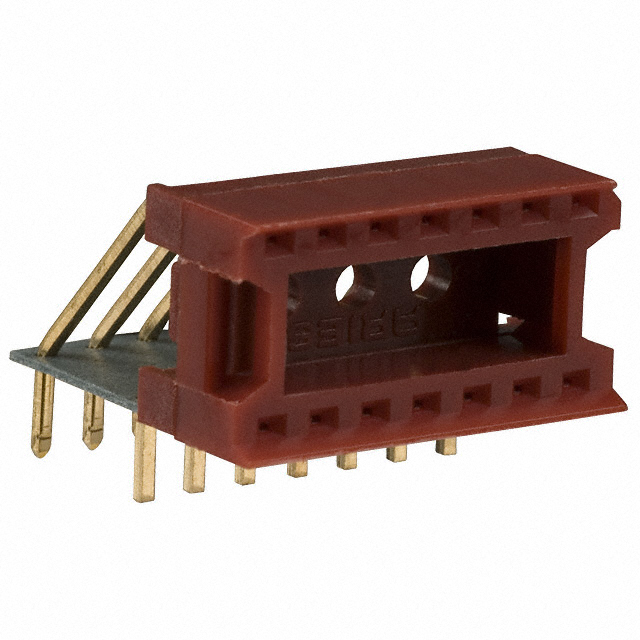

CONN IC DIP SOCKET 14POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

14-823-90

Active

Aries Electronics

CONN IC DIP SOCKET 14POS GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	14-823-90

Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Material - Mating	Phosphor Bronze
Contact Material - Post	Phosphor Bronze
Current Rating (Amps)	1.5 A
Features	Closed Frame
Housing Material	Polyamide (PA46), Nylon 4/6
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid)	14
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	0.145 "
Termination Post Length	3.68 mm
Type	0.3 "
Type	7.62 mm
Type	DIP

14-823 Series

Part	Termination	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material - Mating	Pitch - Post	Pitch - Post	Type	Type	Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination Post Length	Termination Post Length	Material Flammability Rating	Current Rating (Amps)	Contact Finish - Post	Number of Positions or Pins (Grid)	Housing Material	Contact Material - Post	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material - Post [custom]
Aries Electronics 14-823-90T	Solder	Closed Frame	200 µin	5.08 µm	Phosphor Bronze	2.54 mm	0.1 in	0.3 "	7.62 mm	DIP	0.1 in	2.54 mm	5.08 µm	200 µin	0.145 "	3.68 mm	UL94 V-0	1.5 A	Tin	14	Polyamide (PA46) Nylon 4/6	Phosphor Bronze
Aries Electronics 14-823-90TWR	Solder	Closed Frame	200 µin	5.08 µm	Phosphor Bronze	2.54 mm	0.1 in	0.3 "	7.62 mm	DIP	0.1 in	2.54 mm	5.08 µm	200 µin	0.145 "	3.68 mm	UL94 V-0	1.5 A	Tin	14	Polyamide (PA46) Nylon 4/6	Phosphor Bronze
Aries Electronics 14-823-90	Solder	Closed Frame	10 çin	0.25 çm	Phosphor Bronze	2.54 mm	0.1 in	0.3 "	7.62 mm	DIP	0.1 in	2.54 mm	0.25 çm	10 çin	0.145 "	3.68 mm	UL94 V-0	1.5 A	Gold	14	Polyamide (PA46) Nylon 4/6	Phosphor Bronze	Gold
Aries Electronics 14-823-90WR	Solder	Closed Frame	10 çin	0.25 çm	Phosphor Bronze	2.54 mm	0.1 in	0.3 "	7.62 mm	DIP	0.1 in	2.54 mm	0.25 çm	10 çin	0.145 "	3.68 mm	UL94 V-0	1.5 A	Gold	14	Polyamide (PA46) Nylon 4/6	Phosphor Bronze	Gold
Aries Electronics 14-823-90C	Solder	Closed Frame	200 µin	5.08 µm	Beryllium Copper	2.54 mm	0.1 in	0.3 "	7.62 mm	DIP	0.1 in	2.54 mm	0.76 Ám	30 Áin	0.14 in	3.56 mm	UL94 V-0	3 A	Tin	14	Glass Filled Nylon 4/6 Polyamide (PA46)		Gold	105 ░C	-55 °C	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.55
		10	$ 9.64
		25	$ 8.71
		50	$ 8.09
		100	$ 7.52
		250	$ 6.84
		500	$ 6.39
		1000	$ 5.98

Description

General part information

14-823 Series

14 (2 x 7) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole, Right Angle, Horizontal
