ESD122DMXR

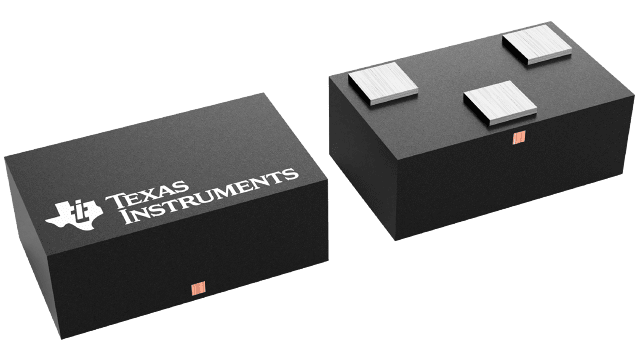

ActiveDUAL 0.2-PF, ±3.6-V, ±17-KV ESD PROTECTION DIODE FOR USB TYPE-C AND HDMI 2.0 3-X2SON -40 TO 125
Deep-Dive with AI
Search across all available documentation for this part.
ESD122DMXR
ActiveDUAL 0.2-PF, ±3.6-V, ±17-KV ESD PROTECTION DIODE FOR USB TYPE-C AND HDMI 2.0 3-X2SON -40 TO 125
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ESD122DMXR | ESD122 Series |
|---|---|---|
| Applications | HDMI, USB | HDMI, USB |
| Bidirectional Channels | 2 | 2 |
| Capacitance @ Frequency | 0.2 pF | 0.2 pF |
| Current - Peak Pulse (10/1000µs) | 2.5 A | 2.5 A |
| Function | - | Transient Voltage Suppression (TVS) |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 3-XFDFN | 3-XFDFN |
| Power - Peak Pulse | 20 W | 20 W |
| Power Line Protection | False | False |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | - | 3-X2SON |
| Supplier Device Package | - | 1.3 |
| Supplier Device Package | - | 0.6 |
| Type | Zener | Zener |
| Utilized IC / Part | - | ESD122 |
| Voltage - Breakdown (Min) [Min] | 5.1 V | 5.1 V |
| Voltage - Clamping (Max) @ Ipp | 8.4 V | 8.4 V |
| Voltage - Reverse Standoff (Typ) | 3.6 V | 3.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Arrow Electronics | N/A | 1 | $ 0.52 | |
| 10 | $ 0.37 | |||
| 25 | $ 0.37 | |||
| 100 | $ 0.26 | |||
| 250 | $ 0.26 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.16 | |||
| 3000 | $ 0.15 | |||
| CHIPMALL.COM LIMITED | N/A | 50 | $ 0.18 | |
| 150 | $ 0.18 | |||
| Chip1Stop | N/A | 5 | $ 0.41 | |
| 50 | $ 0.30 | |||
| 100 | $ 0.21 | |||
| 200 | $ 0.21 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.13 | |||
| DigiKey | N/A | 1 | $ 0.62 | |
| 10 | $ 0.43 | |||
| 100 | $ 0.29 | |||
| 500 | $ 0.23 | |||
| 1000 | $ 0.19 | |||
| 2000 | $ 0.18 | |||
| 5000 | $ 0.17 | |||
| 10000 | $ 0.16 | |||
| 20000 | $ 0.16 | |||
| Digikey | Cut Tape (CT) | 1 | $ 0.56 | |
| 10 | $ 0.48 | |||
| 100 | $ 0.33 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.21 | |||
| 2000 | $ 0.19 | |||
| 5000 | $ 0.18 | |||
| Digi-Reel® | 1 | $ 0.56 | ||
| 10 | $ 0.48 | |||
| 100 | $ 0.33 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.21 | |||
| 2000 | $ 0.19 | |||
| 5000 | $ 0.18 | |||
| Tape & Reel (TR) | 10000 | $ 0.17 | ||
| 30000 | $ 0.16 | |||
| 50000 | $ 0.16 | |||
| LCSC | N/A | 1 | $ 0.36 | |
| 1 | $ 0.36 | |||
| 10 | $ 0.29 | |||
| 10 | $ 0.29 | |||
| 30 | $ 0.26 | |||
| 30 | $ 0.26 | |||
| 100 | $ 0.22 | |||
| 100 | $ 0.22 | |||
| 500 | $ 0.21 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.20 | |||
| 1000 | $ 0.20 | |||
| Mouser Electronics | N/A | 1 | $ 0.61 | |
| 10 | $ 0.42 | |||
| 100 | $ 0.29 | |||
| 500 | $ 0.23 | |||
| 1000 | $ 0.18 | |||
| 2500 | $ 0.17 | |||
| 10000 | $ 0.16 | |||
| 20000 | $ 0.15 | |||
| Quest Components | N/A | 1 | $ 0.84 | |
| 1 | $ 0.35 | |||
| 7 | $ 0.42 | |||
| 15 | $ 0.29 | |||
| 25 | $ 0.25 | |||
| Semour Electronics Co Ltd | N/A | 1 | $ 0.13 | |
| 100 | $ 0.13 | |||
| 10000 | $ 0.13 | |||
| Texas Instruments | LARGE T&R | 1 | $ 0.34 | |
| 100 | $ 0.23 | |||
| 250 | $ 0.18 | |||
| 1000 | $ 0.12 | |||
| Verical | N/A | 39 | $ 0.37 | |
| 100 | $ 0.26 | |||
| 250 | $ 0.26 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.16 | |||
| 3000 | $ 0.15 | |||
ESD122 Series
Dual 0.2-pF, ±3.6-V, ±17-kV ESD protection diode for USB Type-C and HDMI 2.0
| Part | Bidirectional Channels | Voltage - Clamping (Max) @ Ipp | Voltage - Reverse Standoff (Typ) | Capacitance @ Frequency | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Power - Peak Pulse | Power Line Protection | Voltage - Breakdown (Min) [Min] | Type | Package / Case | Supplier Device Package | Supplier Device Package [x] | Supplier Device Package [y] | Applications | Current - Peak Pulse (10/1000µs) | Utilized IC / Part | Supplied Contents | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments ESD122DMYR | 2 | 8.4 V | 3.6 V | 0.2 pF | -40 °C | 125 °C | Surface Mount | 20 W | 5.1 V | Zener | 3-XFDFN | 3-X2SON | 1.3 | 0.6 | HDMI, USB | 2.5 A | ||||
Texas Instruments ESD122DMXR | 2 | 8.4 V | 3.6 V | 0.2 pF | -40 °C | 125 °C | Surface Mount | 20 W | 5.1 V | Zener | 3-XFDFN | HDMI, USB | 2.5 A | |||||||
Texas Instruments ESD122DMX-EVM | ESD122 | Board(s) | Transient Voltage Suppression (TVS) | |||||||||||||||||
Texas Instruments ESD122DMY-EVM | ESD122 | Board(s) | Transient Voltage Suppression (TVS) |
Description
General part information
ESD122 Series
The ESD122 is a bidirectional TVS ESD protection diode array for USB Type-C and HDMI 2.0 circuit protection. The ESD122 is rated to dissipate contact ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (17-kV Contact, 17-kV Air-gap).
This device features a low IO capacitance per channel and pin-out to suit symmetric differential high-speed signal routing making it ideal for protecting high-speed interfaces up to 10 Gbps such as USB 3.1 Gen2 and HDMI 2.0. The low dynamic resistance and low clamping voltage ensure system level protection against transient events.
Additionally, the ESD122 is an ideal ESD solution for the USB Type-C Tx/Rx lines. Since the USB Type-C connector has two layers, using 4-channel ESD devices require VIAs which degrade the signal integrity. Using four ESD122 (2-Ch) devices minimize the number of VIAs and simply the board layout.
