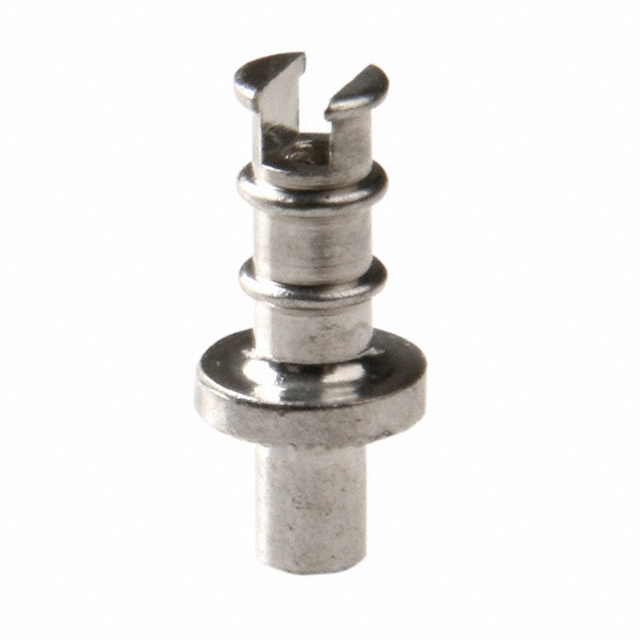

H2072 Series

Part	Mounting Type	Insulation	Flange Diameter	Contact Finish	Length - Overall	Contact Material	Staking Side OD (Min)	Staking Side OD (Max)	Length - Above Board	Terminal Type	Mounting Hole Diameter (Max)	Mounting Hole Diameter (Min)	Length - Below Flange	Diameter - Turret Head	Number of Turrets	Staking Side ID (Max)	Staking Side ID (Min)	Board Thickness	Termination	Length - Below Flange (Min)	Length - Below Flange (Max)
Harwin Inc. H2072Z01	Through Hole	Non-Insulated	0.156 in	Tin	0.351 in	Brass Alloy	0.074 in	0.079 in	0.257 in	Fork Single End	0.083 in	0.079 in	0.094 in	0.1 in	Triple	0.049 in	0.046 in	0.063 in	Swage
Harwin Inc. H2072-01	Through Hole	Non-Insulated	0.156 in	Tin	0.344 in	Brass Alloy	0.08 in	0.085 in	0.25 in	Fork Single End	0.089 in	0.085 in		0.128 in	Triple	0.06 in	0.055 in	0.063 in	Swage	0.094 in	0.099 in
Harwin Inc. H2072ZL1	Through Hole	Non-Insulated	0.156 in	Tin	0.382 in	Brass Alloy	0.074 in	0.079 in	0.257 in	Fork Single End	0.083 in	0.079 in	0.125 in	0.1 in	Triple	0.048 in	0.046 in	0.094 in	Swage
