H2072Z01

Active

Harwin Inc.

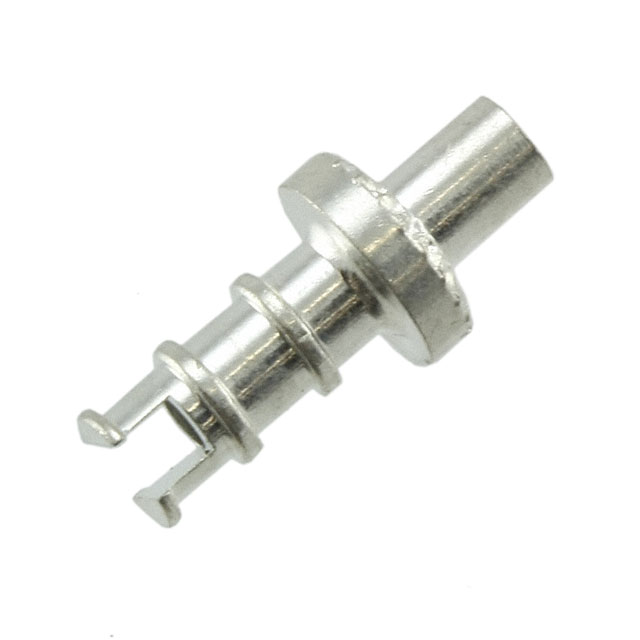

TERMINAL, TURRET, 2.11MM, NON INSULATED

Deep-Dive with AI

Search across all available documentation for this part.

Documents3D Product Image EN Technical Data Sheet EN +1

H2072Z01

Active

Harwin Inc.

TERMINAL, TURRET, 2.11MM, NON INSULATED

Deep-Dive with AI

Documents3D Product Image EN Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	H2072Z01

Board Thickness	1.6 mm
Board Thickness	0.063 in
Contact Finish	Tin
Contact Material	Brass Alloy
Diameter - Turret Head [diameter]	2.54 mm
Diameter - Turret Head [diameter]	0.1 in
Flange Diameter [diameter]	3.96 mm
Flange Diameter [diameter]	0.156 in
Insulation	Non-Insulated
Length - Above Board [x]	6.52 mm
Length - Above Board [x]	0.257 in
Length - Below Flange [x]	0.094 in
Length - Below Flange [x]	2.39 mm
Length - Overall	0.351 in
Length - Overall	8.91 mm
Mounting Hole Diameter [Max]	0.083 "
Mounting Hole Diameter [Max]	2.11 mm
Mounting Hole Diameter [Min]	0.079 "
Mounting Hole Diameter [Min]	2.01 mm
Mounting Type	Through Hole
Number of Turrets	Triple
Staking Side ID [Max]	1.24 mm
Staking Side ID [Max]	0.049 in
Staking Side ID [Min]	0.046 in
Staking Side ID [Min]	1.17 mm
Staking Side OD [Max] [diameter]	2.01 mm
Staking Side OD [Max] [diameter]	0.079 in
Staking Side OD [Min] [diameter]	1.87 mm
Staking Side OD [Min] [diameter]	0.074 in
Terminal Type	Fork, Single End
Termination	Swage

H2072 Series

Part	Terminal Type	Length - Below Flange [x]	Length - Below Flange [x]	Contact Material	Mounting Type	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Min]	Number of Turrets	Contact Finish	Length - Overall	Length - Overall	Board Thickness	Board Thickness	Staking Side OD [Min] [diameter]	Staking Side OD [Min] [diameter]	Staking Side OD [Max] [diameter]	Staking Side OD [Max] [diameter]	Diameter - Turret Head [diameter]	Diameter - Turret Head [diameter]	Insulation	Length - Above Board [x]	Length - Above Board [x]	Flange Diameter [diameter]	Flange Diameter [diameter]	Staking Side ID [Max]	Staking Side ID [Max]	Staking Side ID [Min]	Staking Side ID [Min]	Termination	Length - Below Flange [Max] [x]	Length - Below Flange [Max] [x]	Length - Below Flange [Min] [x]	Length - Below Flange [Min] [x]	Staking Side OD [Min]	Staking Side OD [Max]	Staking Side OD [Min]	Staking Side OD [Max]	Length - Overall [x]	Length - Overall [x]	Length - Overall
Harwin Inc. H2072Z01	Fork Single End	0.094 in	2.39 mm	Brass Alloy	Through Hole	0.083 "	0.079 "	2.11 mm	2.01 mm	Triple	Tin	0.351 in	8.91 mm	1.6 mm	0.063 in	1.87 mm	0.074 in	2.01 mm	0.079 in	2.54 mm	0.1 in	Non-Insulated	6.52 mm	0.257 in	3.96 mm	0.156 in	1.24 mm	0.049 in	0.046 in	1.17 mm	Swage
Harwin Inc. H2072-01	Fork Single End			Brass Alloy	Through Hole	0.089 "	0.085 "	2.26 mm	2.17 mm	Triple	Tin			1.6 mm	0.063 in					3.25 mm	0.128 in	Non-Insulated	6.35 mm	0.25 "	3.96 mm	0.156 in	1.53 mm	0.06 "	0.055 "	1.4 mm	Swage	0.099 in	2.51 mm	2.39 mm	0.094 in	2.03 mm	2.16 mm	0.08 in	0.085 in	0.344 in	8.74 mm
Harwin Inc. H2072ZL1	Fork Single End	0.125 in	3.18 mm	Brass Alloy	Through Hole	0.083 "	0.079 "	2.11 mm	2.01 mm	Triple	Tin	9.7 mm		2.39 mm	0.094 in	1.87 mm	0.074 in	2.01 mm	0.079 in	2.54 mm	0.1 in	Non-Insulated	6.52 mm	0.257 in	3.96 mm	0.156 in	1.22 mm	0.048 in	0.046 in	1.17 mm	Swage											0.382 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.82
		10	$ 0.63
		25	$ 0.56
		50	$ 0.52
		100	$ 0.48
		250	$ 0.43
		500	$ 0.40
		1000	$ 0.37
		2500	$ 0.34
Newark	Each	10	$ 0.49
		100	$ 0.43
		500	$ 0.36
		1000	$ 0.33
		2500	$ 0.31
		5000	$ 0.30

Description

General part information

H2072 Series

Terminal Turret Connector Single End, Fork 0.257" (6.52mm) Tin
