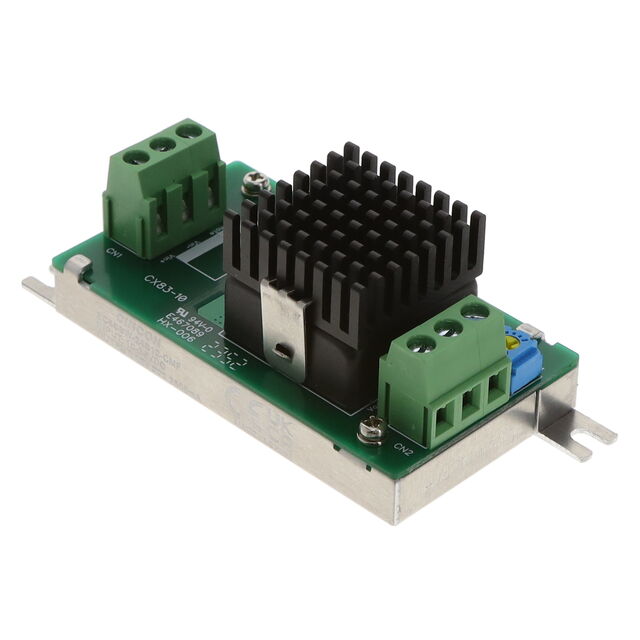

EC5SBW-24S12-CMF

Active

Cincon Electronics Co. LTD

PWR SUPP, BATT & COND

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EC5SBW-24S12-CMF

Active

Cincon Electronics Co. LTD

PWR SUPP, BATT & COND

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EC5SBW-24S12-CMF

Applications	ITE (Commercial)
Approval Agency	UKCA, CE
Current - Output (Max) [Max]	2.5 A
Efficiency	88 %
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	30 W
Size / Dimension [x]	3.31 "
Size / Dimension [x]	84.1 mm
Size / Dimension [y]	1.48 in
Size / Dimension [y]	37.6 mm
Size / Dimension [z]	1.2 "
Size / Dimension [z]	30.5 mm
Standard Number	62368-1
Type	Open Frame
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	10 VDC
Voltage - Isolation	1.5 kV
Voltage - Output 1	12 V

EC5SBW Series

Part	Power (Watts)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Isolation	Standard Number	Number of Outputs	Type	Package / Case	Voltage - Input (Min) [Min]	Features	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Efficiency	Mounting Type	Voltage - Output 1	Applications	Control Features	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)	Voltage - Output 2
Cincon Electronics Co. LTD EC5SBW-48S15N	30 W	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	1.5 kV	60950-1	1	Isolated Module	6-DIP Module	18 V	OCP OTP OVP Remote On/Off SCP UVLO	75 V	2 A	89 %	Through Hole	15 V	ITE (Commercial)	Active Low Enable	CE	85 °C	-40 °C
Cincon Electronics Co. LTD EC5SBW-48D12N	30 W	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	1.5 kV	60950-1	2	Isolated Module	6-DIP Module	18 V	OCP OTP OVP Remote On/Off SCP UVLO	75 V		88 %	Through Hole	12 V	ITE (Commercial)	Active Low Enable	CE	85 °C	-40 °C	1.25 A	-12 V
Cincon Electronics Co. LTD EC5SBW-48S05	30 W	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	1.5 kV	60950-1	1	Isolated Module	6-DIP Module	18 V	OCP OTP OVP Remote On/Off SCP UVLO	75 V	6 A	90 %	Through Hole	5 V	ITE (Commercial)	Active High Enable	CE	85 °C	-40 °C
Cincon Electronics Co. LTD EC5SBW-48S33	25 W	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	1.5 kV	60950-1	1	Isolated Module	6-DIP Module	18 V	OCP OTP OVP Remote On/Off SCP UVLO	75 V	7.5 A	88 %	Through Hole	3.3 V	ITE (Commercial)	Active High Enable	CE	85 °C	-40 °C
Cincon Electronics Co. LTD EC5SBW-24S15	30 W	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	1.5 kV	60950-1	1	Isolated Module	6-DIP Module	9 V	OCP OTP OVP Remote On/Off SCP UVLO	36 V	2 A	89 %	Through Hole	15 V	ITE (Commercial)	Active High Enable	CE	85 °C	-40 °C
Cincon Electronics Co. LTD EC5SBW-48S33N	25 W	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	1.5 kV	60950-1	1	Isolated Module	6-DIP Module	18 V	OCP OTP OVP Remote On/Off SCP UVLO	75 V	7.5 A	88 %	Through Hole	3.3 V	ITE (Commercial)	Active Low Enable	CE	85 °C	-40 °C
Cincon Electronics Co. LTD EC5SBW-24S12N	30 W	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	1.5 kV	60950-1	1	Isolated Module	6-DIP Module	9 V	OCP OTP OVP Remote On/Off SCP UVLO	36 V	2.5 A	89 %	Through Hole	12 V	ITE (Commercial)	Active Low Enable	CE	85 °C	-40 °C
Cincon Electronics Co. LTD EC5SBW-24S12-CMF	30 W	1.2 "	1.48 in	3.31 "	37.6 mm	84.1 mm	30.5 mm	1.5 kV	62368-1	1	Open Frame		10 VDC		36 V	2.5 A	88 %	Chassis Mount	12 V	ITE (Commercial)		CE UKCA	85 °C	-40 °C
Cincon Electronics Co. LTD EC5SBW-24D12	30 W	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	1.5 kV	60950-1	2	Isolated Module	6-DIP Module	9 V	OCP OTP OVP Remote On/Off SCP UVLO	36 V		88 %	Through Hole	12 V	ITE (Commercial)	Active High Enable	CE	85 °C	-40 °C	1.25 A	-12 V
Cincon Electronics Co. LTD EC5SBW-24D12N	30 W	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	1.5 kV	60950-1	2	Isolated Module	6-DIP Module	9 V	OCP OTP OVP Remote On/Off SCP UVLO	36 V		88 %	Through Hole	12 V	ITE (Commercial)	Active Low Enable	CE	85 °C	-40 °C	1.25 A	-12 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 55.69
		10	$ 48.99
		25	$ 48.24
		50	$ 46.73
		100	$ 43.72

Description

General part information

EC5SBW Series

Open Frame DC DC Converter 1 Output 12V 2.5A 36V Input

Documents

Technical documentation and resources
