Specification	EC5SBW-48S33

Applications	ITE (Commercial)
Approval Agency	CE
Control Features	Active High, Enable
Current - Output (Max)	7.5 A
Efficiency	88 %
Features	OCP, Remote On/Off, OTP, UVLO, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	6-DIP Module
Power (Watts)	25 W
Size / Dimension Height	0.4 in
Size / Dimension Length	1 in
Size / Dimension Width	1 in
Standard Number	60950-1
Type	Isolated Module
Voltage - Input (Max)	75 V
Voltage - Input (Min)	18 V
Voltage - Isolation	1500 Vrns
Voltage - Output 1	3.3 V

EC5SBW Series

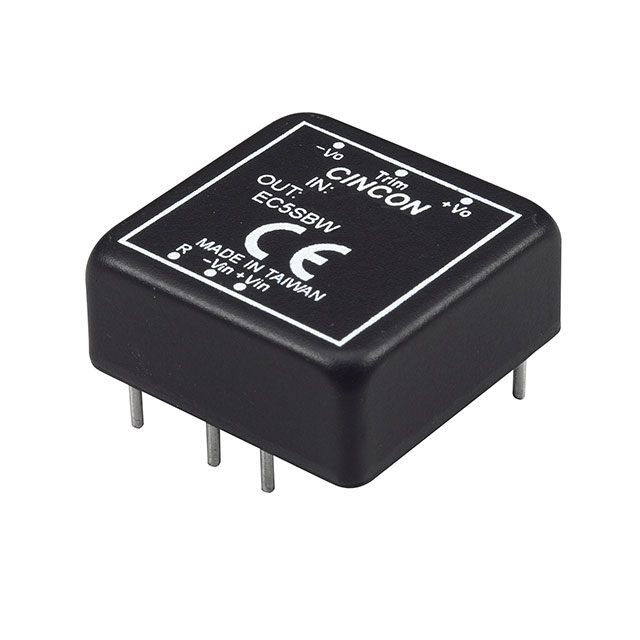

Isolated DC/DC Converters - Through Hole DC-DC Converter, 5 to 6 Watt, Wide Input Range, 9-36VDC Input, 3.3VDC Output

Part	Number of Outputs	Features	Approval Agency	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Input (Max)	Current - Output (Max)	Type	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length	Voltage - Isolation	Package / Case	Efficiency	Applications	Voltage - Output 1	Voltage - Input (Min)	Standard Number	Power (Watts)	Control Features	Mounting Type	Voltage - Output 2
Cincon Electronics Co. LTD EC5SBW-48S15N	1	OCP OTP OVP Remote On/Off SCP UVLO	CE	85 °C	-40 °C	75 V	2 A	Isolated Module	1 in	0.4 in	1 in	1500 Vrns	6-DIP Module	89 %	ITE (Commercial)	15 V	18 V	60950-1	30 W	Active Low Enable	Through Hole
Cincon Electronics Co. LTD EC5SBW-48D12N	2	OCP OTP OVP Remote On/Off SCP UVLO	CE	85 °C	-40 °C	75 V	1.25 A	Isolated Module	1 in	0.4 in	1 in	1500 Vrns	6-DIP Module	88 %	ITE (Commercial)	12 V	18 V	60950-1	30 W	Active Low Enable	Through Hole	-12 V
Cincon Electronics Co. LTD EC5SBW-48S05	1	OCP OTP OVP Remote On/Off SCP UVLO	CE	85 °C	-40 °C	75 V	6 A	Isolated Module	1 in	0.4 in	1 in	1500 Vrns	6-DIP Module	90 %	ITE (Commercial)	5 V	18 V	60950-1	30 W	Active High Enable	Through Hole
Cincon Electronics Co. LTD EC5SBW-48S33	1	OCP OTP OVP Remote On/Off SCP UVLO	CE	85 °C	-40 °C	75 V	7.5 A	Isolated Module	1 in	0.4 in	1 in	1500 Vrns	6-DIP Module	88 %	ITE (Commercial)	3.3 V	18 V	60950-1	25 W	Active High Enable	Through Hole
Cincon Electronics Co. LTD EC5SBW-24S15	1	OCP OTP OVP Remote On/Off SCP UVLO	CE	85 °C	-40 °C	36 V	2 A	Isolated Module	1 in	0.4 in	1 in	1500 Vrns	6-DIP Module	89 %	ITE (Commercial)	15 V	9 V	60950-1	30 W	Active High Enable	Through Hole
Cincon Electronics Co. LTD EC5SBW-48S33N	1	OCP OTP OVP Remote On/Off SCP UVLO	CE	85 °C	-40 °C	75 V	7.5 A	Isolated Module	1 in	0.4 in	1 in	1500 Vrns	6-DIP Module	88 %	ITE (Commercial)	3.3 V	18 V	60950-1	25 W	Active Low Enable	Through Hole
Cincon Electronics Co. LTD EC5SBW-24S12N	1	OCP OTP OVP Remote On/Off SCP UVLO	CE	85 °C	-40 °C	36 V	2.5 A	Isolated Module	1 in	0.4 in	1 in	1500 Vrns	6-DIP Module	89 %	ITE (Commercial)	12 V	9 V	60950-1	30 W	Active Low Enable	Through Hole
Cincon Electronics Co. LTD EC5SBW-24S12-CMF	1		CE UKCA	85 °C	-40 °C	36 V	2.5 A	Open Frame	1.48 in	1.2 in	3.31 in	1500 Vrns		88 %	ITE (Commercial)	12 V	10 VDC	62368-1	30 W		Chassis Mount
Cincon Electronics Co. LTD EC5SBW-24D12	2	OCP OTP OVP Remote On/Off SCP UVLO	CE	85 °C	-40 °C	36 V	1.25 A	Isolated Module	1 in	0.4 in	1 in	1500 Vrns	6-DIP Module	88 %	ITE (Commercial)	12 V	9 V	60950-1	30 W	Active High Enable	Through Hole	-12 V
Cincon Electronics Co. LTD EC5SBW-24D12N	2	OCP OTP OVP Remote On/Off SCP UVLO	CE	85 °C	-40 °C	36 V	1.25 A	Isolated Module	1 in	0.4 in	1 in	1500 Vrns	6-DIP Module	88 %	ITE (Commercial)	12 V	9 V	60950-1	30 W	Active Low Enable	Through Hole	-12 V
