SFV25R-2STE9HLF
ObsoleteAmphenol ICC (FCI)

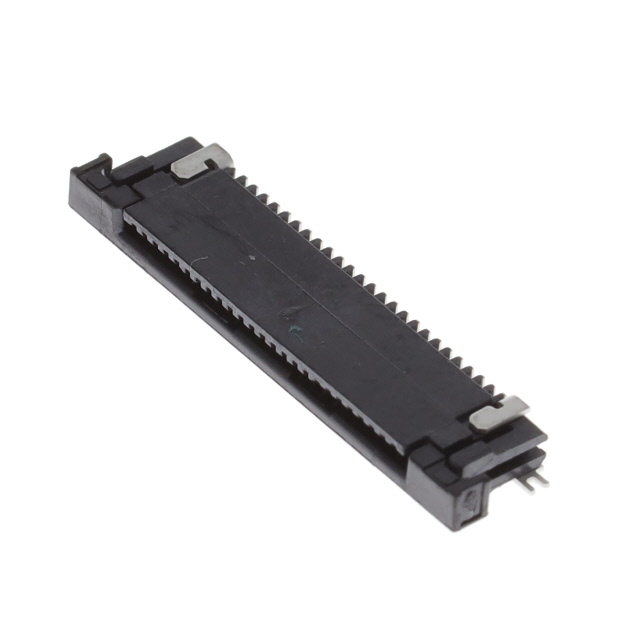

CONN FFC FPC TOP 25POS 0.5MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SFV25R-2STE9HLF
ObsoleteAmphenol ICC (FCI)
CONN FFC FPC TOP 25POS 0.5MM R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SFV25R-2STE9HLF |
|---|---|
| Actuator Color | Black |
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free |
| Cable End Type | Tapered, Straight |
| Connector/Contact Type | Contacts, Top |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 0.5 A |
| Features | Zero Insertion Force (ZIF), Solder Retention |
| FFC, FCB Thickness [z] | 0.33 mm, 0.3 mm |
| Flat Flex Type | FPC, FFC |
| Height Above Board | 1.8 mm |
| Height Above Board | 0.071 in |
| Housing Color | Black |
| Housing Material | Glass Filled, Halogen Free, Liquid Crystal Polymer (LCP) |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Termination | Solder |
| Voltage Rating | 50 V |
SFV25R Series
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Actuator Material | Mounting Type | Termination | Height Above Board | Height Above Board | Actuator Color | Material Flammability Rating | Connector/Contact Type | Housing Material | Housing Color | Cable End Type | Locking Feature | Contact Material | Voltage Rating | Mating Cycles | FFC, FCB Thickness [z] | Flat Flex Type | Current Rating (Amps) | Pitch [x] | Pitch [x] | FFC, FCB Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | 105 ░C | -55 °C | Tin | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Surface Mount Right Angle | Solder | 1.8 mm | 0.071 in | Brown | UL94 V-0 | Contacts Bottom | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Black | Notched | Slide Lock | Phosphor Bronze | 50 V | 20 | 0.3 mm 0.33 mm | FFC FPC | 0.5 A | 0.5 mm | 0.02 in | ||
Amphenol ICC (FCI) | 105 ░C | -55 °C | Tin | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Surface Mount Right Angle | Solder | 1.8 mm | 0.071 in | Brown | UL94 V-0 | Contacts Top | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Black | Notched | Slide Lock | Phosphor Bronze | 50 V | 20 | 0.3 mm 0.33 mm | FFC FPC | 0.5 A | 0.5 mm | 0.02 in | ||
Amphenol ICC (FCI) | 105 ░C | -55 °C | Gold | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Surface Mount Right Angle | Solder | 1.8 mm | 0.071 in | Beige | UL94 V-0 | Contacts Top | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Black | Tapered | Slide Lock | Phosphor Bronze | 50 V | 20 | FFC FPC | 0.5 A | 0.5 mm | 0.02 in | 0.3 mm | ||
Amphenol ICC (FCI) | 105 ░C | -55 °C | Tin Alloy | Polyphenylene Sulfide (PPS) Glass Filled | Surface Mount Right Angle | Solder | 1.8 mm | 0.071 in | Brown | UL94 V-0 | Contacts Bottom | Polyamide (PA) Nylon Glass Filled | Black | Straight Tapered | Slide Lock | Phosphor Bronze | 50 V | 20 | 0.3 mm 0.33 mm | FFC FPC | 0.5 A | 0.5 mm | 0.02 in | Solder Retention Zero Insertion Force (ZIF) | |
Amphenol ICC (FCI) | 105 ░C | -55 °C | Gold | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Surface Mount Right Angle | Solder | 1.8 mm | 0.071 in | Black | UL94 V-0 | Contacts Bottom | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Black | Tapered | Slide Lock | Phosphor Bronze | 50 V | 20 | FFC FPC | 0.5 A | 0.5 mm | 0.02 in | 0.33 mm | ||
Amphenol ICC (FCI) | 105 ░C | -55 °C | Tin | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Surface Mount Right Angle | Solder | 1.8 mm | 0.071 in | Black | UL94 V-0 | Contacts Top | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Black | Straight Tapered | Slide Lock | Phosphor Bronze | 50 V | 20 | 0.3 mm 0.33 mm | FFC FPC | 0.5 A | 0.5 mm | 0.02 in | Solder Retention Zero Insertion Force (ZIF) | |
Amphenol ICC (FCI) | 105 ░C | -55 °C | Tin | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Surface Mount Right Angle | Solder | 1.8 mm | 0.071 in | Brown | UL94 V-0 | Contacts Bottom | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Black | Notched | Slide Lock | Phosphor Bronze | 50 V | 20 | FPC | 0.5 A | 0.5 mm | 0.02 in | 0.33 mm |
