SFV25R-1STE1HLF

Active

Amphenol ICC (FCI)

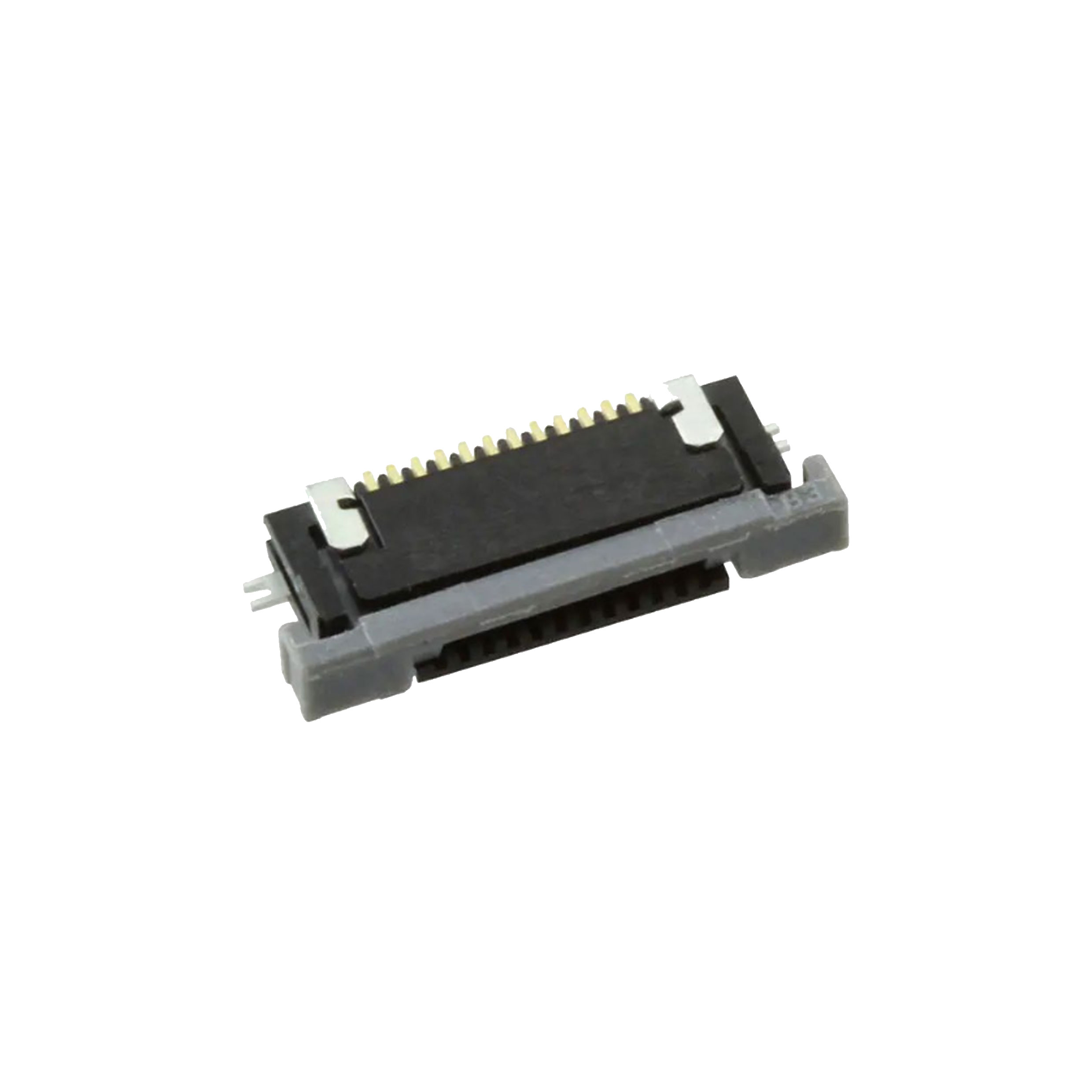

CONN FFC BOTTOM 25POS 0.5MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSFV21R-1STE1HLF SFV31R-2STBE1HLF +1

SFV25R-1STE1HLF

Active

Amphenol ICC (FCI)

CONN FFC BOTTOM 25POS 0.5MM R/A

Deep-Dive with AI

DocumentsSFV21R-1STE1HLF SFV31R-2STBE1HLF +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFV25R-1STE1HLF

Actuator Color	Brown
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Cable End Type	Notched
Connector/Contact Type	Contacts, Bottom
Contact Finish	Tin
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
FFC, FCB Thickness [z]	0.33 mm, 0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board	1.8 mm
Height Above Board	0.071 in
Housing Color	Black
Housing Material	Glass Filled, Halogen Free, Liquid Crystal Polymer (LCP)
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

SFV25R Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Actuator Material	Mounting Type	Termination	Height Above Board	Height Above Board	Actuator Color	Material Flammability Rating	Connector/Contact Type	Housing Material	Housing Color	Cable End Type	Locking Feature	Contact Material	Voltage Rating	Mating Cycles	FFC, FCB Thickness [z]	Flat Flex Type	Current Rating (Amps)	Pitch [x]	Pitch [x]	FFC, FCB Thickness	Features
Amphenol ICC (FCI) SFV25R-1STE1HLF	105 ░C	-55 °C	Tin	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Surface Mount Right Angle	Solder	1.8 mm	0.071 in	Brown	UL94 V-0	Contacts Bottom	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	Black	Notched	Slide Lock	Phosphor Bronze	50 V	20	0.3 mm 0.33 mm	FFC FPC	0.5 A	0.5 mm	0.02 in
Amphenol ICC (FCI) SFV25R-2STE1HLF	105 ░C	-55 °C	Tin	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Surface Mount Right Angle	Solder	1.8 mm	0.071 in	Brown	UL94 V-0	Contacts Top	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	Black	Notched	Slide Lock	Phosphor Bronze	50 V	20	0.3 mm 0.33 mm	FFC FPC	0.5 A	0.5 mm	0.02 in
Amphenol ICC (FCI) SFV25R-2STBE1HLF	105 ░C	-55 °C	Gold	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Surface Mount Right Angle	Solder	1.8 mm	0.071 in	Beige	UL94 V-0	Contacts Top	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	Black	Tapered	Slide Lock	Phosphor Bronze	50 V	20		FFC FPC	0.5 A	0.5 mm	0.02 in	0.3 mm
Amphenol ICC (FCI) SFV25R-1STE1	105 ░C	-55 °C	Tin Alloy	Polyphenylene Sulfide (PPS) Glass Filled	Surface Mount Right Angle	Solder	1.8 mm	0.071 in	Brown	UL94 V-0	Contacts Bottom	Polyamide (PA) Nylon Glass Filled	Black	Straight Tapered	Slide Lock	Phosphor Bronze	50 V	20	0.3 mm 0.33 mm	FFC FPC	0.5 A	0.5 mm	0.02 in		Solder Retention Zero Insertion Force (ZIF)
Amphenol ICC (FCI) SFV25R-1STBE1HLF	105 ░C	-55 °C	Gold	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Surface Mount Right Angle	Solder	1.8 mm	0.071 in	Black	UL94 V-0	Contacts Bottom	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	Black	Tapered	Slide Lock	Phosphor Bronze	50 V	20		FFC FPC	0.5 A	0.5 mm	0.02 in	0.33 mm
Amphenol ICC (FCI) SFV25R-2STE9HLF	105 ░C	-55 °C	Tin	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Surface Mount Right Angle	Solder	1.8 mm	0.071 in	Black	UL94 V-0	Contacts Top	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	Black	Straight Tapered	Slide Lock	Phosphor Bronze	50 V	20	0.3 mm 0.33 mm	FFC FPC	0.5 A	0.5 mm	0.02 in		Solder Retention Zero Insertion Force (ZIF)
Amphenol ICC (FCI) SFV25R-3STE1HLF	105 ░C	-55 °C	Tin	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Surface Mount Right Angle	Solder	1.8 mm	0.071 in	Brown	UL94 V-0	Contacts Bottom	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	Black	Notched	Slide Lock	Phosphor Bronze	50 V	20		FPC	0.5 A	0.5 mm	0.02 in	0.33 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.30
		6000	$ 0.28
		9000	$ 0.27
		15000	$ 0.25
		21000	$ 0.25
		30000	$ 0.24

Description

General part information

SFV25R Series

25 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle

SFV25R-1STE1HLF

Deep-Dive with AI

SFV25R-1STE1HLF

Deep-Dive with AI

Technical Specifications

SFV25R Series

Pricing

Description

SFV25R Series

Documents

SFV21R-1STE1HLF

SFV31R-2STBE1HLF

Datasheet
