HD1P040-PB1

Active

JAE Electronics

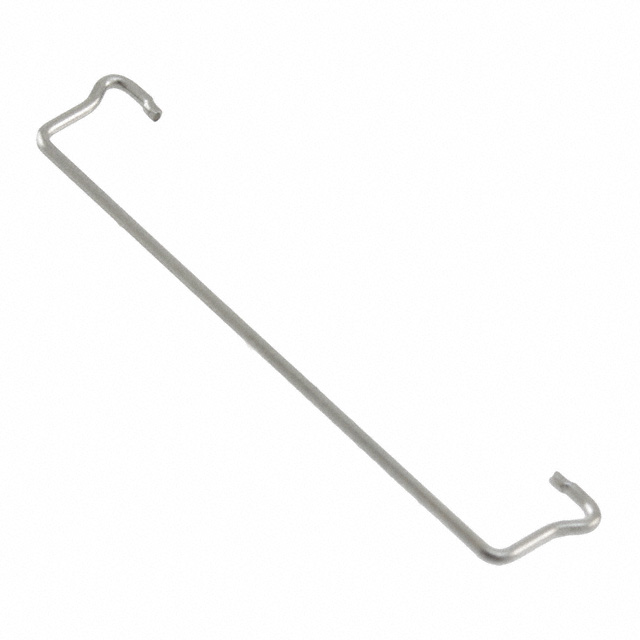

HD1 SERIES LVDS PULL BAR

Search across all available documentation for this part.

Active

JAE Electronics

HD1 SERIES LVDS PULL BAR

Technical Specifications

Parameters and characteristics for this part

Specification	HD1P040-PB1

Accessory Type	Pull Bar
For Use With/Related Products	HD Series
Number of Positions	40

Part	For Use With/Related Products	Number of Positions	Accessory Type	Cable Termination	Pitch [x]	Pitch [x]	Wire Type	Contact Finish	Wire Gauge [Max]	Wire Gauge [Min]	Connector Type	Contact Type	Fastening Type	Number of Rows	Mounting Type
JAE Electronics HD1P040-PB1	HD Series	40	Pull Bar
JAE Electronics HD1P040-CSH2-10000	HD Series	40	Cap (Cover) Shell
JAE Electronics HD1P040MA1R6000		40		Solder	0.5 mm	0.02 in	Discrete or Ribbon Cable	Gold	36 AWG 46 AWG	32 AWG 36 AWG	Plug	Center Strip Contact	Friction Lock	1	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Pull Bar For HD Series
