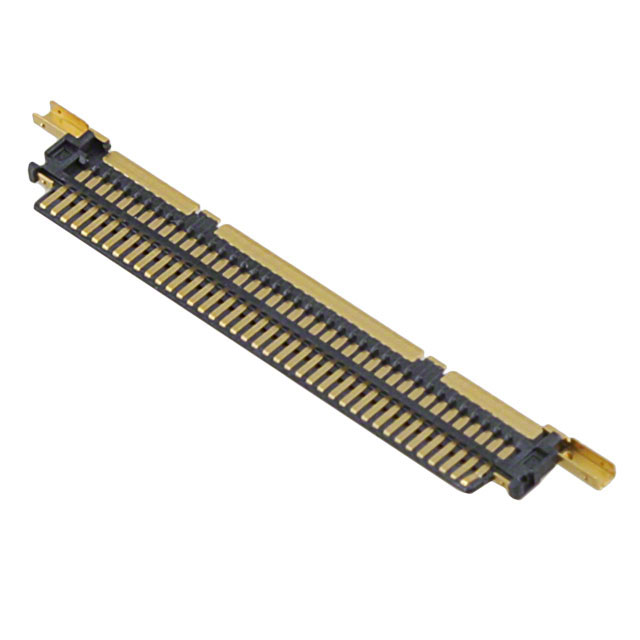

HD1P040MA1R6000
ActiveJAE Electronics
CONN PLUG 40POS SOLDER GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HD1P040MA1R6000
ActiveJAE Electronics
CONN PLUG 40POS SOLDER GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HD1P040MA1R6000 |
|---|---|
| Cable Termination | Solder |
| Connector Type | Plug |
| Contact Finish | Gold |
| Contact Type | Center Strip Contact |
| Fastening Type | Friction Lock |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 40 |
| Number of Rows | 1 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Wire Gauge [Max] | 46 AWG, 36 AWG |
| Wire Gauge [Min] | 32 AWG, 36 AWG |
| Wire Type | Discrete or Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.57 | |
| 10 | $ 2.24 | |||
| 25 | $ 2.14 | |||
| 50 | $ 2.10 | |||
| 100 | $ 2.00 | |||
| 250 | $ 1.81 | |||
| 500 | $ 1.67 | |||
| 1000 | $ 1.43 | |||
| 2500 | $ 1.33 | |||
| Digi-Reel® | 1 | $ 2.57 | ||
| 10 | $ 2.24 | |||
| 25 | $ 2.14 | |||
| 50 | $ 2.10 | |||
| 100 | $ 2.00 | |||
| 250 | $ 1.81 | |||
| 500 | $ 1.67 | |||
| 1000 | $ 1.43 | |||
| 2500 | $ 1.33 | |||
| Tape & Reel (TR) | 6000 | $ 1.27 | ||
Description
General part information
HD1P040 Series
40 Position Rectangular Plug Connector Solder Gold 32-36 AWG, 36-44 AWG
