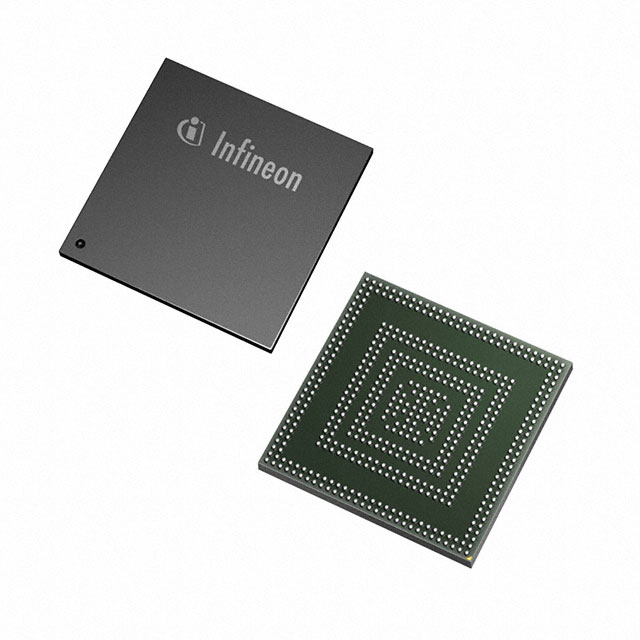

TC399XP256F300SBCKXUMA1

Obsolete

Infineon Technologies

IC MCU 32BIT 16MB FLASH 516LFBGA

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IC MCU 32BIT 16MB FLASH 516LFBGA

Technical Specifications

Parameters and characteristics for this part

Specification	TC399XP256F300SBCKXUMA1

Connectivity	I2C, LINbus, SENT, Ethernet, MSC, PSI, FlexRay, HSSL, CANbus, QSPI, ASC
Core Size [custom]	32-Bit
Core Size [custom]	6-Core
Data Converters	100, 12 b
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	516-LFBGA
Peripherals	DMA, WDT
Program Memory Size	16 MB
Program Memory Type	FLASH
RAM Size	2.75 K
Speed	300 MHz
Supplier Device Package	PG-LFBGA-516-5
Voltage - Supply (Vcc/Vdd)	5 V, 3.3 V

Part	Voltage - Supply (Vcc/Vdd)	Speed	Connectivity	Core Size [custom]	Core Size [custom]	Peripherals	Program Memory Type	Data Converters	Operating Temperature [Min]	Operating Temperature [Max]	Oscillator Type	Program Memory Size	Supplier Device Package	Mounting Type	Package / Case	RAM Size	Core Size	EEPROM Size	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]
Infineon Technologies TC399XP256F300SBCKXUMA1	3.3 V 5 V	300 MHz	ASC CANbus Ethernet FlexRay HSSL I2C LINbus MSC PSI QSPI SENT	32-Bit	6-Core	DMA WDT	FLASH	12 b 100	-40 °C	125 °C	Internal	16 MB	PG-LFBGA-516-5	Surface Mount	516-LFBGA	2.75 K
Infineon Technologies TC399XP256F300SBDKXUMA2		300 MHz	ASC CANbus Ethernet FlexRay HSSL I2C LINbus MSC PSI5 QSPI SENT			DMA LVDS PWM WDT	FLASH		-40 °C	125 °C	Internal	16 MB	PG-LFBGA-516-10	Surface Mount	516-LFBGA	2.47 M	10 Core 32 Bit	1 M	5.5 V	2.97 V
Infineon Technologies TC399XP256F300SBDLXUMA2		300 MHz	ASC CANbus Ethernet FlexRay HSSL I2C LINbus MSC PSI5 QSPI SENT			DMA LVDS PWM WDT	FLASH		-40 °C	150 °C	Internal	16 MB	PG-LFBGA-516-10	Surface Mount	516-LFBGA	2.47 M	10 Core 32 Bit	1 M	5.5 V	2.97 V
Infineon Technologies TC399XP256F300SBCLXUMA1	3.3 V 5 V	300 MHz	ASC CANbus Ethernet FlexRay HSSL I2C LINbus MSC PSI QSPI SENT	32-Bit	6-Core	DMA I2S LVDS PWM WDT	FLASH		-40 °C	150 °C	Internal	16 MB	PG-LFBGA-516-10	Surface Mount	516-LFBGA	2.75 K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

TriCore™ AURIX™ Microcontroller IC 32-Bit 6-Core 300MHz 16MB (16M x 8) FLASH PG-LFBGA-516-5

Technical documentation and resources

No documents available
