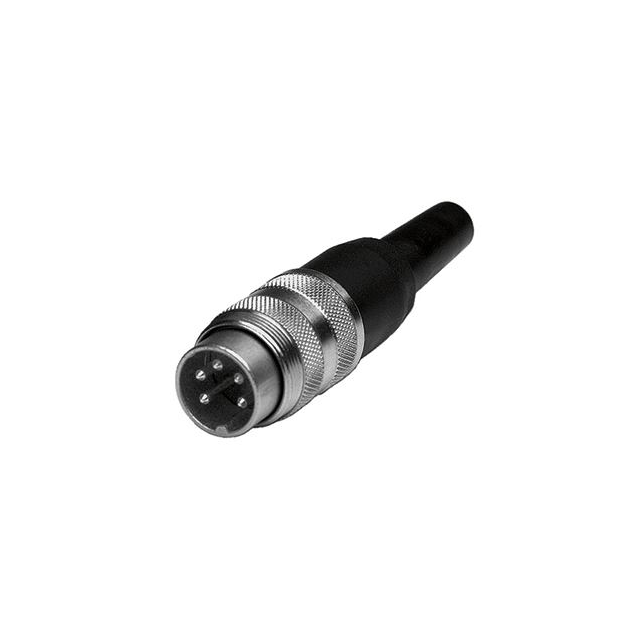

T 3400 551
ActiveAmphenol Tuchel Industrial
CONN PLUG HSNG MALE 6POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
T 3400 551
ActiveAmphenol Tuchel Industrial
CONN PLUG HSNG MALE 6POS INLINE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T 3400 551 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 1.5 mm |
| Contact Type | Crimp |
| Features | Cable Clamp, Strain Relief, Coupling Nut |
| Housing Color | Silver |
| Ingress Protection | IP40 |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 6 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Shell Finish | Nickel |
| Shell Material | Die Cast |
| Shell Size - Insert | M16-6 |
| Shielding | Shielded |
| Type | For Male Pins |
T 3400 Series
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Shell Size - Insert | Shell Finish | Housing Color | Shell Material | Contact Size | Shielding | Contact Type | Material Flammability Rating | Mounting Type | Type | Insert Material | Connector Type | Contact Shape | Features | Ingress Protection | Number of Positions | Note | Contact Finish - Mating | Primary Material | Color | Current Rating (Amps) | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Tuchel Industrial | 100 °C | -40 °C | Keyed | M16-6 | Nickel | Silver | Die Cast | 1.5 mm | Shielded | Crimp | UL94 V-0 | Free Hanging (In-Line) | For Male Pins | Thermoplastic | Plug Housing | Circular | Cable Clamp Coupling Nut Strain Relief | IP40 | 6 | Contacts Not Included | |||||
Amphenol Tuchel Industrial | 100 °C | -40 °C | Keyed | M16-6 | Nickel | Die Cast | Shielded | Free Hanging (In-Line) Right Angle | Male Pins Plug | Strain Relief | IP40 | 6 | Gold | Metal | Silver | 7 A | 250 VDC | ||||||||
Amphenol Tuchel Industrial | 100 °C | -40 °C | Keyed | M16-6 | Nickel | Die Cast | Shielded | Free Hanging (In-Line) | Male Pins Plug | Cable Clamp Strain Relief | IP40 | 6 | Gold | Metal | Silver | 7 A | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 9.72 | |
Description
General part information
T 3400 Series
6 Position Circular Connector Plug Housing Free Hanging (In-Line) Cable Clamp, Coupling Nut, Strain Relief
