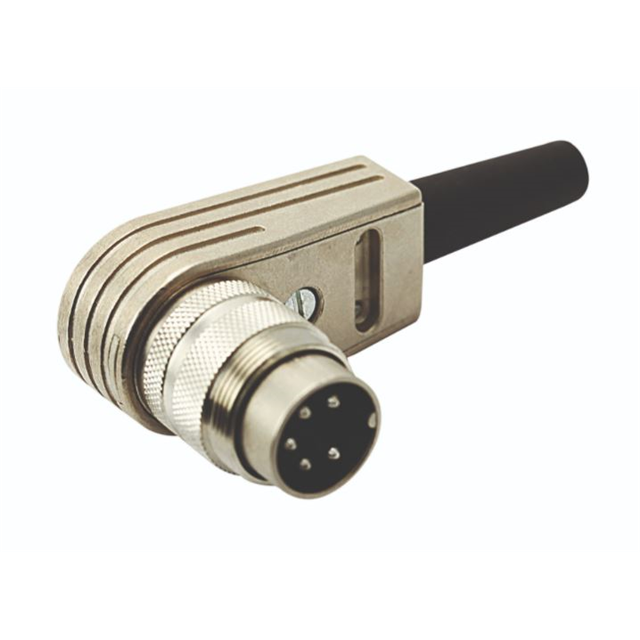

T 3400 058

Active

Amphenol Tuchel Industrial

CONN PLUG MALE 6P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG MALE 6P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	T 3400 058

Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Current Rating (Amps)	7 A
Features	Strain Relief
Ingress Protection	IP40
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	6
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-6
Shielding	Shielded
Voltage Rating	250 VDC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Shell Size - Insert	Shell Finish	Housing Color	Shell Material	Contact Size	Shielding	Contact Type	Material Flammability Rating	Mounting Type	Type	Insert Material	Connector Type	Contact Shape	Features	Ingress Protection	Number of Positions	Note	Contact Finish - Mating	Primary Material	Color	Current Rating (Amps)	Voltage Rating
Amphenol Tuchel Industrial T 3400 551	100 °C	-40 °C	Keyed	M16-6	Nickel	Silver	Die Cast	1.5 mm	Shielded	Crimp	UL94 V-0	Free Hanging (In-Line)	For Male Pins	Thermoplastic	Plug Housing	Circular	Cable Clamp Coupling Nut Strain Relief	IP40	6	Contacts Not Included
Amphenol Tuchel Industrial T 3400 058	100 °C	-40 °C	Keyed	M16-6	Nickel		Die Cast		Shielded			Free Hanging (In-Line) Right Angle			Male Pins Plug		Strain Relief	IP40	6		Gold	Metal	Silver	7 A	250 VDC
Amphenol Tuchel Industrial T 3400 028	100 °C	-40 °C	Keyed	M16-6	Nickel		Die Cast		Shielded			Free Hanging (In-Line)			Male Pins Plug		Cable Clamp Strain Relief	IP40	6		Gold	Metal	Silver	7 A	250 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Plug, Male Pins Solder Cup
