630-M50-640-BN1

Active

EDAC Inc.

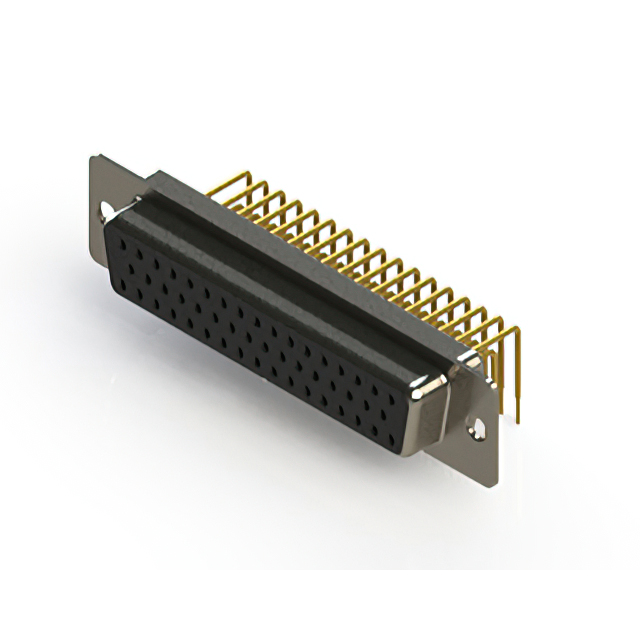

D SUBMINIATURE CONNECTOR, 50 CONTACT(S), FEMALE, 0.109 INCH PITCH, SOLDER TERMINAL, HOLE .120, RECEPTACLE,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

630-M50-640-BN1

Active

EDAC Inc.

D SUBMINIATURE CONNECTOR, 50 CONTACT(S), FEMALE, 0.109 INCH PITCH, SOLDER TERMINAL, HOLE .120, RECEPTACLE,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630-M50-640-BN1

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Shielded
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	50
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	5
Termination	Solder

630-M50 Series

...

Part	Shell Size, Connector Layout	Current Rating (Amps)	Number of Rows	Contact Finish	Contact Finish Thickness	Number of Positions	Connector Style	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Features	Material Flammability Rating	Contact Type	Connector Type	Contact Material	Termination	Backset Spacing	Backset Spacing	Color	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Shell Material, Finish
EDAC Inc. 630-M50-240-BT2	5	5 A	3	Gold	Flash	50	D-Sub	Through Hole Right Angle	-55 °C	125 °C	Polyamide (PA6T) Nylon 6T	Shielded	UL94 V-0	Signal	Receptacle Female Sockets	Copper Alloy	Solder	9.4 mm	0.37 in	Black	Housing/Shell (Unthreaded)
EDAC Inc. 630-M50-640-BN1	5	5 A	3	Gold		50	D-Sub	Through Hole Right Angle	-55 °C	125 °C	Polyamide (PA6T) Nylon 6T	Shielded	UL94 V-0	Signal	Receptacle Female Sockets	Copper Alloy	Solder	9.4 mm	0.37 in	Black	Housing/Shell (Unthreaded)	0.76 Ám	30 Áin	Nickel Plated Steel
EDAC Inc. 630-M50-340-GT6	5	5 A	3	Gold		50	D-Sub	Through Hole Right Angle	-55 °C	125 °C	Polyamide (PA6T) Nylon 6T	Mounting Brackets Shielded	UL94 V-0	Signal	Receptacle Female Sockets	Copper Alloy	Solder	9.4 mm	0.37 in	Green	4-40	0.38 µm	15 µin
EDAC Inc. 630-M50-640-WN3	5	5 A	3	Gold		50	D-Sub	Through Hole Right Angle	-55 °C	125 °C	Polyamide (PA6T) Nylon 6T	Board Lock Mounting Brackets Shielded	UL94 V-0	Signal	Receptacle Female Sockets	Copper Alloy	Solder	9.4 mm	0.37 in	White	Housing/Shell (4-40)	0.76 Ám	30 Áin	Nickel Plated Steel
EDAC Inc. 630-M50-240-LN3	5	5 A	3	Gold	Flash	50	D-Sub	Through Hole Right Angle	-55 °C	125 °C	Polyamide (PA6T) Nylon 6T	Board Lock Mounting Brackets Shielded	UL94 V-0	Signal	Receptacle Female Sockets	Copper Alloy	Solder	9.4 mm	0.37 in	Blue	Housing/Shell (4-40)			Nickel Plated Steel
EDAC Inc. 630-M50-340-LT4	5	5 A	3	Gold		50	D-Sub	Through Hole Right Angle	-55 °C	125 °C	Polyamide (PA6T) Nylon 6T	Mounting Brackets Shielded	UL94 V-0	Signal	Receptacle Female Sockets	Copper Alloy	Solder	9.4 mm	0.37 in	Blue	Housing/Shell (4-40)	0.38 µm	15 µin
EDAC Inc. 630-M50-240-WT1	5	5 A	3	Gold	Flash	50	D-Sub	Through Hole Right Angle	-55 °C	125 °C	Polyamide (PA6T) Nylon 6T	Shielded	UL94 V-0	Signal	Receptacle Female Sockets	Copper Alloy	Solder	9.4 mm	0.37 in	White	Housing/Shell (Unthreaded)
EDAC Inc. 630-M50-340-GN1	5	5 A	3	Gold		50	D-Sub	Through Hole Right Angle	-55 °C	125 °C	Polyamide (PA6T) Nylon 6T	Shielded	UL94 V-0	Signal	Receptacle Female Sockets	Copper Alloy	Solder	9.4 mm	0.37 in	Green	Housing/Shell (Unthreaded)	0.38 µm	15 µin	Nickel Plated Steel
EDAC Inc. 630-M50-340-BN4	5	5 A	3	Gold		50	D-Sub	Through Hole Right Angle	-55 °C	125 °C	Polyamide (PA6T) Nylon 6T	Mounting Brackets Shielded	UL94 V-0	Signal	Receptacle Female Sockets	Copper Alloy	Solder	9.4 mm	0.37 in	Black	Housing/Shell (4-40)	0.38 µm	15 µin	Nickel Plated Steel
EDAC Inc. 630-M50-240-GT3	5	5 A	3	Gold	Flash	50	D-Sub	Through Hole Right Angle	-55 °C	125 °C	Polyamide (PA6T) Nylon 6T	Board Lock Mounting Brackets Shielded	UL94 V-0	Signal	Receptacle Female Sockets	Copper Alloy	Solder	9.4 mm	0.37 in	Green	Housing/Shell (4-40)
