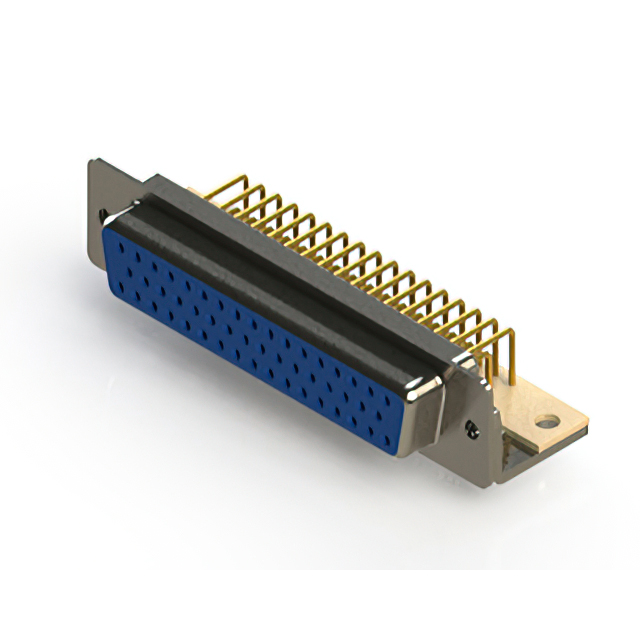

630-M50-340-LT4

Active

EDAC Inc.

630M SERIES RIGHT ANGLE D-SUB

630-M50-340-LT4

Active

EDAC Inc.

630M SERIES RIGHT ANGLE D-SUB

Description Specifications Series Pricing CAD Documents

Description

General part information

630-M50 Series

50 Position D-Sub Receptacle, Female Sockets Connector

Technical Specifications

Parameters and characteristics for this part

Specification	630-M50-340-LT4

Backset Spacing	0.37 in
Color	Blue
Connector Layout	D, DD
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Form	Machined
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating	5 A
Dielectric Material	Nylon 6T, Polyamide (PA6T)
Features	Shielded, Mounting Brackets
Finish	Tin Plated
Flange Feature	Shell (4-40), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	50
Number of Rows	3
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size	5
Termination	Solder

630-M50 Series

...

Part	Termination	Number of Rows	Current Rating	Number of Positions	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Contact Type	Flange Feature	Backset Spacing	Connector Style	Finish	Shell Material	Shell Size	Connector Layout	Features	Contact Finish	Mounting Type	Connector Type	Material Flammability Rating	Dielectric Material	Color	Contact Form	Operating Temperature (Max)	Operating Temperature (Min)	Contact Material
EDAC Inc. 630-M50-240-BT2	Solder	3	5 A	50	0	Flash	Flash	Signal	Housing Shell (Unthreaded)	0.37 in	D-Sub	Tin Plated	Steel	5	D DD	Shielded	Gold	Right Angle Through Hole	Female Sockets Receptacle	UL94 V-0	Nylon 6T Polyamide (PA6T)	Black	Machined	125 °C	-55 °C	Copper Alloy
EDAC Inc. 630-M50-640-BN1	Solder	3	5 A	50	30 µin			Signal	Housing Shell (Unthreaded)	0.37 in	D-Sub	Nickel Plated	Steel	5	D DD	Shielded	Gold	Right Angle Through Hole	Female Sockets Receptacle	UL94 V-0	Nylon 6T Polyamide (PA6T)	Black	Machined	125 °C	-55 °C	Copper Alloy
EDAC Inc. 630-M50-340-GT6	Solder	3	5 A	50	15 µin			Signal	Mating Side (4-40)	0.37 in	D-Sub	Tin Plated	Steel	5	D DD	Mounting Brackets Shielded	Gold	Right Angle Through Hole	Female Sockets Receptacle	UL94 V-0	Nylon 6T Polyamide (PA6T)	Green	Machined	125 °C	-55 °C	Copper Alloy
EDAC Inc. 630-M50-640-WN3	Solder	3	5 A	50	30 µin			Signal	Housing Shell (4-40)	0.37 in	D-Sub	Nickel Plated	Steel	5	D DD	Board Lock Mounting Brackets Shielded	Gold	Right Angle Through Hole	Female Sockets Receptacle	UL94 V-0	Nylon 6T Polyamide (PA6T)	White	Machined	125 °C	-55 °C	Copper Alloy
EDAC Inc. 630-M50-240-GT1	Solder	3	5 A	50	0	Flash	Flash	Signal	Housing Shell (Unthreaded)	0.37 in	D-Sub	Tin Plated	Steel	5	D DD	Shielded	Gold	Right Angle Through Hole	Female Sockets Receptacle	UL94 V-0	Nylon 6T Polyamide (PA6T)	Green	Machined	125 °C	-55 °C	Copper Alloy
EDAC Inc. 630-M50-640-LT6	Solder	3	5 A	50	30 µin			Signal	Mating Side (4-40)	0.37 in	D-Sub	Tin Plated	Steel	5	D DD	Mounting Brackets Shielded	Gold	Right Angle Through Hole	Female Sockets Receptacle	UL94 V-0	Nylon 6T Polyamide (PA6T)	Blue	Machined	125 °C	-55 °C	Copper Alloy
EDAC Inc. 630-M50-240-LN3	Solder	3	5 A	50	0	Flash	Flash	Signal	Housing Shell (4-40)	0.37 in	D-Sub	Nickel Plated	Steel	5	D DD	Board Lock Mounting Brackets Shielded	Gold	Right Angle Through Hole	Female Sockets Receptacle	UL94 V-0	Nylon 6T Polyamide (PA6T)	Blue	Machined	125 °C	-55 °C	Copper Alloy
EDAC Inc. 630-M50-340-LT4	Solder	3	5 A	50	15 µin			Signal	Housing Shell (4-40)	0.37 in	D-Sub	Tin Plated	Steel	5	D DD	Mounting Brackets Shielded	Gold	Right Angle Through Hole	Female Sockets Receptacle	UL94 V-0	Nylon 6T Polyamide (PA6T)	Blue	Machined	125 °C	-55 °C	Copper Alloy
EDAC Inc. 630-M50-240-WT1	Solder	3	5 A	50	0	Flash	Flash	Signal	Housing Shell (Unthreaded)	0.37 in	D-Sub	Tin Plated	Steel	5	D DD	Shielded	Gold	Right Angle Through Hole	Female Sockets Receptacle	UL94 V-0	Nylon 6T Polyamide (PA6T)	White	Machined	125 °C	-55 °C	Copper Alloy
EDAC Inc. 630-M50-340-GN1	Solder	3	5 A	50	15 µin			Signal	Housing Shell (Unthreaded)	0.37 in	D-Sub	Nickel Plated	Steel	5	D DD	Shielded	Gold	Right Angle Through Hole	Female Sockets Receptacle	UL94 V-0	Nylon 6T Polyamide (PA6T)	Green	Machined	125 °C	-55 °C	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

630-M50-340-LT4 | Datasheet
