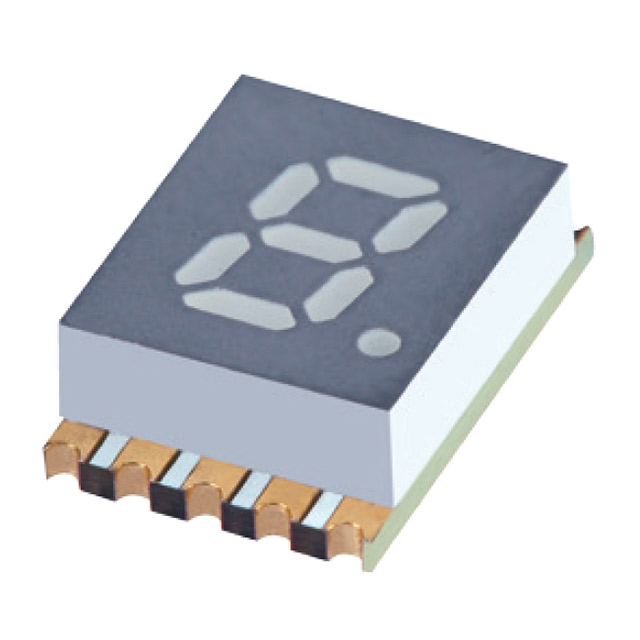

XZFMYK05A
ActiveSunLED
DISPLAY 7-SEG 0.2" SGL YLW 10SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZFMYK05A
ActiveSunLED
DISPLAY 7-SEG 0.2" SGL YLW 10SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZFMYK05A |
|---|---|
| Color | Yellow |
| Common Pin | Common Anode |
| Current - Test | 10 mA |
| Digit/Alpha Size | 5.08 mm |
| Digit/Alpha Size | 0.2 in |
| Display Type | 7-Segment |
| Millicandela Rating | 50 mcd |
| Number of Characters [custom] | 1 |
| Package / Case | 10-SMD, No Lead |
| Power Dissipation (Max) [Max] | 75 mw |
| Size / Dimension [x] | 10 mm |
| Size / Dimension [x] | 0.394 " |
| Size / Dimension [y] | 6.9 mm |
| Size / Dimension [y] | 0.272 " |
| Size / Dimension [z] | 0.118 " |
| Size / Dimension [z] | 3 mm |
| Voltage - Forward (Vf) (Typ) | 1.95 V |
| Wavelength - Peak | 590 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.13 | |
| 10 | $ 2.08 | |||
| 100 | $ 1.60 | |||
| Digi-Reel® | 1 | $ 3.13 | ||
| 10 | $ 2.08 | |||
| 100 | $ 1.60 | |||
| Tape & Reel (TR) | 650 | $ 1.45 | ||
| 1300 | $ 1.25 | |||
| 3250 | $ 1.18 | |||
| 6500 | $ 1.15 | |||
Description
General part information
XZFMYK05 Series
Display Modules - LED Character and Numeric Yellow 7-Segment 1 Character Common Anode 1.95V 10mA 0.394" H x 0.272" W x 0.118" D (10.00mm x 6.90mm x 3.00mm) 10-SMD, No Lead
