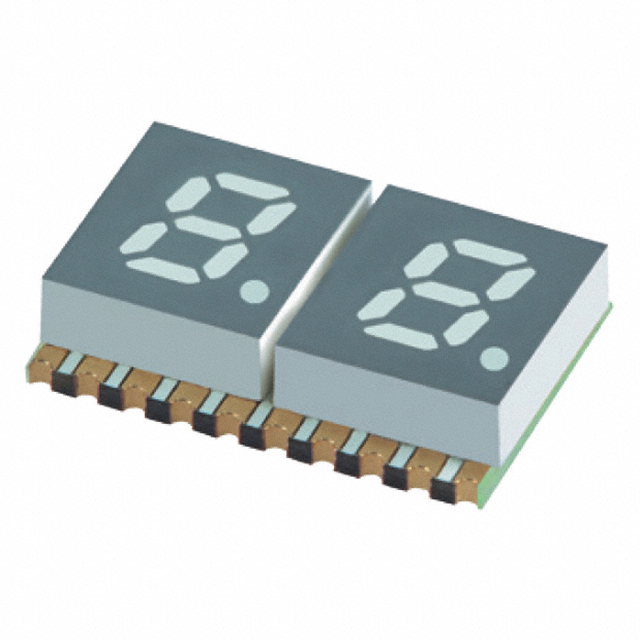

XZFMYK05C2
ActiveSunLED
DISPLAY 7-SEG 0.2" DBL YLW 20SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZFMYK05C2
ActiveSunLED
DISPLAY 7-SEG 0.2" DBL YLW 20SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZFMYK05C2 |
|---|---|
| Color | Yellow |
| Common Pin | Common Cathode |
| Current - Test | 10 mA |
| Digit/Alpha Size | 5.08 mm |
| Digit/Alpha Size | 0.2 in |
| Display Type | 7-Segment |
| Millicandela Rating | 15 mcd |
| Number of Characters | 2 |
| Package / Case | 20-SMD, No Lead |
| Power Dissipation (Max) [Max] | 75 mw |
| Size / Dimension [x] | 0.394 " |
| Size / Dimension [x] | 10 mm |
| Size / Dimension [y] | 14.1 mm |
| Size / Dimension [y] | 0.555 " |
| Size / Dimension [z] | 3 mm |
| Size / Dimension [z] | 0.118 " |
| Voltage - Forward (Vf) (Typ) | 1.95 V |
| Wavelength - Peak | 590 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 300 | $ 2.68 | |
| 600 | $ 2.26 | |||
| 900 | $ 2.18 | |||
| 1500 | $ 2.07 | |||
| 2100 | $ 1.98 | |||
Description
General part information
XZFMYK05 Series
Display Modules - LED Character and Numeric Yellow 7-Segment 2 Character Common Cathode 1.95V 10mA 0.394" H x 0.555" W x 0.118" D (10.00mm x 14.10mm x 3.00mm) 20-SMD, No Lead
