ECA-1JHG222

Active

Panasonic Industrial Automation Sales

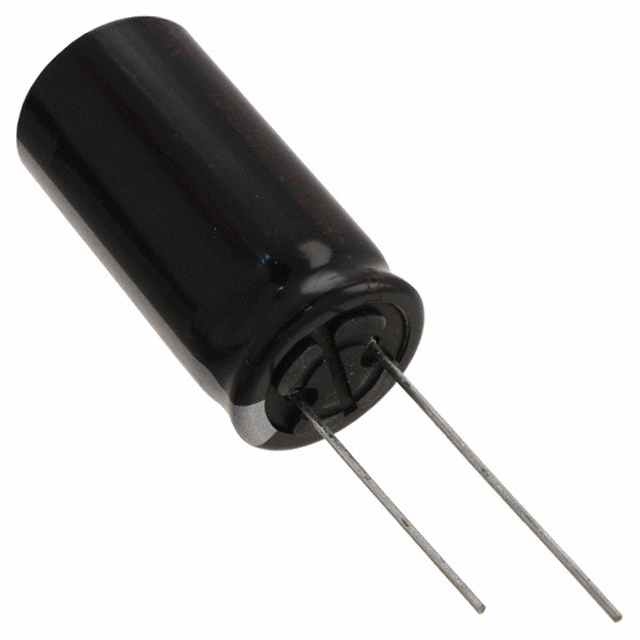

CAP 2200UF 63VDC 20% 18 X 35.5MM RDL 7.5MM 1610MA 2000 HR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

ECA-1JHG222

Active

Panasonic Industrial Automation Sales

CAP 2200UF 63VDC 20% 18 X 35.5MM RDL 7.5MM 1610MA 2000 HR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ECA-1JHG222

Applications	General Purpose
Capacitance	2200 µF
Height - Seated (Max) [Max] [z]	37.5 mm
Height - Seated (Max) [Max] [z]	1.476 in
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	1.852 A
Ripple Current @ Low Frequency	1.61 A
Size / Dimension [diameter]	0.709 "
Size / Dimension [diameter]	18 mm
Tolerance	20 %
Voltage - Rated	63 V

ECA-1JH Series

Part	Polarization	Lifetime @ Temp.	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lead Spacing	Lead Spacing	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Applications	Voltage - Rated	Mounting Type	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ High Frequency	Ratings	Height - Seated (Max)
Panasonic Industrial Automation Sales ECA-1JHG221B	Polar	2000 Hrs	335 mA	17 mm	0.669 in	5 mm	0.197 in	220 µF	10 mm	0.394 in	Radial Can	General Purpose	63 V	Through Hole	20 %	105 ░C	-55 °C	502.5 mA
Panasonic Industrial Automation Sales ECA-1JHG102	Polar	2000 Hrs	930 mA	27 mm	1.063 in	7.5 mm	0.295 in	1000 µF	16 mm	0.63 in	Radial Can	General Purpose	63 V	Through Hole	20 %	105 ░C	-55 °C	1.07 A
Panasonic Industrial Automation Sales ECA-1JHG220I	Polar	1000 Hrs	71 mA	12 mm	0.472 "	2.5 mm	0.098 in	22 µF	5 mm	0.197 "	Radial Can	General Purpose	63 V	Through Hole	20 %	105 ░C	-55 °C	142 mA
Panasonic Industrial Automation Sales ECA-1JHG222	Polar	2000 Hrs	1.61 A	37.5 mm	1.476 in	7.5 mm	0.295 in	2200 µF	18 mm	0.709 "	Radial Can	General Purpose	63 V	Through Hole	20 %	105 ░C	-55 °C	1.852 A
Panasonic Industrial Automation Sales ECA-1JHG331B	Polar	2000 Hrs	510 mA	22 mm	0.866 in	5 mm	0.197 in	330 µF	10 mm	0.394 in	Radial Can	General Purpose	63 V	Through Hole	20 %	105 ░C	-55 °C	765 mA
Panasonic Industrial Automation Sales ECA-1JHG220B	Polar	1000 Hrs	71 mA	12 mm	0.472 "	5 mm	0.197 in	22 µF	5 mm	0.197 "	Radial Can	Automotive	63 V	Through Hole	20 %	105 ░C	-55 °C	142 mA	AEC-Q200
Panasonic Industrial Automation Sales ECA-1JHG220	Polar	1000 Hrs	71 mA	12 mm	0.472 "	2 mm	0.079 in	22 µF	5 mm	0.197 "	Radial Can	General Purpose	63 V	Through Hole	20 %	105 ░C	-55 °C	142 mA
Panasonic Industrial Automation Sales ECA-1JHG101B	Polar	2000 Hrs	215 mA		0.531 "	5 mm	0.197 in	100 µF	10 mm	0.394 in	Radial Can	General Purpose	63 V	Through Hole	20 %	105 ░C	-55 °C			13.5 mm
Panasonic Industrial Automation Sales ECA-1JHG221E	Polar	2000 Hrs	335 mA	17 mm	0.669 in	5 mm	0.197 in	220 µF	10 mm	0.394 in	Radial Can	General Purpose	63 V	Through Hole	20 %	105 ░C	-55 °C	502.5 mA
Panasonic Industrial Automation Sales ECA-1JHG471	Polar	2000 Hrs	640 mA	22 mm	0.866 in	5 mm	0.197 in	470 µF	12.5 mm	0.492 in	Radial Can	General Purpose	63 V	Through Hole	20 %	105 ░C	-55 °C	960 mA
