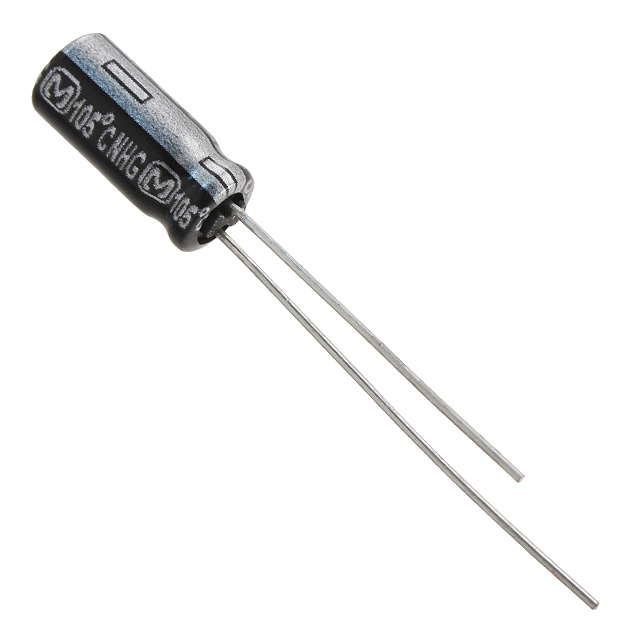

ECA-1JHG220

Active

Panasonic Industrial Automation Sales

CAP ALUM 22UF 20% 63V RADIAL TH

Deep-Dive with AI

Search across all available documentation for this part.

ECA-1JHG220

Active

Panasonic Industrial Automation Sales

CAP ALUM 22UF 20% 63V RADIAL TH

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ECA-1JHG220

Applications	General Purpose
Capacitance	22 µF
Height - Seated (Max) [Max] [z]	12 mm
Height - Seated (Max) [Max] [z]	0.472 "
Lead Spacing	2 mm
Lead Spacing	0.079 in
Lifetime @ Temp.	1000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	142 mA
Ripple Current @ Low Frequency	71 mA
Size / Dimension [diameter]	5 mm
Size / Dimension [diameter]	0.197 "
Tolerance	20 %
Voltage - Rated	63 V

ECA-1JH Series

Part	Polarization	Lifetime @ Temp.	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lead Spacing	Lead Spacing	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Applications	Voltage - Rated	Mounting Type	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ High Frequency	Ratings	Height - Seated (Max)
Panasonic Industrial Automation Sales ECA-1JHG221B	Polar	2000 Hrs	335 mA	17 mm	0.669 in	5 mm	0.197 in	220 µF	10 mm	0.394 in	Radial Can	General Purpose	63 V	Through Hole	20 %	105 ░C	-55 °C	502.5 mA
Panasonic Industrial Automation Sales ECA-1JHG102	Polar	2000 Hrs	930 mA	27 mm	1.063 in	7.5 mm	0.295 in	1000 µF	16 mm	0.63 in	Radial Can	General Purpose	63 V	Through Hole	20 %	105 ░C	-55 °C	1.07 A
Panasonic Industrial Automation Sales ECA-1JHG220I	Polar	1000 Hrs	71 mA	12 mm	0.472 "	2.5 mm	0.098 in	22 µF	5 mm	0.197 "	Radial Can	General Purpose	63 V	Through Hole	20 %	105 ░C	-55 °C	142 mA
Panasonic Industrial Automation Sales ECA-1JHG222	Polar	2000 Hrs	1.61 A	37.5 mm	1.476 in	7.5 mm	0.295 in	2200 µF	18 mm	0.709 "	Radial Can	General Purpose	63 V	Through Hole	20 %	105 ░C	-55 °C	1.852 A
Panasonic Industrial Automation Sales ECA-1JHG331B	Polar	2000 Hrs	510 mA	22 mm	0.866 in	5 mm	0.197 in	330 µF	10 mm	0.394 in	Radial Can	General Purpose	63 V	Through Hole	20 %	105 ░C	-55 °C	765 mA
Panasonic Industrial Automation Sales ECA-1JHG220B	Polar	1000 Hrs	71 mA	12 mm	0.472 "	5 mm	0.197 in	22 µF	5 mm	0.197 "	Radial Can	Automotive	63 V	Through Hole	20 %	105 ░C	-55 °C	142 mA	AEC-Q200
Panasonic Industrial Automation Sales ECA-1JHG220	Polar	1000 Hrs	71 mA	12 mm	0.472 "	2 mm	0.079 in	22 µF	5 mm	0.197 "	Radial Can	General Purpose	63 V	Through Hole	20 %	105 ░C	-55 °C	142 mA
Panasonic Industrial Automation Sales ECA-1JHG101B	Polar	2000 Hrs	215 mA		0.531 "	5 mm	0.197 in	100 µF	10 mm	0.394 in	Radial Can	General Purpose	63 V	Through Hole	20 %	105 ░C	-55 °C			13.5 mm
Panasonic Industrial Automation Sales ECA-1JHG221E	Polar	2000 Hrs	335 mA	17 mm	0.669 in	5 mm	0.197 in	220 µF	10 mm	0.394 in	Radial Can	General Purpose	63 V	Through Hole	20 %	105 ░C	-55 °C	502.5 mA
Panasonic Industrial Automation Sales ECA-1JHG471	Polar	2000 Hrs	640 mA	22 mm	0.866 in	5 mm	0.197 in	470 µF	12.5 mm	0.492 in	Radial Can	General Purpose	63 V	Through Hole	20 %	105 ░C	-55 °C	960 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.28
		10	$ 0.17
		50	$ 0.12
		200	$ 0.09
		600	$ 0.08
		1000	$ 0.07
		2600	$ 0.06
		5000	$ 0.06

Description

General part information

ECA-1JH Series

22 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
