Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 11_BNC-50-7-6/133_NE | 11_BNC-50 Series |
|---|---|---|
| - | - | |
| Body Finish | White Bronze | White Bronze |
| Body Material | Brass | Brass |
| Cable Group | RG-214 | RG-223, RG-174, 188, 316, RG-178, RG-58, RG-213, RG-214, RD-316, RG-59, RG-400, 225, LMR-240 |
| Cable Group | - | 142 - 400 |
| Center Contact Material | Brass | Brass, Bronze, Beryllium Copper |
| Center Contact Plating | Gold | Gold |
| Connector Style | BNC | BNC |
| Connector Type | Male Pin, Plug | Male Pin, Plug |
| Contact Termination | Crimp | Solder, Crimp |
| Dielectric Material | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Frequency - Max [Max] | 4 GHz | 4 GHz |
| Housing Color | Silver | Silver |
| Impedance | 50 Ohms | 50 Ohms |
| Mating Cycles | 500 | 500 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 165 °C | 165 °C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Shield Termination | Crimp | Crimp, Clamp |
| Voltage Rating | 500 V | 500 V |
11_BNC-50 Series
11_BNC-50-3-16/133_NH
| Part | Body Finish | Cable Group | Connector Style | Mating Cycles | Center Contact Plating | Center Contact Material | Impedance | Voltage Rating | Contact Termination | Fastening Type | Mounting Type | Dielectric Material | Frequency - Max [Max] | Number of Ports | Body Material | Connector Type | Shield Termination | Housing Color | Operating Temperature [Min] | Operating Temperature [Max] | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Huber+Suhner, Inc. 11_BNC-50-3-16/133_NH | White Bronze | RG-223 | BNC | 500 | Gold | Brass | 50 Ohms | 500 V | Solder | Bayonet Lock | Free Hanging (In-Line) | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) | 4 GHz | 1 | Brass | Male Pin, Plug | Crimp | Silver | -65 ░C | 165 °C | |
Huber+Suhner, Inc. 11_BNC-50-3-36/133_NE | White Bronze | BNC | 500 | Gold | Brass | 50 Ohms | 500 V | Crimp | Bayonet Lock | Free Hanging (In-Line) | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) | 4 GHz | 1 | Brass | Male Pin, Plug | Crimp | Silver | -65 ░C | 165 °C | ||
Huber+Suhner, Inc. 11_BNC-50-2-13/133_NE | White Bronze | 188, 316, RG-174 | BNC | 500 | Gold | Brass, Bronze | 50 Ohms | 500 V | Crimp | Bayonet Lock | Free Hanging (In-Line) | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) | 4 GHz | 1 | Brass | Male Pin, Plug | Crimp | Silver | -65 ░C | 165 °C | |
Huber+Suhner, Inc. 11_BNC-50-3-16/133_NE | White Bronze | RG-223 | BNC | 500 | Gold | Brass | 50 Ohms | 500 V | Solder | Bayonet Lock | Free Hanging (In-Line) | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) | 4 GHz | 1 | Brass | Male Pin, Plug | Crimp | Silver | -65 ░C | 165 °C | |
Huber+Suhner, Inc. 11_BNC-50-1-5/133_NH | White Bronze | RG-178 | BNC | 500 | Gold | Brass, Bronze | 50 Ohms | 500 V | Crimp | Bayonet Lock | Free Hanging (In-Line) | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) | 4 GHz | 1 | Brass | Male Pin, Plug | Crimp | Silver | -65 ░C | 165 °C | 196 |
Huber+Suhner, Inc. 11_BNC-50-3-1/133_NE | White Bronze | RG-58 | BNC | 500 | Gold | Brass | 50 Ohms | 500 V | Solder | Bayonet Lock | Free Hanging (In-Line) | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) | 4 GHz | 1 | Brass | Male Pin, Plug | Clamp | Silver | -65 ░C | 165 °C | 142, 223, 400 |
Huber+Suhner, Inc. 11_BNC-50-7-1/133_NE | White Bronze | RG-213 | BNC | 500 | Gold | Brass | 50 Ohms | 500 V | Solder | Bayonet Lock | Free Hanging (In-Line) | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) | 4 GHz | 1 | Brass | Male Pin, Plug | Clamp | Silver | -65 ░C | 165 °C | |
Huber+Suhner, Inc. 11_BNC-50-7-6/133_NE | White Bronze | RG-214 | BNC | 500 | Gold | Brass | 50 Ohms | 500 V | Crimp | Bayonet Lock | Free Hanging (In-Line) | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) | 4 GHz | 1 | Brass | Male Pin, Plug | Crimp | Silver | -65 ░C | 165 °C | |
Huber+Suhner, Inc. 11_BNC-50-2-16/133_NE | White Bronze | BNC | 500 | Gold | Brass, Bronze | 50 Ohms | 500 V | Crimp | Bayonet Lock | Free Hanging (In-Line) | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) | 4 GHz | 1 | Brass | Male Pin, Plug | Crimp | Silver | -65 ░C | 165 °C | ||
Huber+Suhner, Inc. 11_BNC-50-2-13/133_NH | White Bronze | 188, 316, RG-174 | BNC | 500 | Gold | Brass, Bronze | 50 Ohms | 500 V | Crimp | Bayonet Lock | Free Hanging (In-Line) | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) | 4 GHz | 1 | Brass | Male Pin, Plug | Crimp | Silver | -65 ░C | 165 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 34.08 | |
Description
General part information
11_BNC-50 Series

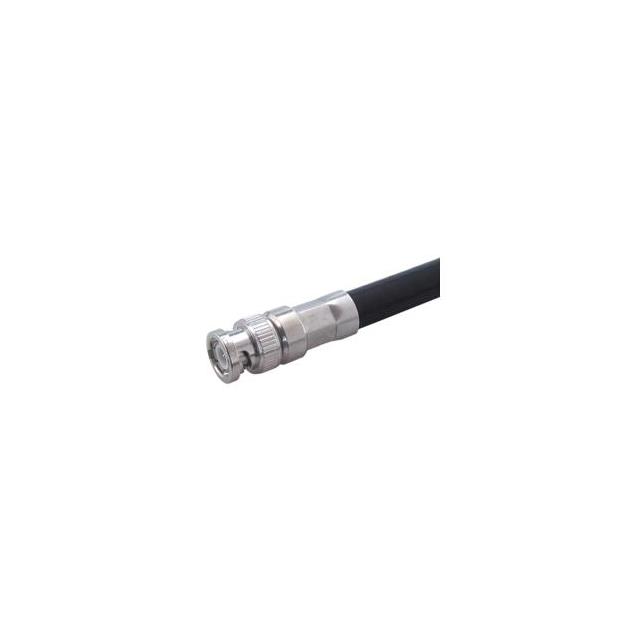

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
