4-1609037-0

Active

TE Connectivity Corcom Filters

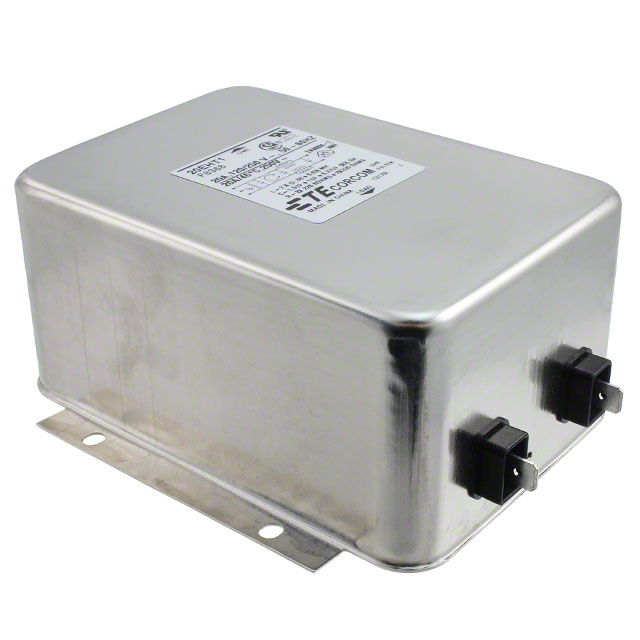

LINE FILTER 250VAC 20A CHASSIS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Corcom EMI/RFI Filter Selector Chart

4-1609037-0

Active

TE Connectivity Corcom Filters

LINE FILTER 250VAC 20A CHASSIS

Deep-Dive with AI

DocumentsDatasheet Corcom EMI/RFI Filter Selector Chart

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	12	$ 87.53

Description

General part information

1609037 Series

Single Phase EMC/EMI Line Filter 20 A 250V 50/60Hz Two Stage Quick Connect

Documents

Technical documentation and resources

Datasheet

Corcom EMI/RFI Filter Selector Chart

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	4-1609037-0	1609037 Series

Applications	General Purpose	General Purpose
Approval Agency	VDE, UR	VDE, CSA, UR, UL
Configuration	Two Stage	Single Stage, Two Stage
Current	20 A	4 - 30 A
Filter Type	Single Phase	Single Phase
Frequency - Operating [Max]	60 Hz	60 Hz
Frequency - Operating [Min]	50 Hz	50 Hz
Inductance	2.88 mH	2.88 - 900 mH
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	-10 °C	-10 °C
Termination Style	Quick Connect	Quick Connect, Threaded Post (8-32)
Voltage - Rated AC	250 V	250 V

1609037 Series

LINE FILTER 250VAC 6A CHASSIS

Part	Applications	Termination Style	Current	Inductance	Voltage - Rated AC	Filter Type	Frequency - Operating [Max]	Frequency - Operating [Min]	Approval Agency	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Configuration
TE Connectivity Corcom Filters 2-1609037-9	General Purpose	Quick Connect	6 A	5.1 mH	250 V	Single Phase	60 Hz	50 Hz	CSA, UR, VDE	Chassis Mount	-10 °C	40 °C	Single Stage
TE Connectivity Corcom Filters 3-1609037-2	General Purpose	Quick Connect	20 A	4.55 mH	250 V	Single Phase	60 Hz	50 Hz	CSA, UR, VDE	Chassis Mount	-10 °C	40 °C	Single Stage
TE Connectivity Corcom Filters 3-1609037-5	General Purpose	Threaded Post (8-32)	20 A	3.88 mH	250 V	Single Phase	60 Hz	50 Hz	UR, VDE	Chassis Mount	-10 °C	40 °C	Single Stage
TE Connectivity Corcom Filters 3-1609037-3	General Purpose	Threaded Post (8-32)	30 A	900 µH	250 V	Single Phase	60 Hz	50 Hz	CSA, UR, VDE	Chassis Mount	-10 °C	40 °C	Single Stage
TE Connectivity Corcom Filters 4-1609037-2	General Purpose	Quick Connect	20 A	6 mH	250 V	Single Phase	60 Hz	50 Hz	CSA, UR, VDE	Chassis Mount	-10 °C	40 °C	Two Stage
TE Connectivity Corcom Filters 3-1609037-1	General Purpose	Quick Connect	15 A	5.04 mH	250 V	Single Phase	60 Hz	50 Hz	CSA, UR, VDE	Chassis Mount	-10 °C	40 °C	Single Stage
TE Connectivity Corcom Filters 2-1609037-8	General Purpose	Quick Connect	4 A	7 mH	250 V	Single Phase	60 Hz	50 Hz	CSA, UR, VDE	Chassis Mount	-10 °C	40 °C	Single Stage
TE Connectivity Corcom Filters 4-1609037-0	General Purpose	Quick Connect	20 A	2.88 mH	250 V	Single Phase	60 Hz	50 Hz	UR, VDE	Chassis Mount	-10 °C	40 °C	Two Stage
TE Connectivity Corcom Filters 3-1609037-0	General Purpose	Quick Connect	10 A	4.97 mH	250 V	Single Phase	60 Hz	50 Hz	CSA, UR, VDE	Chassis Mount	-10 °C	40 °C	Single Stage
TE Connectivity Corcom Filters 4-1609037-1	General Purpose	Threaded Post (8-32)	20 A	6 mH	250 V	Single Phase	60 Hz	50 Hz	CSA, UR, VDE	Chassis Mount	-10 °C	40 °C	Two Stage
