TE Connectivity Corcom Filters

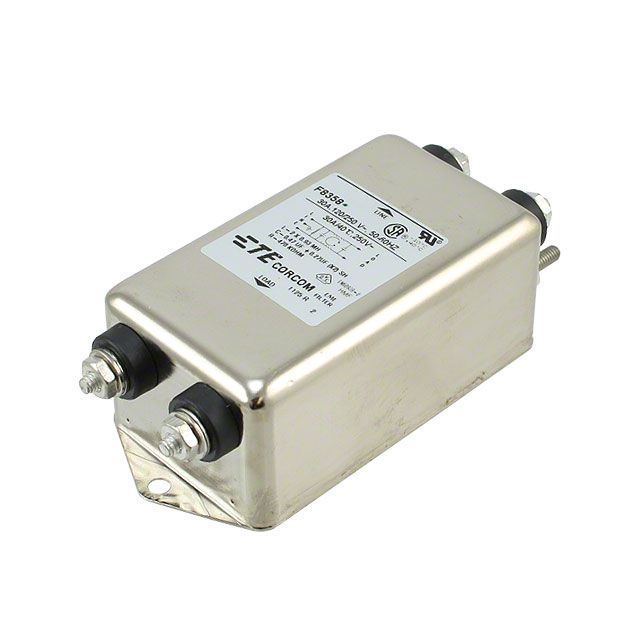

LINE FILTER 250VAC 30A CHASSIS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Corcom EMI/RFI Filter Selector Chart

3-1609037-3

Active

TE Connectivity Corcom Filters

LINE FILTER 250VAC 30A CHASSIS

Deep-Dive with AI

DocumentsDatasheet Corcom EMI/RFI Filter Selector Chart

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3-1609037-3	1609037 Series

Applications	General Purpose	General Purpose
Approval Agency	VDE, CSA, UR	VDE, CSA, UR, UL
Configuration	Single Stage	Single Stage, Two Stage
Current	30 A	4 - 30 A
Filter Type	Single Phase	Single Phase
Frequency - Operating [Max]	60 Hz	60 Hz
Frequency - Operating [Min]	50 Hz	50 Hz
Inductance	900 µH	2.88 - 900 mH
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	-10 °C	-10 °C
Termination Style	Threaded Post (8-32)	Quick Connect, Threaded Post (8-32)
Voltage - Rated AC	250 V	250 V

1609037 Series

LINE FILTER 250VAC 6A CHASSIS

Part	Applications	Termination Style	Current	Inductance	Voltage - Rated AC	Filter Type	Frequency - Operating [Max]	Frequency - Operating [Min]	Approval Agency	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Configuration
TE Connectivity Corcom Filters 2-1609037-9	General Purpose	Quick Connect	6 A	5.1 mH	250 V	Single Phase	60 Hz	50 Hz	CSA, UR, VDE	Chassis Mount	-10 °C	40 °C	Single Stage
TE Connectivity Corcom Filters 3-1609037-2	General Purpose	Quick Connect	20 A	4.55 mH	250 V	Single Phase	60 Hz	50 Hz	CSA, UR, VDE	Chassis Mount	-10 °C	40 °C	Single Stage
TE Connectivity Corcom Filters 3-1609037-5	General Purpose	Threaded Post (8-32)	20 A	3.88 mH	250 V	Single Phase	60 Hz	50 Hz	UR, VDE	Chassis Mount	-10 °C	40 °C	Single Stage
TE Connectivity Corcom Filters 3-1609037-3	General Purpose	Threaded Post (8-32)	30 A	900 µH	250 V	Single Phase	60 Hz	50 Hz	CSA, UR, VDE	Chassis Mount	-10 °C	40 °C	Single Stage
TE Connectivity Corcom Filters 4-1609037-2	General Purpose	Quick Connect	20 A	6 mH	250 V	Single Phase	60 Hz	50 Hz	CSA, UR, VDE	Chassis Mount	-10 °C	40 °C	Two Stage
TE Connectivity Corcom Filters 3-1609037-1	General Purpose	Quick Connect	15 A	5.04 mH	250 V	Single Phase	60 Hz	50 Hz	CSA, UR, VDE	Chassis Mount	-10 °C	40 °C	Single Stage
TE Connectivity Corcom Filters 2-1609037-8	General Purpose	Quick Connect	4 A	7 mH	250 V	Single Phase	60 Hz	50 Hz	CSA, UR, VDE	Chassis Mount	-10 °C	40 °C	Single Stage
TE Connectivity Corcom Filters 4-1609037-0	General Purpose	Quick Connect	20 A	2.88 mH	250 V	Single Phase	60 Hz	50 Hz	UR, VDE	Chassis Mount	-10 °C	40 °C	Two Stage
TE Connectivity Corcom Filters 3-1609037-0	General Purpose	Quick Connect	10 A	4.97 mH	250 V	Single Phase	60 Hz	50 Hz	CSA, UR, VDE	Chassis Mount	-10 °C	40 °C	Single Stage
TE Connectivity Corcom Filters 4-1609037-1	General Purpose	Threaded Post (8-32)	20 A	6 mH	250 V	Single Phase	60 Hz	50 Hz	CSA, UR, VDE	Chassis Mount	-10 °C	40 °C	Two Stage

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 74.14

Description

General part information

1609037 Series

Single Phase EMC/EMI Line Filter 30 A 250V 50/60Hz Single Stage Threaded Post (8-32)
