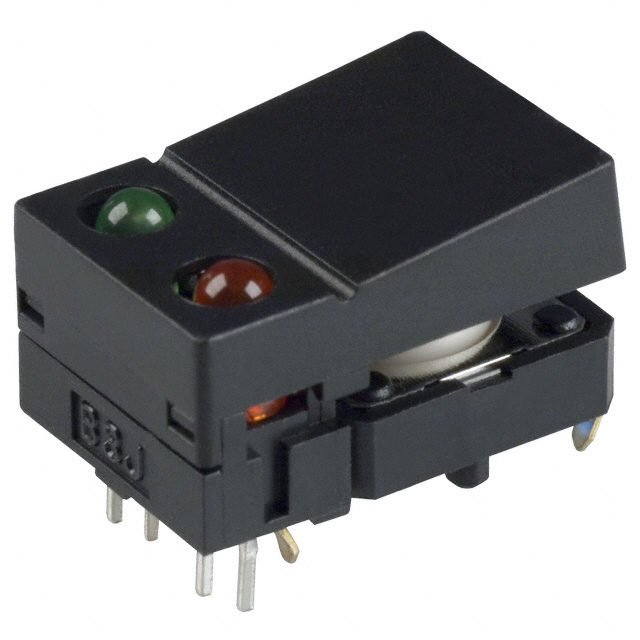

B3J-6200

Active

Omron Electronics Inc-EMC Div

SWITCH PUSH SPST-NO 0.05A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet How to Read Date Codes

B3J-6200

Active

Omron Electronics Inc-EMC Div

SWITCH PUSH SPST-NO 0.05A 24V

Deep-Dive with AI

DocumentsDatasheet How to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	B3J-6200

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	SPST-NO
Color - Actuator/Cap	Orange
Current Rating (Amps)	50 mA
Electrical Life	3000000 Cycles
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	2 VDC, 2.1 VDC
Mechanical Life	3000000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Switch Function	Off-Mom
Termination Style	PC Pin
Type	Keyswitch, Illuminated
Voltage Rating - DC	24 V

B3J Series

Part	Type	Mounting Type	Actuator Type	Illumination Type, Color	Voltage Rating - DC	Termination Style	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Color - Actuator/Cap	Actuator Marking	Circuit	Electrical Life	Switch Function	Illumination Voltage (Nominal)
Omron Electronics Inc-EMC Div B3J-6000	Keyswitch Illuminated	Through Hole	Button Square	Green/Red LED	24 V	PC Pin	50 mA	70 °C	-25 °C	3000000 Cycles	Gray Light	No Marking	SPST-NO	3000000 Cycles	Off-Mom	2 VDC 2.1 VDC
Omron Electronics Inc-EMC Div B3J-2000	Keyswitch Illuminated	Through Hole	Button Square	LED Red	24 V	PC Pin	50 mA	70 °C	-25 °C	3000000 Cycles	Gray Light	No Marking	SPST-NO	3000000 Cycles	Off-Mom	2 VDC
Omron Electronics Inc-EMC Div B3J-4000	Keyswitch Illuminated	Through Hole	Button Square	Green LED	24 V	PC Pin	50 mA	70 °C	-25 °C	3000000 Cycles	Gray Light	No Marking	SPST-NO	3000000 Cycles	Off-Mom	2.1 VDC
Omron Electronics Inc-EMC Div B3J-6300	Keyswitch Illuminated	Through Hole	Button Square	Green/Red LED	24 V	PC Pin	50 mA	70 °C	-25 °C	3000000 Cycles	Yellow	No Marking	SPST-NO	3000000 Cycles	Off-Mom	2 VDC 2.1 VDC
Omron Electronics Inc-EMC Div B3J-2300	Keyswitch Illuminated	Through Hole	Button Square	LED Red	24 V	PC Pin	50 mA	70 °C	-25 °C	3000000 Cycles	Yellow	No Marking	SPST-NO	3000000 Cycles	Off-Mom	2 VDC
Omron Electronics Inc-EMC Div B3J-3100	Keyswitch Illuminated	Through Hole	Button Square	LED Yellow	24 V	PC Pin	50 mA	70 °C	-25 °C	3000000 Cycles	Black	No Marking	SPST-NO	3000000 Cycles	Off-Mom	2 VDC
Omron Electronics Inc-EMC Div B3J-6200	Keyswitch Illuminated	Through Hole	Button Square	Green/Red LED	24 V	PC Pin	50 mA	70 °C	-25 °C	3000000 Cycles	Orange	No Marking	SPST-NO	3000000 Cycles	Off-Mom	2 VDC 2.1 VDC
Omron Electronics Inc-EMC Div B3J-3400	Keyswitch Illuminated	Through Hole	Button Square	LED Yellow	24 V	PC Pin	50 mA	70 °C	-25 °C	3000000 Cycles	Blue	No Marking	SPST-NO	3000000 Cycles	Off-Mom	2 VDC
Omron Electronics Inc-EMC Div B3J-5000	Keyswitch Illuminated	Through Hole	Button Square	LED Red/Yellow	24 V	PC Pin	50 mA	70 °C	-25 °C	3000000 Cycles	Gray Light	No Marking	SPST-NO	3000000 Cycles	Off-Mom	2 VDC
Omron Electronics Inc-EMC Div B3J-6100	Keyswitch Illuminated	Through Hole	Button Square	Green/Red LED	24 V	PC Pin	50 mA	70 °C	-25 °C	3000000 Cycles	Black	No Marking	SPST-NO	3000000 Cycles	Off-Mom	2 VDC 2.1 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.75
		10	$ 3.35
		25	$ 3.17
		50	$ 3.05
		100	$ 2.91
		300	$ 2.86
