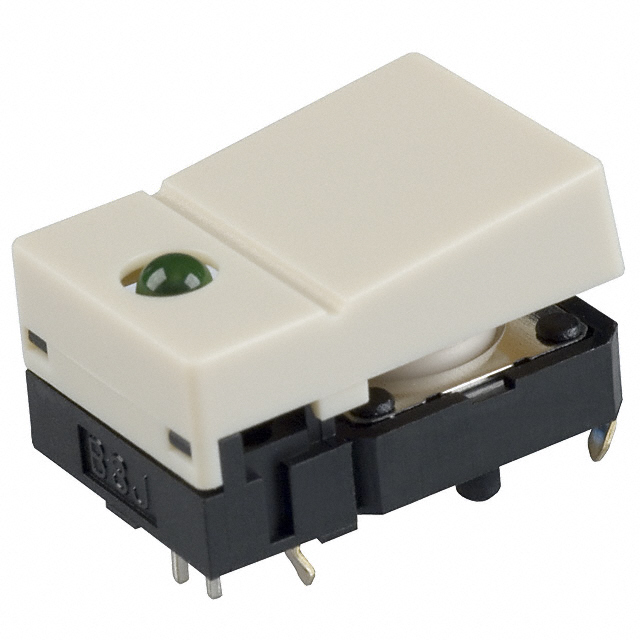

B3J-4000

Active

Omron Electronics Inc-EMC Div

SWITCH PUSH SPST-NO 0.05A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet

B3J-4000

Active

Omron Electronics Inc-EMC Div

SWITCH PUSH SPST-NO 0.05A 24V

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	B3J-4000

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	SPST-NO
Color - Actuator/Cap	Gray, Light
Current Rating (Amps)	50 mA
Electrical Life	3000000 Cycles
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	2.1 VDC
Mechanical Life	3000000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Switch Function	Off-Mom
Termination Style	PC Pin
Type	Keyswitch, Illuminated
Voltage Rating - DC	24 V

B3J Series

Part	Type	Mounting Type	Actuator Type	Illumination Type, Color	Voltage Rating - DC	Termination Style	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Color - Actuator/Cap	Actuator Marking	Circuit	Electrical Life	Switch Function	Illumination Voltage (Nominal)
Omron Electronics Inc-EMC Div B3J-6000	Keyswitch Illuminated	Through Hole	Button Square	Green/Red LED	24 V	PC Pin	50 mA	70 °C	-25 °C	3000000 Cycles	Gray Light	No Marking	SPST-NO	3000000 Cycles	Off-Mom	2 VDC 2.1 VDC
Omron Electronics Inc-EMC Div B3J-2000	Keyswitch Illuminated	Through Hole	Button Square	LED Red	24 V	PC Pin	50 mA	70 °C	-25 °C	3000000 Cycles	Gray Light	No Marking	SPST-NO	3000000 Cycles	Off-Mom	2 VDC
Omron Electronics Inc-EMC Div B3J-4000	Keyswitch Illuminated	Through Hole	Button Square	Green LED	24 V	PC Pin	50 mA	70 °C	-25 °C	3000000 Cycles	Gray Light	No Marking	SPST-NO	3000000 Cycles	Off-Mom	2.1 VDC
Omron Electronics Inc-EMC Div B3J-6300	Keyswitch Illuminated	Through Hole	Button Square	Green/Red LED	24 V	PC Pin	50 mA	70 °C	-25 °C	3000000 Cycles	Yellow	No Marking	SPST-NO	3000000 Cycles	Off-Mom	2 VDC 2.1 VDC
Omron Electronics Inc-EMC Div B3J-2300	Keyswitch Illuminated	Through Hole	Button Square	LED Red	24 V	PC Pin	50 mA	70 °C	-25 °C	3000000 Cycles	Yellow	No Marking	SPST-NO	3000000 Cycles	Off-Mom	2 VDC
Omron Electronics Inc-EMC Div B3J-3100	Keyswitch Illuminated	Through Hole	Button Square	LED Yellow	24 V	PC Pin	50 mA	70 °C	-25 °C	3000000 Cycles	Black	No Marking	SPST-NO	3000000 Cycles	Off-Mom	2 VDC
Omron Electronics Inc-EMC Div B3J-6200	Keyswitch Illuminated	Through Hole	Button Square	Green/Red LED	24 V	PC Pin	50 mA	70 °C	-25 °C	3000000 Cycles	Orange	No Marking	SPST-NO	3000000 Cycles	Off-Mom	2 VDC 2.1 VDC
Omron Electronics Inc-EMC Div B3J-3400	Keyswitch Illuminated	Through Hole	Button Square	LED Yellow	24 V	PC Pin	50 mA	70 °C	-25 °C	3000000 Cycles	Blue	No Marking	SPST-NO	3000000 Cycles	Off-Mom	2 VDC
Omron Electronics Inc-EMC Div B3J-5000	Keyswitch Illuminated	Through Hole	Button Square	LED Red/Yellow	24 V	PC Pin	50 mA	70 °C	-25 °C	3000000 Cycles	Gray Light	No Marking	SPST-NO	3000000 Cycles	Off-Mom	2 VDC
Omron Electronics Inc-EMC Div B3J-6100	Keyswitch Illuminated	Through Hole	Button Square	Green/Red LED	24 V	PC Pin	50 mA	70 °C	-25 °C	3000000 Cycles	Black	No Marking	SPST-NO	3000000 Cycles	Off-Mom	2 VDC 2.1 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.15
		10	$ 3.71
		300	$ 3.07
		1200	$ 2.70
