DTP10-4P
ActiveTE Connectivity Raychem Cable Protection

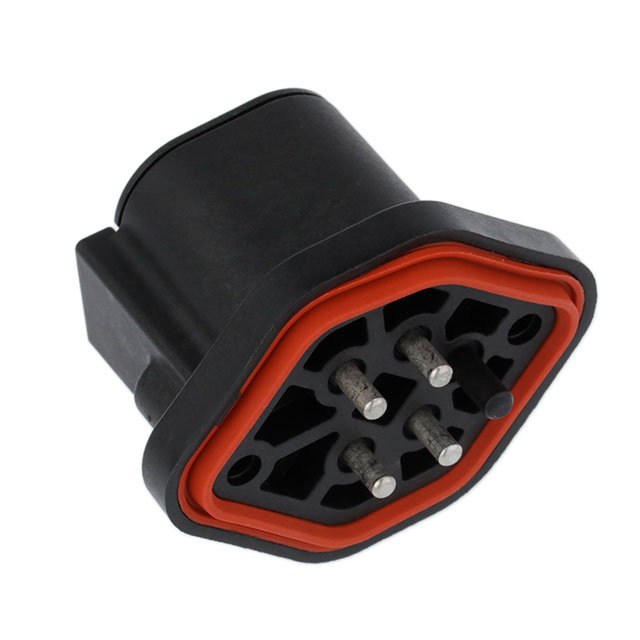

RECEPTACLE HEADER 4PIN ASSEMBLY
Deep-Dive with AI
Search across all available documentation for this part.
DTP10-4P
ActiveTE Connectivity Raychem Cable Protection
RECEPTACLE HEADER 4PIN ASSEMBLY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DTP10-4P |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.197 in |
| Contact Length - Post | 5 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 25 A |
| Fastening Type | Latch Holder |
| Features | Sealed, Mounting Flange |
| Ingress Protection | IP6K9K, IP68 |
| Insulation Color | Black |
| Insulation Height | 1.055 in |
| Insulation Height | 26.8 mm |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 10.16 mm |
| Pitch - Mating | 0.4 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VAC |
