CWR11JH225KB

Active

KEMET

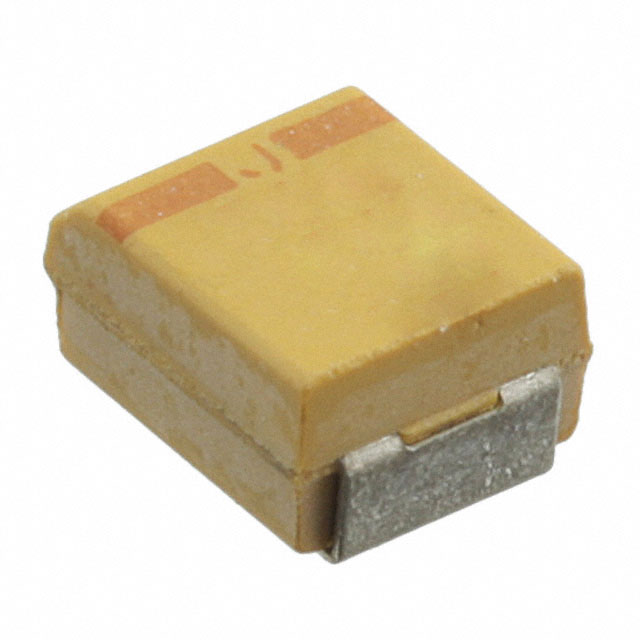

CAP TANT 2.2UF 10% 20V 1411

Search across all available documentation for this part.

Active

KEMET

CAP TANT 2.2UF 10% 20V 1411

Technical Specifications

Parameters and characteristics for this part

Specification	CWR11JH225KB

Capacitance	2.2 µF
ESR (Equivalent Series Resistance)	5 Ohm
Failure Rate	B (0.1%)
Features	High Reliability
Grade	Military
Height - Seated (Max) [Max] [z]	2.1 mm
Height - Seated (Max) [Max] [z]	0.083 "
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	1411
Package / Case	3528 Metric
Qualification	MIL-PRF-55365/8
Size / Dimension [x]	0.138 "
Size / Dimension [x]	3.5 mm
Size / Dimension [y]	0.11 in
Size / Dimension [y]	2.8 mm
Tolerance	10 %
Type	Molded
Voltage - Rated	20 V

Part	Package / Case	Package / Case	Mounting Type	Failure Rate	ESR (Equivalent Series Resistance)	Capacitance	Tolerance	Features	Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Rated	Qualification	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Grade	Size / Dimension [y]	Size / Dimension [x]	Manufacturer Size Code	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET CWR11JH225KB	1411	3528 Metric	Surface Mount	B (0.1%)	5 Ohm	2.2 µF	10 %	High Reliability	Molded	0.11 in	2.8 mm	0.138 "	3.5 mm	20 V	MIL-PRF-55365/8	2.1 mm	0.083 "	-55 °C	125 °C	Military
KEMET CWR11JH335KB	1411	3528 Metric	Surface Mount	B (0.1%)	4 Ohm	3.3 µF	10 %	High Reliability	Molded	0.11 in	2.8 mm	0.138 "	3.5 mm	20 V	MIL-PRF-55365/8	2.1 mm	0.083 "	-55 °C	125 °C	Military
KEMET CWR11JH105JB	1206 (3216 Metric)		Surface Mount	B (0.1%)	10 Ohm	1 µF	5 %	High Reliability	Molded		1.6 mm		3.2 mm	20 V	MIL-PRF-55365/8			-55 °C	125 °C	Military	0.063 in	0.126 "	A	0.071 "	1.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.78
	Digi-Reel®	1	$ 2.78
	Tape & Reel (TR)	2000	$ 1.12

General part information

2.2 µF Molded Tantalum Capacitors 20 V 1411 (3528 Metric) 5Ohm

Technical documentation and resources

No documents available
