CWR11JH105JB

Active

KEMET

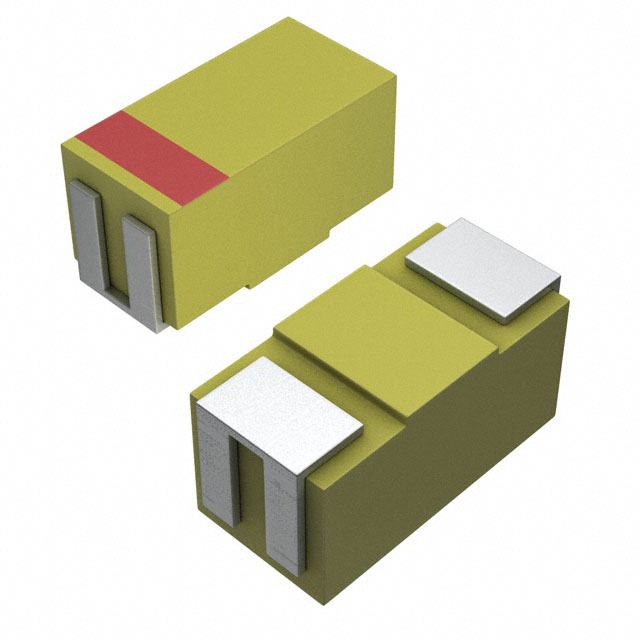

CAP TANT SOLID 1UF 20V A CASE 5% (3.2 X 1.6 X 1.6MM) INWARD L SMD 3216-18 (0.1%FR) 10 OHM 125°C T/R

Search across all available documentation for this part.

Active

KEMET

CAP TANT SOLID 1UF 20V A CASE 5% (3.2 X 1.6 X 1.6MM) INWARD L SMD 3216-18 (0.1%FR) 10 OHM 125°C T/R

Technical Specifications

Parameters and characteristics for this part

Specification	CWR11JH105JB

Capacitance	1 µF
ESR (Equivalent Series Resistance)	10 Ohm
Failure Rate	B (0.1%)
Features	High Reliability
Grade	Military
Height - Seated (Max) [Max]	0.071 "
Height - Seated (Max) [Max]	1.8 mm
Manufacturer Size Code	A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	1206 (3216 Metric)
Qualification	MIL-PRF-55365/8
Size / Dimension [x]	0.126 "
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Tolerance	5 %
Type	Molded
Voltage - Rated	20 V

Part	Package / Case	Package / Case	Mounting Type	Failure Rate	ESR (Equivalent Series Resistance)	Capacitance	Tolerance	Features	Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Rated	Qualification	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Grade	Size / Dimension [y]	Size / Dimension [x]	Manufacturer Size Code	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET CWR11JH225KB	1411	3528 Metric	Surface Mount	B (0.1%)	5 Ohm	2.2 µF	10 %	High Reliability	Molded	0.11 in	2.8 mm	0.138 "	3.5 mm	20 V	MIL-PRF-55365/8	2.1 mm	0.083 "	-55 °C	125 °C	Military
KEMET CWR11JH335KB	1411	3528 Metric	Surface Mount	B (0.1%)	4 Ohm	3.3 µF	10 %	High Reliability	Molded	0.11 in	2.8 mm	0.138 "	3.5 mm	20 V	MIL-PRF-55365/8	2.1 mm	0.083 "	-55 °C	125 °C	Military
KEMET CWR11JH105JB	1206 (3216 Metric)		Surface Mount	B (0.1%)	10 Ohm	1 µF	5 %	High Reliability	Molded		1.6 mm		3.2 mm	20 V	MIL-PRF-55365/8			-55 °C	125 °C	Military	0.063 in	0.126 "	A	0.071 "	1.8 mm
