TC-400-NMC-2

Active

Amphenol Times Microwave Systems

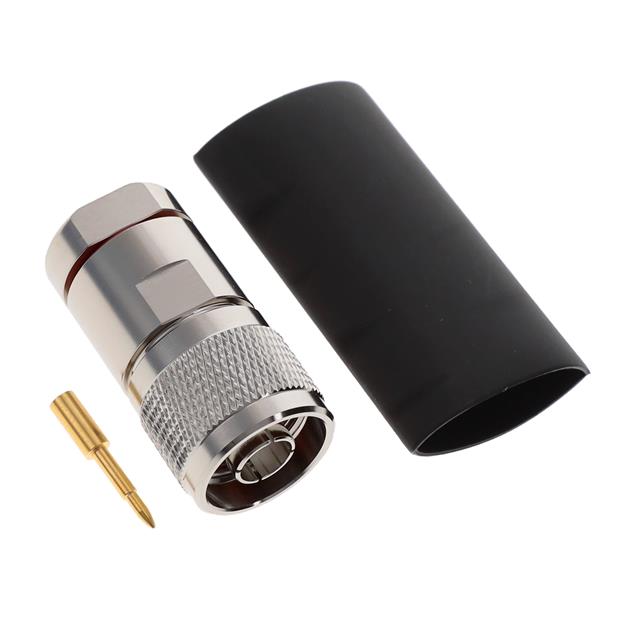

N-MALE (PLUG) CLAMP CONNECTOR

Deep-Dive with AI

Search across all available documentation for this part.

TC-400-NMC-2

Active

Amphenol Times Microwave Systems

N-MALE (PLUG) CLAMP CONNECTOR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TC-400-NMC-2	TC-400 Series

Body Finish	Nickel	White Bronze, Nickel, Silver
Body Material	-	Brass, Stainless Steel
Cable Group	LMR-400	LMR-400, LMR-400-75
Center Contact Material	-	Brass, Phosphor Bronze, Beryllium Copper
Center Contact Plating	Gold	Gold, Silver
Connector Style	N Type	HN Type, N Type, BNC, RP-TNC, 7/16 DIN, RP-N Type, TNC, QN, SMA, Mini, UHF, QDS, 4.3/10
Connector Type	Male Pin, Plug	Male Pin, Plug, Female Socket, Jack
Contact Termination	Solder	Solder
Dielectric Material	-	Polytetrafluoroethylene (PTFE), Polyoxymethylene (POM)
Fastening Type	-	Bayonet Lock, Snap-On
Frequency - Max [Max]	2.5 GHz	1 - 6000 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 - 75 Ohms
Ingress Protection	-	IP67 - Dust Tight, Waterproof
Insertion Loss	-	0.05 - 0.15 dB
Mating Cycles	-	500
Mounting Feature	-	Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	75 ░C	75 - 165 °C
Operating Temperature [Min]	-5 °C	-65 - -5 °C
Shield Termination	Clamp	Crimp, Clamp
Voltage Rating	-	500 - 5000 V

TC-400 Series

HN-MALE (PLUG) CRIMP RIGHT ANGLE

Part	Body Finish	Connector Type	Connector Style	Center Contact Plating	Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Shield Termination	Center Contact Material	Number of Ports	Contact Termination	Dielectric Material	Frequency - Max [Max]	Mounting Type	Mating Cycles	Cable Group	Housing Color	Fastening Type	Voltage Rating	Mounting Feature	Ingress Protection	Insertion Loss
Amphenol Times Microwave Systems TC-400-HNM-RA	White Bronze	Male Pin, Plug	HN Type	Gold	50 Ohms	155 °C	-55 °C	Brass	Crimp	Brass	1	Solder	Polytetrafluoroethylene (PTFE)	3 GHz	Free Hanging (In-Line), Right Angle	500	LMR-400	Silver
Amphenol Times Microwave Systems TC-400-NMC-2	Nickel	Male Pin, Plug	N Type	Gold	50 Ohms	75 ░C	-5 °C		Clamp		1	Solder		2.5 GHz	Free Hanging (In-Line)		LMR-400	Silver
Amphenol Times Microwave Systems TC-400-NM-75/50	Nickel	Male Pin, Plug	N Type	Gold	50 Ohms	85 °C	-40 °C	Brass	Crimp		1	Solder	Polytetrafluoroethylene (PTFE)	2 GHz	Free Hanging (In-Line)		LMR-400-75	Silver
Amphenol Times Microwave Systems TC-400-BM-75-X	White Bronze	Male Pin, Plug	BNC	Gold	75 Ohms	125 °C	-55 °C	Brass	Crimp	Brass	1	Solder	Polytetrafluoroethylene (PTFE)	2 GHz	Free Hanging (In-Line)	500	LMR-400-75	Silver	Bayonet Lock	500 V
Amphenol Times Microwave Systems TC-400-HNM	Silver	Male Pin, Plug	HN Type	Silver	50 Ohms	85 °C	-40 °C	Brass	Clamp	Brass	1	Solder	Polytetrafluoroethylene (PTFE)	1 GHz	Free Hanging (In-Line)		LMR-400	Silver		5000 V
Amphenol Times Microwave Systems TC-400-TM-RP	Nickel	Female Socket, Plug	RP-TNC	Gold	50 Ohms	125 °C	-55 °C	Brass	Crimp	Phosphor Bronze	1	Solder	Polytetrafluoroethylene (PTFE)	4 GHz	Free Hanging (In-Line)	500	LMR-400	Silver		500 V
Amphenol Times Microwave Systems TC-400-NFC-BH (A)	White Bronze	Female Socket, Jack	N Type	Gold	50 Ohms	165 °C	-65 ░C	Brass	Clamp	Beryllium Copper	1	Solder	Polytetrafluoroethylene (PTFE)	11 GHz			LMR-400	Silver			Bulkhead - Front Side Nut
Amphenol Times Microwave Systems TC-400-TM-RP-RA-D	White Bronze	Jack, Male Pin	RP-TNC	Gold	50 Ohms	85 °C	-40 °C		Crimp		1	Solder		6000 MHz	Free Hanging (In-Line), Right Angle		LMR-400	Silver
Amphenol Times Microwave Systems TC-400-716M-X	White Bronze	Male Pin, Plug	7/16 DIN	Gold	50 Ohms	85 °C	-40 °C	Brass	Crimp	Beryllium Copper	1	Solder	Polytetrafluoroethylene (PTFE)	6000 MHz	Free Hanging (In-Line)		LMR-400	Silver				IP67 - Dust Tight, Waterproof	0.05 dB
Amphenol Times Microwave Systems TC-400-NMH-RA-D	White Bronze	Male Pin, Plug	N Type	Gold	50 Ohms	155 °C	-55 °C	Brass	Crimp	Brass	1	Solder	Polytetrafluoroethylene (PTFE)	11 GHz	Free Hanging (In-Line), Right Angle	500	LMR-400	Silver		1000 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 16.86
		10	$ 14.61
		25	$ 13.85
		50	$ 13.65
		100	$ 12.04
		250	$ 11.24
		500	$ 11.00

Description

General part information

TC-400 Series

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
