TC-400-NMH-RA-D

Active

Amphenol Times Microwave Systems

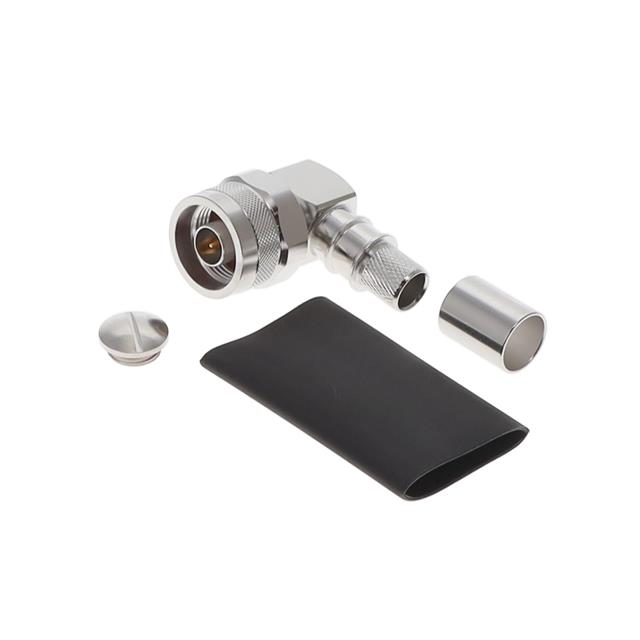

N-MALE (PLUG) RIGHT ANGLE CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TC-400-NMH-RA-D

Active

Amphenol Times Microwave Systems

N-MALE (PLUG) RIGHT ANGLE CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 22.31
		1	$ 33.30
		10	$ 19.54
		10	$ 25.03
		25	$ 18.69
		25	$ 22.91
		50	$ 18.09
		100	$ 17.49
		100	$ 20.55
		250	$ 16.52
		250	$ 19.79
		500	$ 16.04

Description

General part information

TC-400 Series

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TC-400-NMH-RA-D	TC-400 Series

Body Finish	White Bronze	White Bronze, Nickel, Silver
Body Material	Brass	Brass, Stainless Steel
Cable Group	LMR-400	LMR-400, LMR-400-75
Center Contact Material	Brass	Brass, Phosphor Bronze, Beryllium Copper
Center Contact Plating	Gold	Gold, Silver
Connector Style	N Type	HN Type, N Type, BNC, RP-TNC, 7/16 DIN, RP-N Type, TNC, QN, SMA, Mini, UHF, QDS, 4.3/10
Connector Type	Male Pin, Plug	Male Pin, Plug, Female Socket, Jack
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE), Polyoxymethylene (POM)
Fastening Type	-	Bayonet Lock, Snap-On
Frequency - Max [Max]	11 GHz	1 - 6000 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 - 75 Ohms
Ingress Protection	-	IP67 - Dust Tight, Waterproof
Insertion Loss	-	0.05 - 0.15 dB
Mating Cycles	500	500
Mounting Feature	-	Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	155 °C	75 - 165 °C
Operating Temperature [Min]	-55 °C	-65 - -5 °C
Shield Termination	Crimp	Crimp, Clamp
Voltage Rating	1000 VDC	500 - 5000 V

TC-400 Series

HN-MALE (PLUG) CRIMP RIGHT ANGLE

Part	Body Finish	Connector Type	Connector Style	Center Contact Plating	Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Shield Termination	Center Contact Material	Number of Ports	Contact Termination	Dielectric Material	Frequency - Max [Max]	Mounting Type	Mating Cycles	Cable Group	Housing Color	Fastening Type	Voltage Rating	Mounting Feature	Ingress Protection	Insertion Loss
Amphenol Times Microwave Systems TC-400-HNM-RA	White Bronze	Male Pin, Plug	HN Type	Gold	50 Ohms	155 °C	-55 °C	Brass	Crimp	Brass	1	Solder	Polytetrafluoroethylene (PTFE)	3 GHz	Free Hanging (In-Line), Right Angle	500	LMR-400	Silver
Amphenol Times Microwave Systems TC-400-NMC-2	Nickel	Male Pin, Plug	N Type	Gold	50 Ohms	75 ░C	-5 °C		Clamp		1	Solder		2.5 GHz	Free Hanging (In-Line)		LMR-400	Silver
Amphenol Times Microwave Systems TC-400-NM-75/50	Nickel	Male Pin, Plug	N Type	Gold	50 Ohms	85 °C	-40 °C	Brass	Crimp		1	Solder	Polytetrafluoroethylene (PTFE)	2 GHz	Free Hanging (In-Line)		LMR-400-75	Silver
Amphenol Times Microwave Systems TC-400-BM-75-X	White Bronze	Male Pin, Plug	BNC	Gold	75 Ohms	125 °C	-55 °C	Brass	Crimp	Brass	1	Solder	Polytetrafluoroethylene (PTFE)	2 GHz	Free Hanging (In-Line)	500	LMR-400-75	Silver	Bayonet Lock	500 V
Amphenol Times Microwave Systems TC-400-HNM	Silver	Male Pin, Plug	HN Type	Silver	50 Ohms	85 °C	-40 °C	Brass	Clamp	Brass	1	Solder	Polytetrafluoroethylene (PTFE)	1 GHz	Free Hanging (In-Line)		LMR-400	Silver		5000 V
Amphenol Times Microwave Systems TC-400-TM-RP	Nickel	Female Socket, Plug	RP-TNC	Gold	50 Ohms	125 °C	-55 °C	Brass	Crimp	Phosphor Bronze	1	Solder	Polytetrafluoroethylene (PTFE)	4 GHz	Free Hanging (In-Line)	500	LMR-400	Silver		500 V
Amphenol Times Microwave Systems TC-400-NFC-BH (A)	White Bronze	Female Socket, Jack	N Type	Gold	50 Ohms	165 °C	-65 ░C	Brass	Clamp	Beryllium Copper	1	Solder	Polytetrafluoroethylene (PTFE)	11 GHz			LMR-400	Silver			Bulkhead - Front Side Nut
Amphenol Times Microwave Systems TC-400-TM-RP-RA-D	White Bronze	Jack, Male Pin	RP-TNC	Gold	50 Ohms	85 °C	-40 °C		Crimp		1	Solder		6000 MHz	Free Hanging (In-Line), Right Angle		LMR-400	Silver
Amphenol Times Microwave Systems TC-400-716M-X	White Bronze	Male Pin, Plug	7/16 DIN	Gold	50 Ohms	85 °C	-40 °C	Brass	Crimp	Beryllium Copper	1	Solder	Polytetrafluoroethylene (PTFE)	6000 MHz	Free Hanging (In-Line)		LMR-400	Silver				IP67 - Dust Tight, Waterproof	0.05 dB
Amphenol Times Microwave Systems TC-400-NMH-RA-D	White Bronze	Male Pin, Plug	N Type	Gold	50 Ohms	155 °C	-55 °C	Brass	Crimp	Brass	1	Solder	Polytetrafluoroethylene (PTFE)	11 GHz	Free Hanging (In-Line), Right Angle	500	LMR-400	Silver		1000 VDC
