L717SDB25POL2C309

Active

Amphenol ICC (Commercial Products)

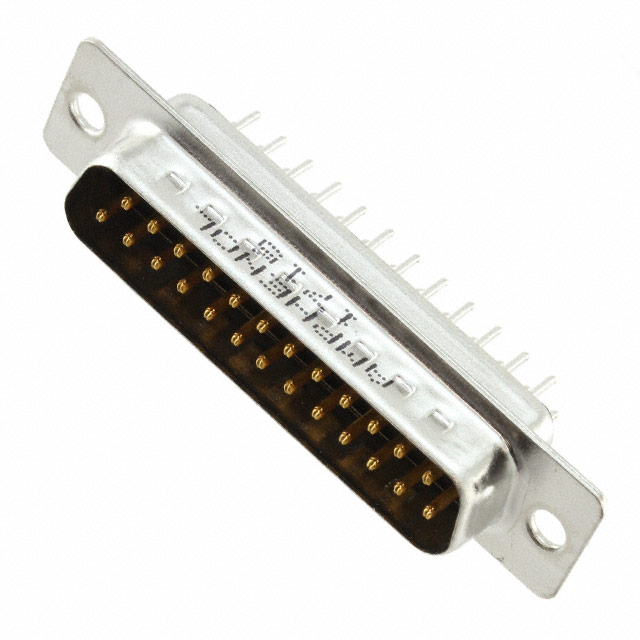

CONN D-SUB PLUG 25POS VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L717SDB25POL2C309

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 25POS VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L717SDB25POL2C309

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder
Voltage Rating	250 VDC

L717SDB25 Series

Part	Connector Style	Number of Rows	Dielectric Material	Color	Contact Form	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Flange Feature	Contact Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish	Voltage Rating	Features	Material Flammability Rating	Wire Gauge	Connector Type	Contact Finish Thickness	Mounting Type	Backset Spacing	Backset Spacing	Termination	Contact Finish Thickness	Contact Finish Thickness
Amphenol ICC (Commercial Products) L717SDB25PVFM	D-Sub	2	Thermoplastic Glass Filled	Black	Stamped	3 A	105 ░C	-55 °C	Brass	Female Screwlock (M3) Mating Side	Signal	B DB	3	Gold	250 VDC	Grounding Indents	UL94 V-0	20 AWG	Male Pins Plug	Flash	Free Hanging (In-Line)
Amphenol ICC (Commercial Products) L717SDB25PA4CH4F	D-Sub	2	Thermoplastic Glass Filled	Black	Stamped	3 A	125 °C	-55 °C	Brass	Female Screwlock (4-40) Mating Side	Signal	B DB	3	Gold	250 VDC	Board Lock Grounding Indents	UL94 V-0		Male Pins Plug	Flash	Through Hole Right Angle	8.08 mm	0.318 "	Solder
Amphenol ICC (Commercial Products) L717SDB25P1ACH3R	D-Sub	2	Thermoplastic Glass Filled	Black	Stamped	3 A	125 °C	-55 °C	Brass	Board Side (M3)	Signal	B DB	3	Gold	250 VDC	Board Lock Grounding Indents	UL94 V-0		Male Pins Plug	Flash	Through Hole Right Angle	10.3 mm	0.406 in	Solder
Amphenol ICC (Commercial Products) L717SDB25PA4CH4RC309	D-Sub	2	Thermoplastic Glass Filled	Black	Stamped	3 A	125 °C	-55 °C	Brass	4-40 Board Side	Signal	B DB	3	Gold	250 VDC	Board Lock Grounding Indents	UL94 V-0		Male Pins Plug		Through Hole Right Angle	8.08 mm	0.318 "	Solder	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L717SDB25PVFC309	D-Sub	2	Thermoplastic Glass Filled	Black	Stamped	3 A	105 ░C	-55 °C	Brass	Female Screwlock (4-40) Mating Side	Signal	B DB	3	Gold	250 VDC	Grounding Indents	UL94 V-0	20 AWG	Male Pins Plug		Free Hanging (In-Line)				0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L717SDB25POL2C309	D-Sub	2	Thermoplastic Glass Filled	Black	Stamped	3 A	125 °C	-55 °C	Brass	Housing/Shell (Unthreaded)	Signal	B DB	3	Gold	250 VDC	Grounding Indents	UL94 V-0		Male Pins Plug		Through Hole			Solder	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L717SDB25PA4CH3RC309	D-Sub	2	Thermoplastic Glass Filled	Black	Stamped	3 A	125 °C	-55 °C	Brass	Board Side (M3)	Signal	B DB	3	Gold	250 VDC	Board Lock Grounding Indents	UL94 V-0		Male Pins Plug		Through Hole Right Angle	8.08 mm	0.318 "	Solder	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L717SDB25PVFMC309	D-Sub	2	Thermoplastic Glass Filled	Black	Stamped	3 A	105 ░C	-55 °C	Brass	Female Screwlock (M3) Mating Side	Signal	B DB	3	Gold	250 VDC	Grounding Indents	UL94 V-0	20 AWG	Male Pins Plug		Free Hanging (In-Line)				0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L717SDB25PA4CH3R	D-Sub	2	Thermoplastic Glass Filled	Black	Stamped	3 A	125 °C	-55 °C	Brass	Board Side (M3)	Signal	B DB	3	Gold	250 VDC	Board Lock Grounding Indents	UL94 V-0		Male Pins Plug	Flash	Through Hole Right Angle	8.08 mm	0.318 "	Solder
Amphenol ICC (Commercial Products) L717SDB25PA4CH3FC309	D-Sub	2	Thermoplastic Glass Filled	Black	Stamped	3 A	125 °C	-55 °C	Brass	Female Screwlock (M3) Mating Side	Signal	B DB	3	Gold	250 VDC	Board Lock Grounding Indents	UL94 V-0		Male Pins Plug		Through Hole Right Angle	8.08 mm	0.318 "	Solder	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 2.36

Description

General part information

L717SDB25 Series

25 Position D-Sub Plug, Male Pins Connector
