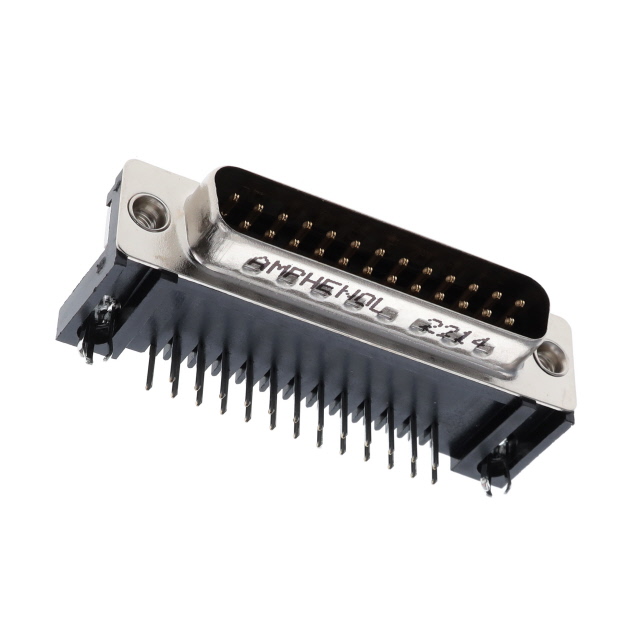

L717SDB25P1ACH3R
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB PLUG 25POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
L717SDB25P1ACH3R
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB PLUG 25POS R/A SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | L717SDB25P1ACH3R |
|---|---|
| Backset Spacing | 0.406 in |
| Backset Spacing | 10.3 mm |
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | Stamped |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Thermoplastic, Glass Filled |
| Features | Grounding Indents, Board Lock |
| Flange Feature | Board Side (M3) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
| Termination | Solder |
| Voltage Rating | 250 VDC |
L717SDB25 Series
| Part | Connector Style | Number of Rows | Dielectric Material | Color | Contact Form | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Flange Feature | Contact Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish | Voltage Rating | Features | Material Flammability Rating | Wire Gauge | Connector Type | Contact Finish Thickness | Mounting Type | Backset Spacing | Backset Spacing | Termination | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (Commercial Products) | D-Sub | 2 | Thermoplastic Glass Filled | Black | Stamped | 3 A | 105 ░C | -55 °C | Brass | Female Screwlock (M3) Mating Side | Signal | B DB | 3 | Gold | 250 VDC | Grounding Indents | UL94 V-0 | 20 AWG | Male Pins Plug | Flash | Free Hanging (In-Line) | |||||
Amphenol ICC (Commercial Products) | D-Sub | 2 | Thermoplastic Glass Filled | Black | Stamped | 3 A | 125 °C | -55 °C | Brass | Female Screwlock (4-40) Mating Side | Signal | B DB | 3 | Gold | 250 VDC | Board Lock Grounding Indents | UL94 V-0 | Male Pins Plug | Flash | Through Hole Right Angle | 8.08 mm | 0.318 " | Solder | |||
Amphenol ICC (Commercial Products) | D-Sub | 2 | Thermoplastic Glass Filled | Black | Stamped | 3 A | 125 °C | -55 °C | Brass | Board Side (M3) | Signal | B DB | 3 | Gold | 250 VDC | Board Lock Grounding Indents | UL94 V-0 | Male Pins Plug | Flash | Through Hole Right Angle | 10.3 mm | 0.406 in | Solder | |||
Amphenol ICC (Commercial Products) | D-Sub | 2 | Thermoplastic Glass Filled | Black | Stamped | 3 A | 125 °C | -55 °C | Brass | 4-40 Board Side | Signal | B DB | 3 | Gold | 250 VDC | Board Lock Grounding Indents | UL94 V-0 | Male Pins Plug | Through Hole Right Angle | 8.08 mm | 0.318 " | Solder | 0.76 Ám | 30 Áin | ||
Amphenol ICC (Commercial Products) | D-Sub | 2 | Thermoplastic Glass Filled | Black | Stamped | 3 A | 105 ░C | -55 °C | Brass | Female Screwlock (4-40) Mating Side | Signal | B DB | 3 | Gold | 250 VDC | Grounding Indents | UL94 V-0 | 20 AWG | Male Pins Plug | Free Hanging (In-Line) | 0.76 Ám | 30 Áin | ||||
Amphenol ICC (Commercial Products) | D-Sub | 2 | Thermoplastic Glass Filled | Black | Stamped | 3 A | 125 °C | -55 °C | Brass | Housing/Shell (Unthreaded) | Signal | B DB | 3 | Gold | 250 VDC | Grounding Indents | UL94 V-0 | Male Pins Plug | Through Hole | Solder | 0.76 Ám | 30 Áin | ||||
Amphenol ICC (Commercial Products) | D-Sub | 2 | Thermoplastic Glass Filled | Black | Stamped | 3 A | 125 °C | -55 °C | Brass | Board Side (M3) | Signal | B DB | 3 | Gold | 250 VDC | Board Lock Grounding Indents | UL94 V-0 | Male Pins Plug | Through Hole Right Angle | 8.08 mm | 0.318 " | Solder | 0.76 Ám | 30 Áin | ||
Amphenol ICC (Commercial Products) | D-Sub | 2 | Thermoplastic Glass Filled | Black | Stamped | 3 A | 105 ░C | -55 °C | Brass | Female Screwlock (M3) Mating Side | Signal | B DB | 3 | Gold | 250 VDC | Grounding Indents | UL94 V-0 | 20 AWG | Male Pins Plug | Free Hanging (In-Line) | 0.76 Ám | 30 Áin | ||||
Amphenol ICC (Commercial Products) | D-Sub | 2 | Thermoplastic Glass Filled | Black | Stamped | 3 A | 125 °C | -55 °C | Brass | Board Side (M3) | Signal | B DB | 3 | Gold | 250 VDC | Board Lock Grounding Indents | UL94 V-0 | Male Pins Plug | Flash | Through Hole Right Angle | 8.08 mm | 0.318 " | Solder | |||
Amphenol ICC (Commercial Products) | D-Sub | 2 | Thermoplastic Glass Filled | Black | Stamped | 3 A | 125 °C | -55 °C | Brass | Female Screwlock (M3) Mating Side | Signal | B DB | 3 | Gold | 250 VDC | Board Lock Grounding Indents | UL94 V-0 | Male Pins Plug | Through Hole Right Angle | 8.08 mm | 0.318 " | Solder | 0.76 Ám | 30 Áin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.13 | |
| 10 | $ 2.84 | |||
| 25 | $ 2.69 | |||
| 50 | $ 2.63 | |||
| 100 | $ 2.50 | |||
| 250 | $ 2.19 | |||
| 450 | $ 2.13 | |||
| 950 | $ 1.81 | |||
| 2400 | $ 1.69 | |||
Description
General part information
L717SDB25 Series
25 Position D-Sub Plug, Male Pins Connector
