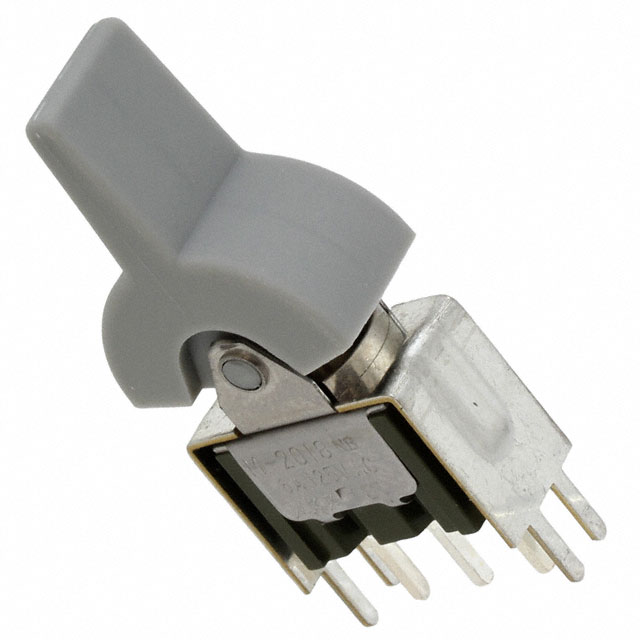

Specification	M2018TXW13-EH

Actuator Marking	No Marking
Actuator Type	Paddle
Approval Agency	UL, CSA
Circuit	SPDT
Color - Actuator/Cap	Gray
Current Rating	6 A, 3 A
Electrical Life (Cycles)	25000
Features	Epoxy Sealed Terminals
Mechanical Life (Cycles)	50000 Cycles
Mounting Type	Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Switch Function	Mom-Off-Mom
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

M2018TX Series

Part	Electrical Life (Cycles)	Mechanical Life (Cycles)	Switch Function	Voltage Rating - DC	Actuator Type	Features	Current Rating	Termination Style	Color - Actuator/Cap	Circuit	Mounting Type	Voltage Rating - AC	Operating Temperature (Max)	Operating Temperature (Min)	Actuator Marking	Approval Agency
NKK Switches M2018TXW13-EH	25000	50000 Cycles	Mom-Off-Mom	30 V	Paddle	Epoxy Sealed Terminals	3 A 6 A	PC Pin	Gray	SPDT	Through Hole	125 V	85 °C	-30 °C	No Marking	CSA UL
NKK Switches M2018TXG13-FB	50000	50000 Cycles	Mom-Off-Mom	28 V	Concave (Standard V)	Epoxy Sealed Terminals	0.4 VA	PC Pin	White	SPDT	Through Hole	28 V	85 °C	-30 °C	No Marking	CSA UL
NKK Switches M2018TXW13/CUL-GA	25000	50000 Cycles	Mom-Off-Mom	30 V	Paddle	Epoxy Sealed Terminals	3 A 6 A	PC Pin	Black	SPDT	Through Hole	125 V	85 °C	-30 °C	No Marking	CSA UL
NKK Switches M2018TXG13-DB	50000	50000 Cycles	Mom-Off-Mom	28 V	Concave (Standard V)	Epoxy Sealed Terminals	0.4 VA	PC Pin	White	SPDT	Through Hole	28 V	85 °C	-30 °C	No Marking	CSA UL
NKK Switches M2018TXW13-EE	25000	50000 Cycles	Mom-Off-Mom	30 V	Paddle	Epoxy Sealed Terminals	3 A 6 A	PC Pin	Yellow	SPDT	Through Hole	125 V	85 °C	-30 °C	No Marking	CSA UL
NKK Switches M2018TXG15	50000	50000 Cycles	Mom-Off-Mom	28 V	Actuator Arm Cap Required	Epoxy Sealed Terminals	0.4 VA	PC Pin		SPDT	Through Hole	28 V	85 °C	-30 °C	Varies by Cap	CSA UL
NKK Switches M2018TXG13-GH
NKK Switches M2018TXW13-FC	25000	50000 Cycles	Mom-Off-Mom	30 V	Concave (Standard V)	Epoxy Sealed Terminals	3 A 6 A	PC Pin	Red	SPDT	Through Hole	125 V	85 °C	-30 °C	No Marking	CSA UL
NKK Switches M2018TXG15-DH	50000	50000 Cycles	Mom-Off-Mom	28 V	Concave (Standard V)	Epoxy Sealed Terminals	0.4 VA	PC Pin	Gray	SPDT	Through Hole	28 V	85 °C	-30 °C	No Marking	CSA UL
NKK Switches M2018TXW13-GA	25000	50000 Cycles	Mom-Off-Mom	30 V	Paddle	Epoxy Sealed Terminals	3 A 6 A	PC Pin	Black	SPDT	Through Hole	125 V	85 °C	-30 °C	No Marking	CSA UL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

M2018TXW13-EH | Datasheet
