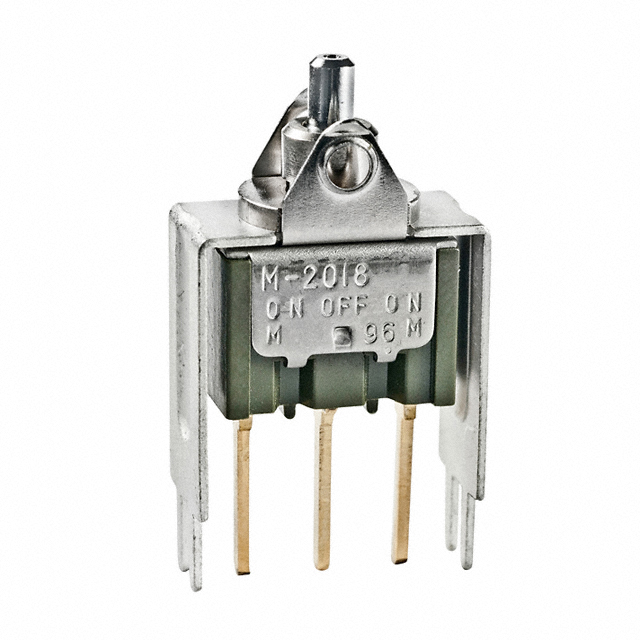

M2018TXG15

Obsolete

NKK Switches

SWITCH ROCKER SPDT 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M2018TXG15

Obsolete

NKK Switches

SWITCH ROCKER SPDT 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2018TXG15

Actuator Marking	Varies by Cap
Actuator Type	Actuator Arm, Cap Required
Approval Agency	CSA, UL
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	Mom-Off-Mom
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

M2018TX Series

Part	Switch Function	Voltage Rating - DC	Current Rating (Amps)	Features	Circuit	Electrical Life	Voltage Rating - AC	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Marking	Actuator Type	Termination Style	Mounting Type	Color - Actuator/Cap
NKK Switches M2018TXW13-EH	Mom-Off-Mom	30 V	3 A 6 A	Epoxy Sealed Terminals	SPDT	25000 Steps	125 V	CSA UL	-30 ░C	85 °C	No Marking	Paddle	PC Pin	Through Hole
NKK Switches M2018TXG13-FB	Mom-Off-Mom	28 V	0.4 VA	Epoxy Sealed Terminals	SPDT	50000 Cycles	28 V	CSA UL	-30 ░C	85 °C	No Marking	Concave (Standard V)	PC Pin	Through Hole	White
NKK Switches M2018TXW13/CUL-235C-DA	Mom-Off-Mom	30 V	3 A 6 A		SPDT	25000 Steps	125 V	CSA UL	-30 ░C	85 °C	No Marking	Concave (Standard V)			Black
NKK Switches M2018TXW13/CUL-GA	Mom-Off-Mom	30 V	3 A 6 A	Epoxy Sealed Terminals	SPDT	25000 Steps	125 V	CSA UL	-30 ░C	85 °C	No Marking	Paddle	PC Pin	Through Hole	Black
NKK Switches M2018TXG13-DB	Mom-Off-Mom	28 V	0.4 VA	Epoxy Sealed Terminals	SPDT	50000 Cycles	28 V	CSA UL	-30 ░C	85 °C	No Marking	Concave (Standard V)	PC Pin	Through Hole	White
NKK Switches M2018TXW13-EE	Mom-Off-Mom	30 V	3 A 6 A	Epoxy Sealed Terminals	SPDT	25000 Steps	125 V	CSA UL	-30 ░C	85 °C	No Marking	Paddle	PC Pin	Through Hole	Yellow
NKK Switches M2018TXG15	Mom-Off-Mom	28 V	0.4 VA	Epoxy Sealed Terminals	SPDT	50000 Cycles	28 V	CSA UL	-30 ░C	85 °C	Varies by Cap	Actuator Arm Cap Required	PC Pin	Through Hole
NKK Switches M2018TXG13-GH
NKK Switches M2018TXW13-FC	Mom-Off-Mom	30 V	3 A 6 A	Epoxy Sealed Terminals	SPDT	25000 Steps	125 V	CSA UL	-30 ░C	85 °C	No Marking	Concave (Standard V)	PC Pin	Through Hole	Red
NKK Switches M2018TXW13-GA	Mom-Off-Mom	30 V	3 A 6 A	Epoxy Sealed Terminals	SPDT	25000 Steps	125 V	CSA UL	-30 ░C	85 °C	No Marking	Paddle	PC Pin	Through Hole	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.98
		10	$ 7.17

Description

General part information

M2018TX Series

Rocker Switch SPDT 0.4VA (AC/DC) 28 V Through Hole
