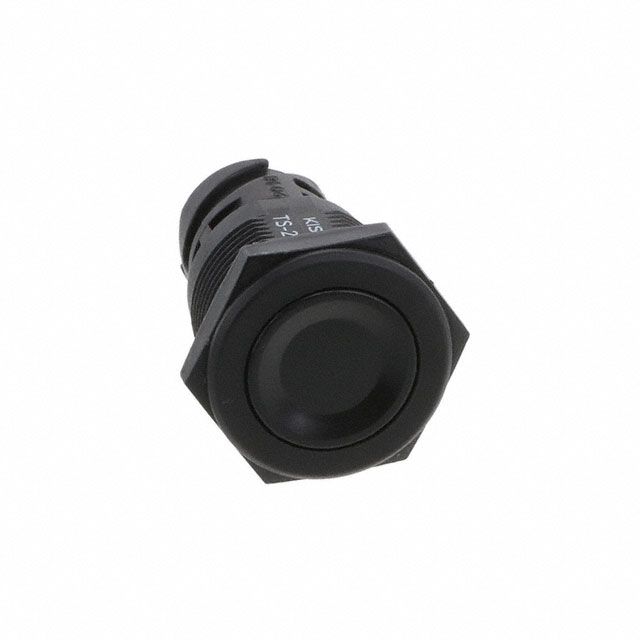

TS-221-SW11
ActiveTE Connectivity Raychem Cable Protection
PUSH BUTTON SWITCHES, THREE POLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TS-221-SW11
ActiveTE Connectivity Raychem Cable Protection
PUSH BUTTON SWITCHES, THREE POLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TS-221-SW11 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | 3PDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 5 A |
| Ingress Protection | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Panel Cutout Dimensions [diameter] | 30.5 mm |
| Switch Function | On-Mom |
| Termination Style | Connector |
| Type | Standard |
| Voltage Rating - DC | 32 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 49.91 | |
| 10 | $ 43.04 | |||
| 25 | $ 40.58 | |||
| 50 | $ 38.80 | |||
| 100 | $ 37.10 | |||
| 250 | $ 34.96 | |||
Description
General part information
TS-22 Series
Pushbutton Switch 3PDT Standard Panel Mount, Front
Documents
Technical documentation and resources
