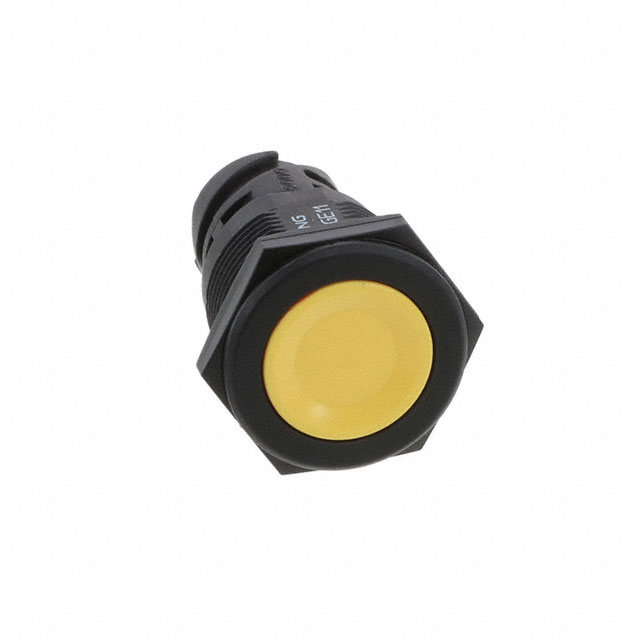

TS-221-GE11

Active

TE Connectivity Raychem Cable Protection

PUSH BUTTON SWITCHES, THREE POLE

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

PUSH BUTTON SWITCHES, THREE POLE

Technical Specifications

Parameters and characteristics for this part

Specification	TS-221-GE11

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	3PDT
Color - Actuator/Cap	Yellow
Current Rating (Amps)	5 A
Ingress Protection	IP69K - Dust Tight, High Temp Water Jets, Waterproof
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	30.5 mm
Switch Function	On-Mom
Termination Style	Connector
Type	Standard
Voltage Rating - DC	32 V

Part	Actuator Marking	Voltage Rating - DC	Switch Function	Color - Actuator/Cap	Circuit	Termination Style	Mechanical Life	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Ingress Protection	Mounting Type	Actuator Type	Type
TE Connectivity Raychem Cable Protection TS-221-RT41	No Marking	32 V	On-Mom	Red	3PDT	Connector	100000 Cycles	30.5 mm	90 °C	-40 °C	5 A	IP69K - Dust Tight High Temp Water Jets Waterproof	Panel Mount Front	Button Round	Standard
TE Connectivity Raychem Cable Protection TS-221-GE11	No Marking	32 V	On-Mom	Yellow	3PDT	Connector	100000 Cycles	30.5 mm	90 °C	-40 °C	5 A	IP69K - Dust Tight High Temp Water Jets Waterproof	Panel Mount Front	Button Round	Standard
TE Connectivity Raychem Cable Protection TS-221-SW11	No Marking	32 V	On-Mom	Black	3PDT	Connector	100000 Cycles	30.5 mm	90 °C	-40 °C	5 A	IP69K - Dust Tight High Temp Water Jets Waterproof	Panel Mount Front	Button Round	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch 3PDT Standard Panel Mount, Front
