745495-5

Obsolete

TE Connectivity Raychem Cable Protection

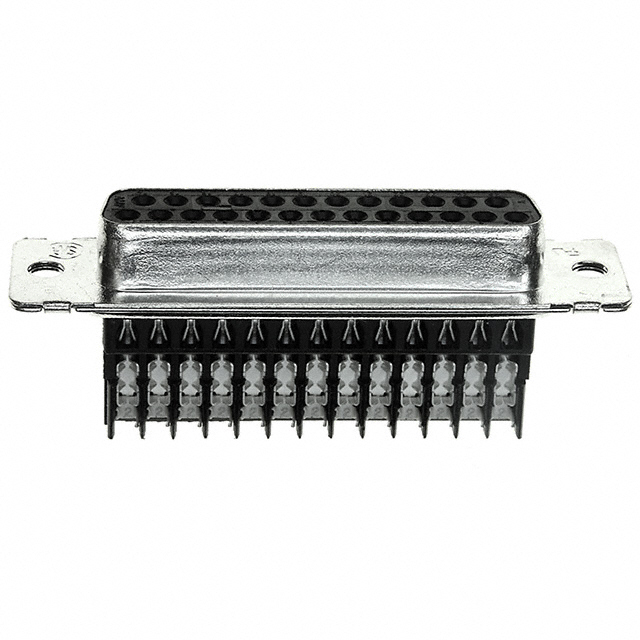

CONN D-SUB RCPT 25POS IDC

Deep-Dive with AI

Search across all available documentation for this part.

745495-5

Obsolete

TE Connectivity Raychem Cable Protection

CONN D-SUB RCPT 25POS IDC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	745495-5

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.025 µm
Contact Finish Thickness	1 µin
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	Varies by Wire Gauge
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	IDC, Discrete Wire
Voltage Rating	250 VDC
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	22 AWG

AMPLIMITE HDE Series

Part	Current Rating (Amps)	Flange Feature	Contact Finish	Connector Style	Material Flammability Rating	Color	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Voltage Rating	Number of Rows	Connector Type	Dielectric Material	Contact Type	Termination	Wire Gauge [Min]	Wire Gauge [Max]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Mounting Type	Contact Size	Type	Contact Form	Contact Termination	Features	Shell Size, Connector Layout	Number of Positions	Contact Finish Thickness	Shell Size, Connector Layout
TE Connectivity Raychem Cable Protection 2-745495-0	Varies by Wire Gauge	Housing/Shell (Unthreaded)	Gold	D-Sub	UL94 V-0	Black	Phosphor Bronze	105 ░C	-55 °C	0.025 µm	1 µin	250 VDC	2	Receptacle Female Sockets	Thermoplastic Glass Filled	Signal	Discrete Wire IDC	22 AWG	26 AWG	B DB	3	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 745495-2	Varies by Wire Gauge	Housing/Shell (Unthreaded)	Gold	D-Sub	UL94 V-0	Black	Phosphor Bronze	105 ░C	-55 °C	0.76 Ám	30 Áin	250 VDC	2	Receptacle Female Sockets	Thermoplastic Glass Filled	Signal	Discrete Wire IDC	22 AWG	26 AWG	B DB	3	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 1-745266-1			Gold				Phosphor Bronze									Male Pin		22 AWG	26 AWG				20	Signal	Stamped	Crimp	Insulation Support
TE Connectivity Raychem Cable Protection 1-745494-6	Varies by Wire Gauge	Housing/Shell (Unthreaded)	Gold	D-Sub	UL94 V-0	Black	Phosphor Bronze	105 ░C	-55 °C			250 VDC	2	Male Pins Plug	Thermoplastic Glass Filled	Signal	Discrete Wire IDC	22 AWG	26 AWG			Free Hanging (In-Line)					Grounding Indents	2	15	Flash
TE Connectivity Raychem Cable Protection 745494-5	Varies by Wire Gauge	Housing/Shell (Unthreaded)	Gold	D-Sub	UL94 V-0	Black	Phosphor Bronze	105 ░C	-55 °C			250 VDC	2	Male Pins Plug	Thermoplastic Glass Filled	Signal	Discrete Wire IDC	22 AWG	26 AWG			Free Hanging (In-Line)					Grounding Indents	2	15	Flash
TE Connectivity Raychem Cable Protection 745495-5	Varies by Wire Gauge	Housing/Shell (Unthreaded)	Gold	D-Sub	UL94 V-0	Black	Phosphor Bronze	105 ░C	-55 °C	0.025 µm	1 µin	250 VDC	2	Receptacle Female Sockets	Thermoplastic Glass Filled	Signal	Discrete Wire IDC	22 AWG	26 AWG	B DB	3	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 5787137-1		Cable Side	Gold			Black	Phosphor Bronze						2	Male Pins Plug	Polyester	Signal	Discrete Wire IDC	22 AWG	26 AWG			Free Hanging (In-Line)					Grounding Indents		37		4 (DC C)
TE Connectivity Raychem Cable Protection 745209-7	Varies by Wire Gauge	Housing/Shell (Unthreaded)	Gold	D-Sub	UL94 V-0	Black	Phosphor Bronze	105 ░C	-55 °C	0.76 Ám	30 Áin	250 VDC	2	Receptacle Female Sockets	Thermoplastic	Signal	Discrete Wire IDC	22 AWG	26 AWG	B DB	3	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 745207-2	Varies by Wire Gauge	Housing/Shell (Unthreaded)	Gold	D-Sub	UL94 V-0	Black		105 ░C	-55 °C	0.76 Ám	30 Áin	250 VDC	2	Male Pins Plug	Thermoplastic	Signal	Discrete Wire IDC	22 AWG	26 AWG			Free Hanging (In-Line)						2	15
TE Connectivity Raychem Cable Protection 745492-3	Varies by Wire Gauge	Housing/Shell (Unthreaded)	Gold	D-Sub	UL94 V-0	Black	Phosphor Bronze	105 ░C	-55 °C			250 VDC	2	Male Pins Plug	Thermoplastic Glass Filled	Signal	Discrete Wire IDC			DE E	1	Free Hanging (In-Line)					Grounding Indents		9	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AMPLIMITE HDE Series

25 Position D-Sub Receptacle, Female Sockets Connector
