745494-5

Obsolete

TE Connectivity Raychem Cable Protection

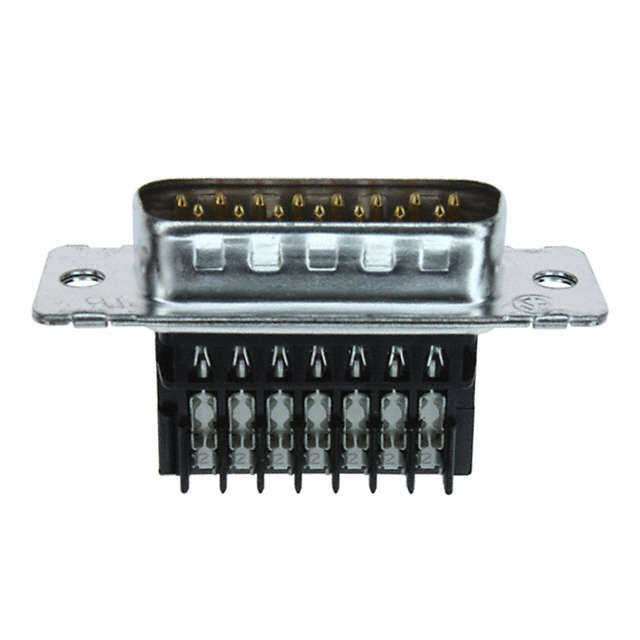

CONN D-SUB PLUG 15POS IDC

Deep-Dive with AI

Search across all available documentation for this part.

745494-5

Obsolete

TE Connectivity Raychem Cable Protection

CONN D-SUB PLUG 15POS IDC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	745494-5

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	Varies by Wire Gauge
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2
Termination	IDC, Discrete Wire
Voltage Rating	250 VDC
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	22 AWG

AMPLIMITE HDE Series

Part	Current Rating (Amps)	Flange Feature	Contact Finish	Connector Style	Material Flammability Rating	Color	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Voltage Rating	Number of Rows	Connector Type	Dielectric Material	Contact Type	Termination	Wire Gauge [Min]	Wire Gauge [Max]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Mounting Type	Contact Size	Type	Contact Form	Contact Termination	Features	Shell Size, Connector Layout	Number of Positions	Contact Finish Thickness	Shell Size, Connector Layout
TE Connectivity Raychem Cable Protection 2-745495-0	Varies by Wire Gauge	Housing/Shell (Unthreaded)	Gold	D-Sub	UL94 V-0	Black	Phosphor Bronze	105 ░C	-55 °C	0.025 µm	1 µin	250 VDC	2	Receptacle Female Sockets	Thermoplastic Glass Filled	Signal	Discrete Wire IDC	22 AWG	26 AWG	B DB	3	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 745495-2	Varies by Wire Gauge	Housing/Shell (Unthreaded)	Gold	D-Sub	UL94 V-0	Black	Phosphor Bronze	105 ░C	-55 °C	0.76 Ám	30 Áin	250 VDC	2	Receptacle Female Sockets	Thermoplastic Glass Filled	Signal	Discrete Wire IDC	22 AWG	26 AWG	B DB	3	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 1-745266-1			Gold				Phosphor Bronze									Male Pin		22 AWG	26 AWG				20	Signal	Stamped	Crimp	Insulation Support
TE Connectivity Raychem Cable Protection 1-745494-6	Varies by Wire Gauge	Housing/Shell (Unthreaded)	Gold	D-Sub	UL94 V-0	Black	Phosphor Bronze	105 ░C	-55 °C			250 VDC	2	Male Pins Plug	Thermoplastic Glass Filled	Signal	Discrete Wire IDC	22 AWG	26 AWG			Free Hanging (In-Line)					Grounding Indents	2	15	Flash
TE Connectivity Raychem Cable Protection 745494-5	Varies by Wire Gauge	Housing/Shell (Unthreaded)	Gold	D-Sub	UL94 V-0	Black	Phosphor Bronze	105 ░C	-55 °C			250 VDC	2	Male Pins Plug	Thermoplastic Glass Filled	Signal	Discrete Wire IDC	22 AWG	26 AWG			Free Hanging (In-Line)					Grounding Indents	2	15	Flash
TE Connectivity Raychem Cable Protection 745495-5	Varies by Wire Gauge	Housing/Shell (Unthreaded)	Gold	D-Sub	UL94 V-0	Black	Phosphor Bronze	105 ░C	-55 °C	0.025 µm	1 µin	250 VDC	2	Receptacle Female Sockets	Thermoplastic Glass Filled	Signal	Discrete Wire IDC	22 AWG	26 AWG	B DB	3	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 5787137-1		Cable Side	Gold			Black	Phosphor Bronze						2	Male Pins Plug	Polyester	Signal	Discrete Wire IDC	22 AWG	26 AWG			Free Hanging (In-Line)					Grounding Indents		37		4 (DC C)
TE Connectivity Raychem Cable Protection 745209-7	Varies by Wire Gauge	Housing/Shell (Unthreaded)	Gold	D-Sub	UL94 V-0	Black	Phosphor Bronze	105 ░C	-55 °C	0.76 Ám	30 Áin	250 VDC	2	Receptacle Female Sockets	Thermoplastic	Signal	Discrete Wire IDC	22 AWG	26 AWG	B DB	3	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 745207-2	Varies by Wire Gauge	Housing/Shell (Unthreaded)	Gold	D-Sub	UL94 V-0	Black		105 ░C	-55 °C	0.76 Ám	30 Áin	250 VDC	2	Male Pins Plug	Thermoplastic	Signal	Discrete Wire IDC	22 AWG	26 AWG			Free Hanging (In-Line)						2	15
TE Connectivity Raychem Cable Protection 745492-3	Varies by Wire Gauge	Housing/Shell (Unthreaded)	Gold	D-Sub	UL94 V-0	Black	Phosphor Bronze	105 ░C	-55 °C			250 VDC	2	Male Pins Plug	Thermoplastic Glass Filled	Signal	Discrete Wire IDC			DE E	1	Free Hanging (In-Line)					Grounding Indents		9	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AMPLIMITE HDE Series

15 Position D-Sub Plug, Male Pins Connector

Documents

Technical documentation and resources

No documents available
