M55-8002042-0300A

Active

Harwin Inc.

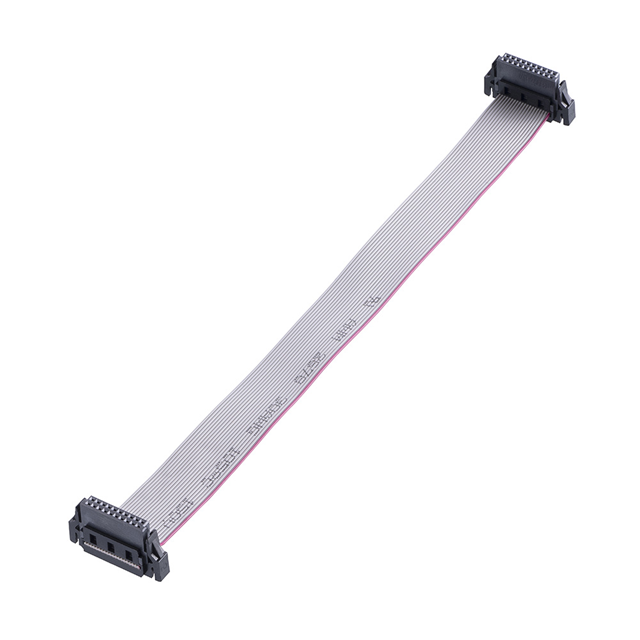

RIBBON CABLE, IDC RECEPTACLE TO IDC RECEPTACLE, 20 POSITIONS, 11.8 ", 300 MM, 1.27 MM

Search across all available documentation for this part.

Active

Harwin Inc.

RIBBON CABLE, IDC RECEPTACLE TO IDC RECEPTACLE, 20 POSITIONS, 11.8 ", 300 MM, 1.27 MM

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Cable Termination	Number of Rows	Connector Type	Pitch - Cable [x]	Pitch - Cable	Length [x]	Length [x]	Length [x]	Contact Finish	Pitch - Connector	Pitch - Connector	Shielding	Features
Harwin Inc. M55-8002042-0300A	20	IDC	2	Socket to Socket	0.025 in	0.64 mm	0.984 '	11.81 "	300 mm	Gold	0.05 in	1.27 mm	Unshielded	Latch Lock Polarizing Key
Harwin Inc. M55-8006842-0300A	68	IDC	2	Socket to Socket	0.025 in	0.64 mm	0.984 '	11.81 "	300 mm	Gold	0.05 in	1.27 mm	Unshielded	Latch Lock Polarizing Key

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Cable Assembly Rectangular Socket to Socket 0.984' (300.00mm, 11.81")
