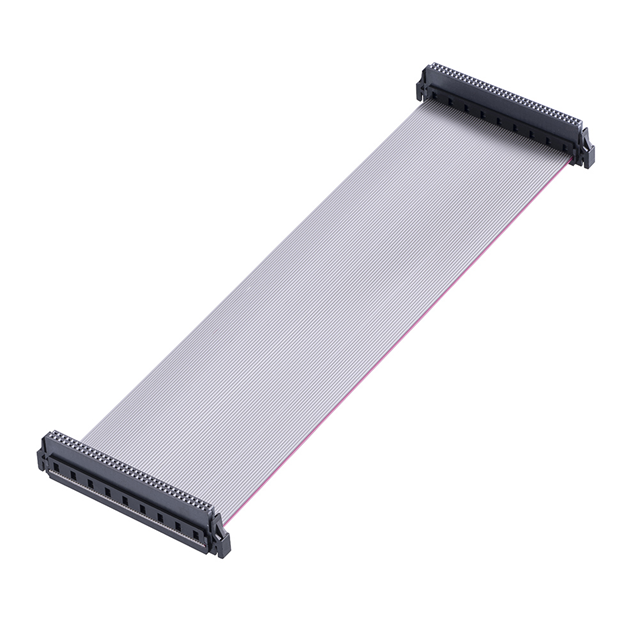

M55-8006842-0300A - M55-8006842-0150A

M55-8006842-0300A

Active
Harwin Inc.

CABLE ASSY, 68P IDC RCPT-IDC RCPT, 11.8" ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetM55-6001242R+2
M55-8006842-0300A - M55-8006842-0150A

M55-8006842-0300A

Active
Harwin Inc.

CABLE ASSY, 68P IDC RCPT-IDC RCPT, 11.8" ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheetM55-6001242R+2

Technical Specifications

Parameters and characteristics for this part

SpecificationM55-8006842-0300A
Cable TerminationIDC
Connector TypeSocket to Socket
Contact FinishGold
FeaturesLatch Lock, Polarizing Key
Length [x]0.984 '
Length [x]11.81 "
Length [x]300 mm
Number of Positions68
Number of Rows2
Pitch - Cable0.64 mm
Pitch - Cable [x]0.025 in
Pitch - Connector0.05 in
Pitch - Connector1.27 mm
ShieldingUnshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 46.78
10$ 39.76
25$ 37.27
50$ 35.50
100$ 33.80
250$ 31.71
NewarkEach 1$ 55.85
5$ 53.47
10$ 51.33
25$ 49.43
50$ 47.53
100$ 45.87

Description

General part information

M55-800 Series

68 Position Cable Assembly Rectangular Socket to Socket 0.984' (300.00mm, 11.81")
