EEG.2B.312.CLL
ActiveLEMO

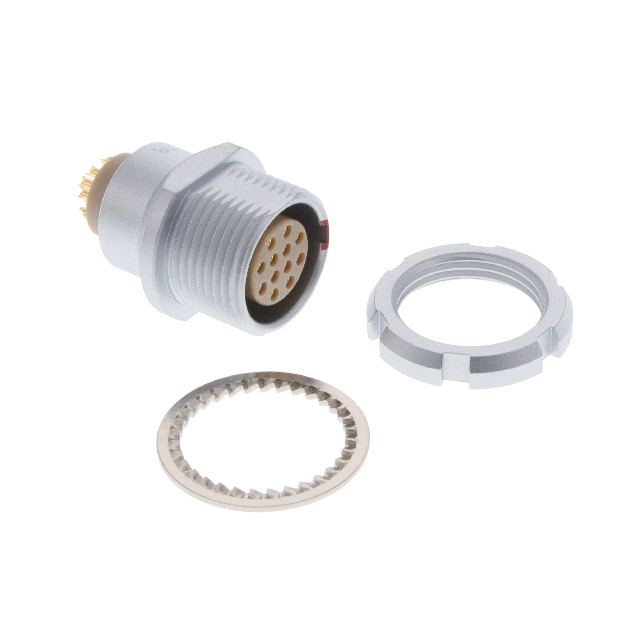

CONN RCPT FMALE 12P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EEG.2B.312.CLL
ActiveLEMO
CONN RCPT FMALE 12P SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EEG.2B.312.CLL | EEG.2B Series |
|---|---|---|
| Color | Silver | Silver |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 59 Áin | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1.5 Ám |
| Contact Material | Bronze | Bronze |
| Current Rating (Amps) | 7 A | 1.5 - 25 A |
| Fastening Type | Push-Pull | Push-Pull |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | - | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 12 | 2 - 26 |
| Number of Positions | - | 16 |
| Operating Temperature [Max] | 250 °C | 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | G | G |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 312 | 302 - 332 |
| Shielding | Shielded | Shielded |
| Termination | - | Crimp, Solder |
EEG.2B Series
CONN RCPT FMALE 6POS GOLD CRIMP
| Part | Shell Size - Insert | Insert Material | Mounting Feature | Number of Positions | Material Flammability Rating | Shell Material | Connector Type | Contact Material | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Termination | Shell Finish | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Color | Fastening Type | Orientation | Primary Material | Shielding | Current Rating (Amps) | Mounting Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO EEG.2B.306.CYM | 306 | Polyetheretherketone (PEEK) | Bulkhead - Front Side Nut | 6 | UL94 V-0 | Brass | Receptacle, Female Sockets | Bronze | IP50 | -55 °C | 250 °C | Gold | Crimp | Chrome | 59 Áin | 1.5 Ám | Silver | Push-Pull | G | Metal | Shielded | 12 A | ||
LEMO EEG.2B.318.CYM | 318 | Polyetheretherketone (PEEK) | Bulkhead - Front Side Nut | 18 | UL94 V-0 | Brass | Receptacle, Female Sockets | Bronze | IP50 | -55 °C | 250 °C | Gold | Crimp | Chrome | 59 Áin | 1.5 Ám | Silver | Push-Pull | G | Metal | Shielded | 5.5 Amps | ||
LEMO EEG.2B.305.CLL | 305 | Polyetheretherketone (PEEK) | Bulkhead - Front Side Nut | UL94 V-0 | Brass | Receptacle, Female Sockets | Bronze | IP50 | -55 °C | 250 °C | Gold | Chrome | 59 Áin | 1.5 Ám | Silver | Push-Pull | G | Metal | Shielded | 14 A | ||||
LEMO EEG.2B.302.CLL | 302 | Polyetheretherketone (PEEK) | Bulkhead - Front Side Nut | 2 | UL94 V-0 | Brass | Receptacle, Female Sockets | Bronze | IP50 | -55 °C | 250 °C | Gold | Chrome | 59 Áin | 1.5 Ám | Silver | Push-Pull | G | Metal | Shielded | 25 A | |||
LEMO EEG.2B.319.CLV | 319 | Polyetheretherketone (PEEK) | Bulkhead - Front Side Nut | 19 | UL94 V-0 | Brass | Receptacle, Female Sockets | Bronze | IP50 | -55 °C | 250 °C | Gold | Solder | Chrome | 59 Áin | 1.5 Ám | Silver | Push-Pull | G | Metal | Shielded | 5 A | Panel Mount, Right Angle, Through Hole | |
LEMO EEG.2B.312.CLL | 312 | Polyetheretherketone (PEEK) | Bulkhead - Front Side Nut | 12 | UL94 V-0 | Brass | Receptacle, Female Sockets | Bronze | IP50 | -55 °C | 250 °C | Gold | Chrome | 59 Áin | 1.5 Ám | Silver | Push-Pull | G | Metal | Shielded | 7 A | |||
LEMO EEG.2B.318.CLNY | 318 | Polyetheretherketone (PEEK) | Bulkhead - Front Side Nut | 18 | UL94 V-0 | Brass | Receptacle, Female Sockets | Bronze | IP50 | -55 °C | 250 °C | Gold | Solder | Chrome | 59 Áin | 1.5 Ám | Silver | Push-Pull | G | Metal | Shielded | 5.5 Amps | Panel Mount, Through Hole | |
LEMO EEG.2B.303.CLN | 303 | Polyetheretherketone (PEEK) | Bulkhead - Front Side Nut | UL94 V-0 | Brass | Receptacle, Female Sockets | Bronze | IP50 | -55 °C | 250 °C | Gold | Solder | Chrome | 59 Áin | 1.5 Ám | Silver | Push-Pull | G | Metal | Shielded | 17 A | Panel Mount, Through Hole | ||
LEMO EEG.2B.307.CLL | 307 | Polyetheretherketone (PEEK) | Bulkhead - Front Side Nut | 7 | UL94 V-0 | Brass | Receptacle, Female Sockets | Bronze | IP50 | -55 °C | 250 °C | Gold | Chrome | 59 Áin | 1.5 Ám | Silver | Push-Pull | G | Metal | Shielded | 11 A | |||
LEMO EEG.2B.308.CLN | 308 | Polyetheretherketone (PEEK) | Bulkhead - Front Side Nut | 8 | UL94 V-0 | Brass | Receptacle, Female Sockets | Bronze | IP50 | -55 °C | 250 °C | Gold | Solder | Chrome | 59 Áin | 1.5 Ám | Silver | Push-Pull | G | Metal | Shielded | 10 A | Panel Mount, Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 63.31 | |
| 10 | $ 58.09 | |||
| 25 | $ 55.86 | |||
| 50 | $ 54.00 | |||
| 100 | $ 51.02 | |||
Description
General part information
EEG.2B Series
12 Position Circular Connector Receptacle, Female Sockets Solder Cup
