EEG.2B.307.CLL

Active

LEMO

CONN RCPT FMALE 7P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EEG.2B.307.CLL

Active

LEMO

CONN RCPT FMALE 7P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 68.22
		10	$ 52.94
		25	$ 48.10
		50	$ 44.83
		100	$ 41.88
		250	$ 38.51

Description

General part information

EEG.2B Series

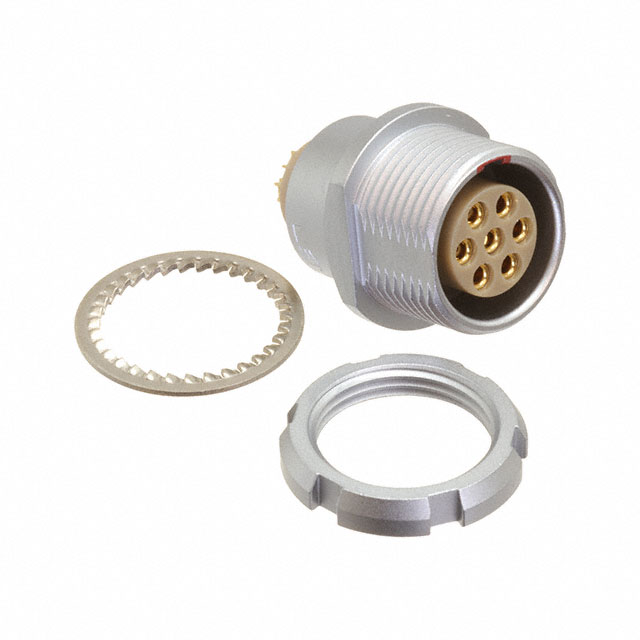

7 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EEG.2B.307.CLL	EEG.2B Series

Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	11 A	1.5 - 25 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	-	Through Hole, Right Angle, Panel Mount
Number of Positions	7	2 - 26
Number of Positions	-	16
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	307	302 - 332
Shielding	Shielded	Shielded
Termination	-	Crimp, Solder

EEG.2B Series

CONN RCPT FMALE 6POS GOLD CRIMP

Part	Shell Size - Insert	Insert Material	Mounting Feature	Number of Positions	Material Flammability Rating	Shell Material	Connector Type	Contact Material	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Termination	Shell Finish	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Fastening Type	Orientation	Primary Material	Shielding	Current Rating (Amps)	Mounting Type
LEMO EEG.2B.306.CYM	306	Polyetheretherketone (PEEK)	Bulkhead - Front Side Nut	6	UL94 V-0	Brass	Receptacle, Female Sockets	Bronze	IP50	-55 °C	250 °C	Gold	Crimp	Chrome	59 Áin	1.5 Ám	Silver	Push-Pull	G	Metal	Shielded	12 A
LEMO EEG.2B.318.CYM	318	Polyetheretherketone (PEEK)	Bulkhead - Front Side Nut	18	UL94 V-0	Brass	Receptacle, Female Sockets	Bronze	IP50	-55 °C	250 °C	Gold	Crimp	Chrome	59 Áin	1.5 Ám	Silver	Push-Pull	G	Metal	Shielded	5.5 Amps
LEMO EEG.2B.305.CLL	305	Polyetheretherketone (PEEK)	Bulkhead - Front Side Nut		UL94 V-0	Brass	Receptacle, Female Sockets	Bronze	IP50	-55 °C	250 °C	Gold		Chrome	59 Áin	1.5 Ám	Silver	Push-Pull	G	Metal	Shielded	14 A
LEMO EEG.2B.302.CLL	302	Polyetheretherketone (PEEK)	Bulkhead - Front Side Nut	2	UL94 V-0	Brass	Receptacle, Female Sockets	Bronze	IP50	-55 °C	250 °C	Gold		Chrome	59 Áin	1.5 Ám	Silver	Push-Pull	G	Metal	Shielded	25 A
LEMO EEG.2B.319.CLV	319	Polyetheretherketone (PEEK)	Bulkhead - Front Side Nut	19	UL94 V-0	Brass	Receptacle, Female Sockets	Bronze	IP50	-55 °C	250 °C	Gold	Solder	Chrome	59 Áin	1.5 Ám	Silver	Push-Pull	G	Metal	Shielded	5 A	Panel Mount, Right Angle, Through Hole
LEMO EEG.2B.312.CLL	312	Polyetheretherketone (PEEK)	Bulkhead - Front Side Nut	12	UL94 V-0	Brass	Receptacle, Female Sockets	Bronze	IP50	-55 °C	250 °C	Gold		Chrome	59 Áin	1.5 Ám	Silver	Push-Pull	G	Metal	Shielded	7 A
LEMO EEG.2B.318.CLNY	318	Polyetheretherketone (PEEK)	Bulkhead - Front Side Nut	18	UL94 V-0	Brass	Receptacle, Female Sockets	Bronze	IP50	-55 °C	250 °C	Gold	Solder	Chrome	59 Áin	1.5 Ám	Silver	Push-Pull	G	Metal	Shielded	5.5 Amps	Panel Mount, Through Hole
LEMO EEG.2B.303.CLN	303	Polyetheretherketone (PEEK)	Bulkhead - Front Side Nut		UL94 V-0	Brass	Receptacle, Female Sockets	Bronze	IP50	-55 °C	250 °C	Gold	Solder	Chrome	59 Áin	1.5 Ám	Silver	Push-Pull	G	Metal	Shielded	17 A	Panel Mount, Through Hole
LEMO EEG.2B.307.CLL	307	Polyetheretherketone (PEEK)	Bulkhead - Front Side Nut	7	UL94 V-0	Brass	Receptacle, Female Sockets	Bronze	IP50	-55 °C	250 °C	Gold		Chrome	59 Áin	1.5 Ám	Silver	Push-Pull	G	Metal	Shielded	11 A
LEMO EEG.2B.308.CLN	308	Polyetheretherketone (PEEK)	Bulkhead - Front Side Nut	8	UL94 V-0	Brass	Receptacle, Female Sockets	Bronze	IP50	-55 °C	250 °C	Gold	Solder	Chrome	59 Áin	1.5 Ám	Silver	Push-Pull	G	Metal	Shielded	10 A	Panel Mount, Through Hole
