GT10J312(Q)

Obsolete

Toshiba Semiconductor and Storage

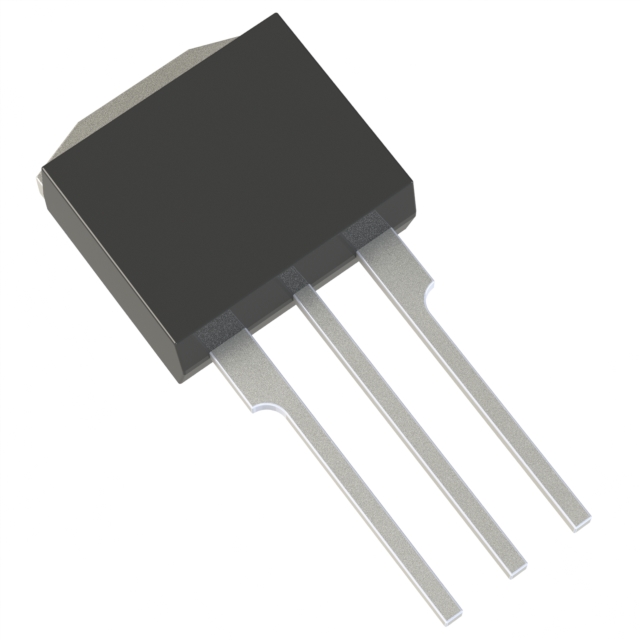

IGBT 600V 10A 60W TO220SM

Search across all available documentation for this part.

Obsolete

Toshiba Semiconductor and Storage

IGBT 600V 10A 60W TO220SM

Technical Specifications

Parameters and characteristics for this part

Specification	GT10J312(Q)

Current - Collector Pulsed (Icm)	20 A
Mounting Type	Through Hole
Operating Temperature	150 °C
Package / Case	TO-262AA, TO-262-3 Long Leads, I2PAK
Power - Max [Max]	60 W
Reverse Recovery Time (trr)	200 ns
Td (on/off) @ 25°C	400 ns
Test Condition	100 Ohm, 300 V, 15 V, 10 A
Vce(on) (Max) @ Vge, Ic	2.7 V
Voltage - Collector Emitter Breakdown (Max) [Max]	600 V

Part	Current - Collector Pulsed (Icm)	Td (on/off) @ 25°C	Vce(on) (Max) @ Vge, Ic	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature	Package / Case	Reverse Recovery Time (trr)	Test Condition	Mounting Type	Power - Max [Max]
Toshiba Semiconductor and Storage GT10J312(Q)	20 A	400 ns	2.7 V	600 V	150 °C	I2PAK TO-262-3 Long Leads TO-262AA	200 ns	10 A 15 V 100 Ohm 300 V	Through Hole	60 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IGBT 600 V 10 A 60 W Through Hole

Technical documentation and resources
