TMCM-1690-CAN-EVAL
ActiveEVALUATION BOARD FOR TMCM-1690-T
Deep-Dive with AI
Search across all available documentation for this part.

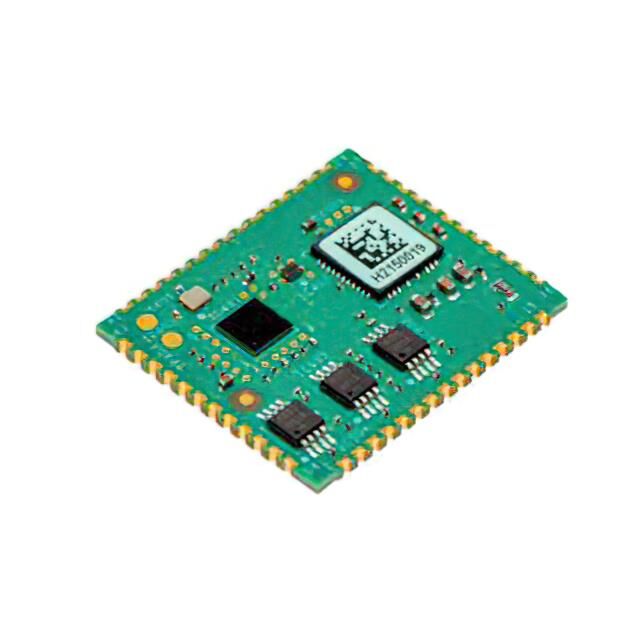

TMCM-1690-CAN-EVAL
ActiveEVALUATION BOARD FOR TMCM-1690-T
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TMCM-1690-CAN-EVAL |
|---|---|
| Contents | Board(s) |
| Embedded | False |
| Function | Motor Controller/Driver |
| Primary Attributes | Motors (BLDC) |
| Supplied Contents | Board(s) |
| Type | Power Management |
| Utilized IC / Part | TMCM-1690 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 133.24 | |
Description
General part information
TMCM-1690 Series
The TMCM-1690 is a single axis FOC servo controller gate driver module for 3-phase brushless direct current (BLDC) and DC motors with up to 1.5A gate drive current and +60V (+48 V nominal) supply. It offers universal asynchronous receiver-transmitter (UART) (RS232-/RS485-ready) interface, a controller area network (CAN) interface, and an optional SPI interface. TMCM-1690 supports incremental encoders, digital hall sensors, and absolute encoder as position feedback. The TMCM-1690 comes in three different firmware variants supporting CANopen, CANopen-over-EtherCAT (COE), and TMCL (Trinamic Motion Control Language).ApplicationsApplicationsRoboticsLaboratory AutomationManufacturingFactory AutomationServo DrivesMotorized Tables and ChairsIndustrial BLDC and DC Motor Drives
