CDBJFSC3650-G

Active

Comchip Technology

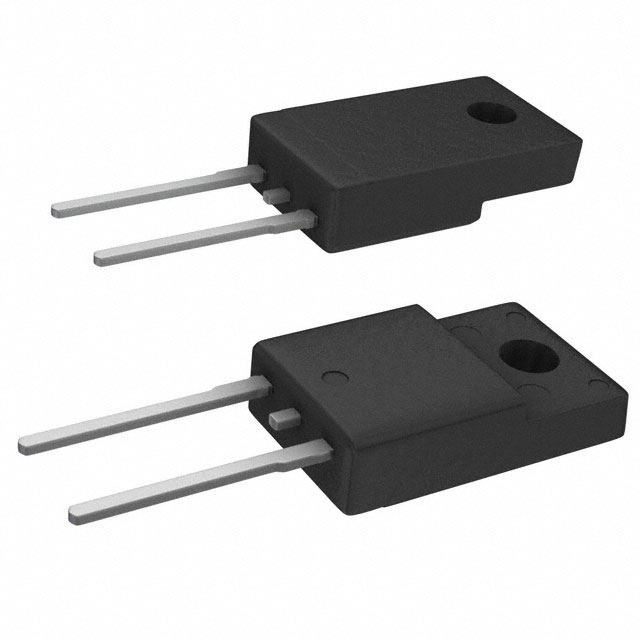

DIODE SIL CARBIDE 650V 3A TO220F

Search across all available documentation for this part.

Active

Comchip Technology

DIODE SIL CARBIDE 650V 3A TO220F

Technical Specifications

Parameters and characteristics for this part

Specification	CDBJFSC3650-G

Capacitance @ Vr, F	190 pF
Current - Average Rectified (Io)	3 A
Current - Reverse Leakage @ Vr	100 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	TO-220-2 Full Pack
Reverse Recovery Time (trr)	0 ns
Speed	No Recovery Time
Supplier Device Package	TO-220F
Technology	SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	650 V
Voltage - Forward (Vf) (Max) @ If	1.7 V

DIODE SIL CARBIDE 650V 3A TO220F

Part	Speed	Reverse Recovery Time (trr)	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Technology	Current - Reverse Leakage @ Vr	Capacitance @ Vr, F	Current - Average Rectified (Io)	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Supplier Device Package
Comchip Technology CDBJFSC3650-G	No Recovery Time	0 ns	650 V	1.7 V	Through Hole	SiC (Silicon Carbide) Schottky	100 µA	190 pF	3 A	175 ░C	-55 C	TO-220-2 Full Pack	TO-220F

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 650 V 3A Through Hole TO-220F
