EZ-195-SM-X
ActiveAmphenol Times Microwave Systems

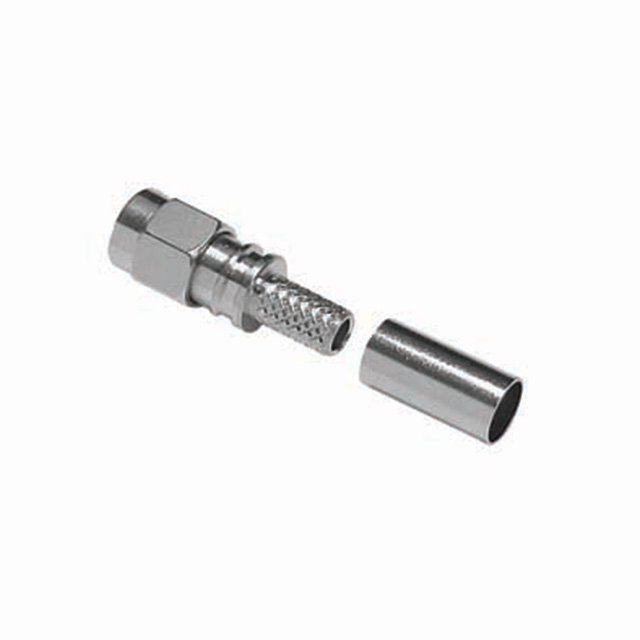

SMA-MALE (PLUG) CRIMP CONNECTOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EZ-195-SM-X
ActiveAmphenol Times Microwave Systems
SMA-MALE (PLUG) CRIMP CONNECTOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EZ-195-SM-X | EZ-195 Series |
|---|---|---|
| - | - | |
| Body Finish | White Bronze | Tin, White Bronze |
| Body Material | - | Brass |
| Cable Group | LMR-195 | LMR-200, LMR-195 |
| Center Contact Material | - | Beryllium Copper, Phosphor Bronze |
| Center Contact Plating | Gold | Gold, Silver |
| Connector Style | SMA | QN, SMA, TNC, UHF, 7/16 DIN, 4.3/10, BNC, N Type, RP-TNC |
| Connector Type | Male Pin, Plug | Male Pin, Plug, Female Socket, Jack |
| Contact Termination | Push On | Crimp, Push On, Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE), Polyoxymethylene (POM) |
| Fastening Type | - | Snap-On, Bayonet Lock |
| Frequency - Max [Max] | 6000 MHz | 3 - 6000 MHz |
| Housing Color | Silver | Silver |
| Impedance | 50 Ohms | 50 Ohms |
| Includes | - | 1 Connector, 1 Ferrule |
| Mating Cycles | - | 500 |
| Mounting Feature | - | Bulkhead - Front Side Nut |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 - 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Shield Termination | Crimp | Crimp, Clamp |
| Voltage Rating | - | 1000 VDC |
EZ-195 Series
QMA-FEMALE (PLUG) CRIMP CONNECTO
| Part | Shield Termination | Number of Ports | Center Contact Plating | Includes | Mounting Type | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Housing Color | Center Contact Material | Body Finish | Cable Group | Connector Style | Body Material | Frequency - Max [Max] | Connector Type | Impedance | Contact Termination | Mating Cycles | Mounting Feature | Fastening Type | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Times Microwave Systems EZ-195-QF-X | Crimp | 1 | Gold | 1 Connector, 1 Ferrule | Free Hanging (In-Line) | Polytetrafluoroethylene (PTFE) | 125 °C | -40 °C | Silver | Beryllium Copper | Tin | LMR-195, LMR-200 | QN | Brass | 6000 MHz | Male Pin, Plug | 50 Ohms | Crimp | ||||
Amphenol Times Microwave Systems EZ-195-SM-RA-X | Crimp | SMA | Male Pin, Plug | Crimp | ||||||||||||||||||
Amphenol Times Microwave Systems EZ-195/200-TF-BH-X | Crimp | 1 | Gold | Polytetrafluoroethylene (PTFE) | 125 °C | -40 °C | Silver | Beryllium Copper | Tin | LMR-195, LMR-200 | TNC | Brass | 8 GHz | Female Socket, Jack | 50 Ohms | Push On | 500 | Bulkhead - Front Side Nut | ||||
Amphenol Times Microwave Systems EZ-195/200-QNM-RA-X | Crimp | 1 | Gold | 1 Connector, 1 Ferrule | Free Hanging (In-Line) | Polytetrafluoroethylene (PTFE) | 125 °C | -40 °C | Silver | Beryllium Copper | Tin | LMR-195, LMR-200 | QN | Brass | 6000 MHz | Female Socket, Jack | 50 Ohms | Crimp | Snap-On | |||
Amphenol Times Microwave Systems EZ-195/200-TM-RA-X | ||||||||||||||||||||||
Amphenol Times Microwave Systems EZ-195/200-UM-RA-X | Crimp | 1 | Silver | Free Hanging (In-Line), Right Angle | Polytetrafluoroethylene (PTFE) | 125 °C | -40 °C | Silver | Phosphor Bronze | Tin | LMR-195, LMR-200 | UHF | Brass | 3 GHz | Male Pin, Plug | 50 Ohms | Solder | 500 | ||||
Amphenol Times Microwave Systems EZ-195/200-NF-X | Crimp | 1 | Gold | 1 Connector, 1 Ferrule | Free Hanging (In-Line) | 85 °C | -40 °C | Silver | LMR-195, LMR-200 | 7/16 DIN | 7.5 GHz | Male Pin, Plug | 50 Ohms | Crimp | ||||||||
Amphenol Times Microwave Systems EZ-195/200-UM-X | Crimp | 1 | Silver | Free Hanging (In-Line) | Polyoxymethylene (POM) | 125 °C | -40 °C | Silver | Phosphor Bronze | Tin | LMR-195, LMR-200 | UHF | Brass | 3 GHz | Male Pin, Plug | 50 Ohms | Push On | 500 | ||||
Amphenol Times Microwave Systems EZ-195/200-4310M-RA-X | Clamp | 1 | Gold | 1 Connector, 1 Ferrule | Free Hanging (In-Line) | 85 °C | -40 °C | Silver | LMR-195, LMR-200 | 4.3/10 | 6000 MHz | Male Pin, Plug | 50 Ohms | Crimp | ||||||||
Amphenol Times Microwave Systems EZ-195/200-QNM-X | Crimp | 1 | Gold | 1 Connector, 1 Ferrule | Free Hanging (In-Line), Right Angle | Polytetrafluoroethylene (PTFE) | 125 °C | -40 °C | Silver | Beryllium Copper | Tin | LMR-195, LMR-200 | QN | Brass | 6000 MHz | Male Pin, Plug | 50 Ohms | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 12.13 | |
| 10 | $ 10.75 | |||
| 25 | $ 10.34 | |||
| 50 | $ 9.93 | |||
| 100 | $ 9.37 | |||
| 250 | $ 8.55 | |||
| 500 | $ 8.00 | |||
| 1000 | $ 7.33 | |||
Description
General part information
EZ-195 Series
SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Push On
