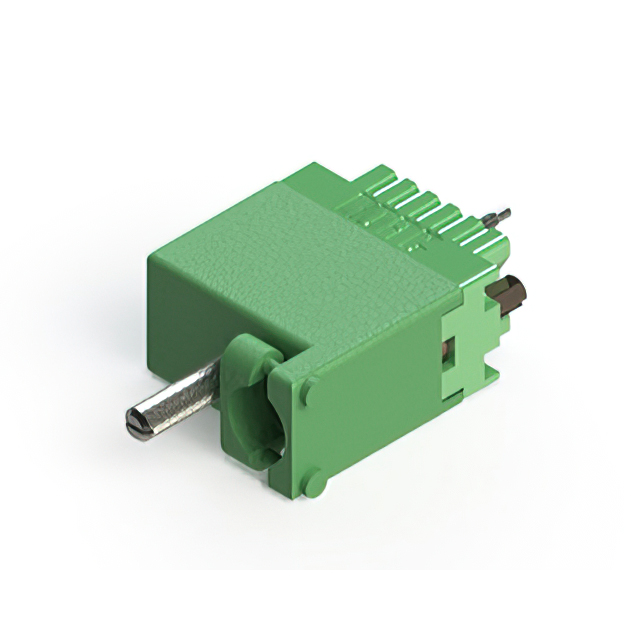

516-020-520-211

Active

EDAC Inc.

516 SERIES RACK & PANEL CONNECTO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

516-020-520-211

Active

EDAC Inc.

516 SERIES RACK & PANEL CONNECTO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	516-020-520-211

Color	Green
Connector Style	Rack and Panel
Connector Type	Housing for Non-Gendered Contacts
Connector Usage	Receptacle
Features	Jackscrew, Mating Guide, Backshell
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	20
Pitch [x]	0.15 in
Pitch [x]	3.81 mm

516-020 Series

...

Part	Mounting Type	Note	Color	Connector Style	Connector Type	Pitch [x]	Pitch [x]	Connector Usage	Features	Number of Positions
EDAC Inc. 516-020-520-211	Free Hanging (In-Line)	Contacts Not Included	Green	Rack and Panel	Housing for Non-Gendered Contacts	0.15 in	3.81 mm	Receptacle	Backshell Jackscrew Mating Guide	20
EDAC Inc. 516-020-500-266	Free Hanging (In-Line)	Contacts Not Included	Green	Rack and Panel	Housing for Non-Gendered Contacts	0.15 in	3.81 mm	Receptacle	Backshell Jackscrew Socket	20
EDAC Inc. 516-020-500-365	Free Hanging (In-Line)	Contacts Not Included	Gray	Rack and Panel	Housing for Non-Gendered Contacts	0.15 in	3.81 mm	Plug	Backshell Jackscrew	20
EDAC Inc. 516-020-542-301		Contacts Not Included	Gray	Rack and Panel	Housing for Non-Gendered Contacts	0.15 in	3.81 mm	Plug	Guide Pin Jackscrew	20
EDAC Inc. 516-020-520-615	Free Hanging (In-Line)	Contacts Not Included	Green	Rack and Panel	Housing for Non-Gendered Contacts	0.15 in	3.81 mm	Receptacle	Backshell Jackscrew	20
EDAC Inc. 516-020-520-125	Free Hanging (In-Line)	Contacts Not Included	Green	Rack and Panel	Housing for Non-Gendered Contacts	0.15 in	3.81 mm	Plug	Backshell Jackscrew	20
EDAC Inc. 516-020-520-162	Free Hanging (In-Line)	Contacts Not Included	Green	Rack and Panel	Housing for Non-Gendered Contacts	0.15 in	3.81 mm	Plug	Backshell Guide Pin Jackscrew Socket	20
EDAC Inc. 516-020-541-601		Contacts Not Included	Green	Rack and Panel	Housing for Non-Gendered Contacts	0.15 in	3.81 mm	Receptacle	Jackscrew Mating Guide	20
EDAC Inc. 516-020-520-126	Free Hanging (In-Line)	Contacts Not Included	Green	Rack and Panel	Housing for Non-Gendered Contacts	0.15 in	3.81 mm	Plug	Backshell Jackscrew Socket	20
EDAC Inc. 516-020-500-666	Free Hanging (In-Line)	Contacts Not Included	Green	Rack and Panel	Housing for Non-Gendered Contacts	0.15 in	3.81 mm	Receptacle	Backshell Jackscrew Socket	20

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 40.00

Description

General part information

516-020 Series

20 Position Housing for Non-Gendered Contacts Connector Green Free Hanging (In-Line) Rack and Panel
