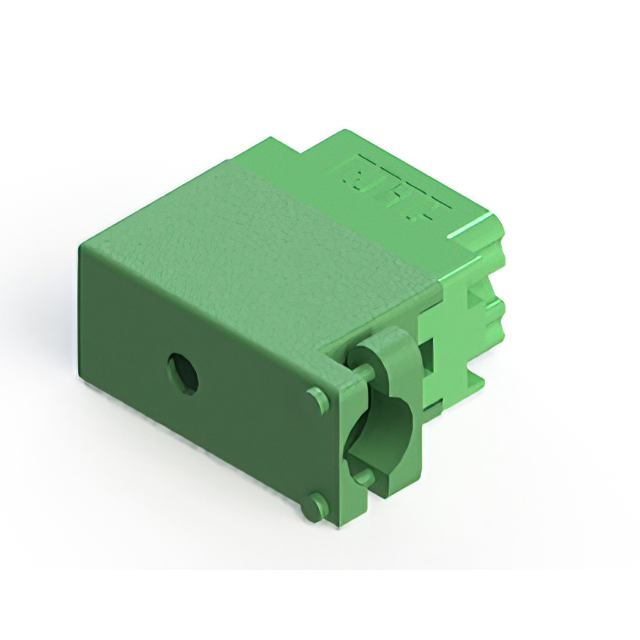

516-020-520-126
ActiveEDAC Inc.
516 SERIES RACK & PANEL CONNECTO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
516-020-520-126
ActiveEDAC Inc.
516 SERIES RACK & PANEL CONNECTO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 516-020-520-126 |
|---|---|
| Color | Green |
| Connector Style | Rack and Panel |
| Connector Type | Housing for Non-Gendered Contacts |
| Connector Usage | Plug |
| Features | Backshell, Jackscrew Socket |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 20 |
| Pitch [x] | 0.15 in |
| Pitch [x] | 3.81 mm |
516-020 Series
...
| Part | Mounting Type | Note | Color | Connector Style | Connector Type | Pitch [x] | Pitch [x] | Connector Usage | Features | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Free Hanging (In-Line) | Contacts Not Included | Green | Rack and Panel | Housing for Non-Gendered Contacts | 0.15 in | 3.81 mm | Receptacle | Backshell Jackscrew Mating Guide | 20 |
EDAC Inc. | Free Hanging (In-Line) | Contacts Not Included | Green | Rack and Panel | Housing for Non-Gendered Contacts | 0.15 in | 3.81 mm | Receptacle | Backshell Jackscrew Socket | 20 |
EDAC Inc. | Free Hanging (In-Line) | Contacts Not Included | Gray | Rack and Panel | Housing for Non-Gendered Contacts | 0.15 in | 3.81 mm | Plug | Backshell Jackscrew | 20 |
EDAC Inc. | Contacts Not Included | Gray | Rack and Panel | Housing for Non-Gendered Contacts | 0.15 in | 3.81 mm | Plug | Guide Pin Jackscrew | 20 | |
EDAC Inc. | Free Hanging (In-Line) | Contacts Not Included | Green | Rack and Panel | Housing for Non-Gendered Contacts | 0.15 in | 3.81 mm | Receptacle | Backshell Jackscrew | 20 |
EDAC Inc. | Free Hanging (In-Line) | Contacts Not Included | Green | Rack and Panel | Housing for Non-Gendered Contacts | 0.15 in | 3.81 mm | Plug | Backshell Jackscrew | 20 |
EDAC Inc. | Free Hanging (In-Line) | Contacts Not Included | Green | Rack and Panel | Housing for Non-Gendered Contacts | 0.15 in | 3.81 mm | Plug | Backshell Guide Pin Jackscrew Socket | 20 |
EDAC Inc. | Contacts Not Included | Green | Rack and Panel | Housing for Non-Gendered Contacts | 0.15 in | 3.81 mm | Receptacle | Jackscrew Mating Guide | 20 | |
EDAC Inc. | Free Hanging (In-Line) | Contacts Not Included | Green | Rack and Panel | Housing for Non-Gendered Contacts | 0.15 in | 3.81 mm | Plug | Backshell Jackscrew Socket | 20 |
EDAC Inc. | Free Hanging (In-Line) | Contacts Not Included | Green | Rack and Panel | Housing for Non-Gendered Contacts | 0.15 in | 3.81 mm | Receptacle | Backshell Jackscrew Socket | 20 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 33.36 | |
Description
General part information
516-020 Series
20 Position Housing for Non-Gendered Contacts Connector Green Free Hanging (In-Line) Rack and Panel
